Text version of the page
| | |||||||
| | |||||||

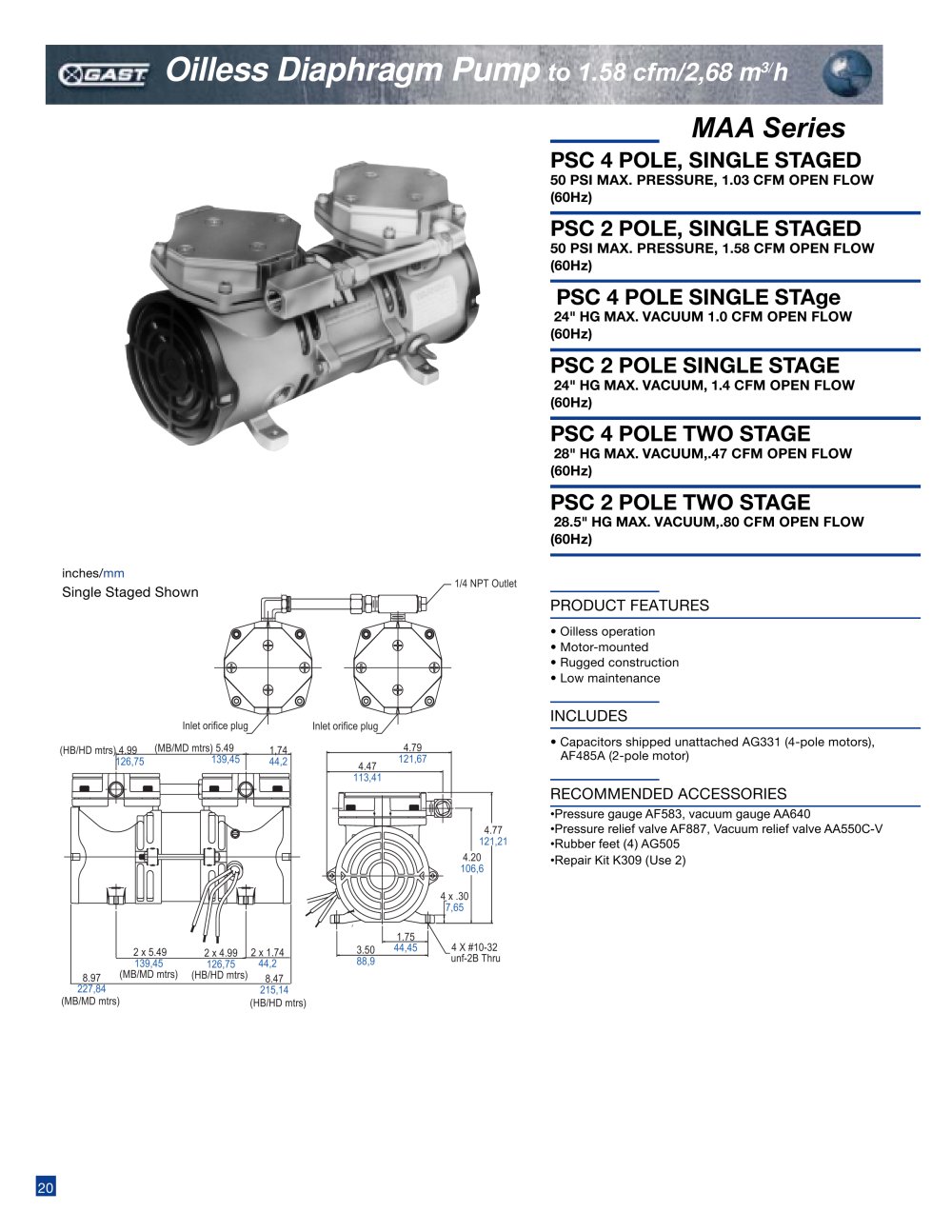

| | c )Mxr Oilless Diaphragm Pump to i.58 cfm/2,68 m3/h | j ^ | |||||
| | |||||||
| MAA Series | |||||||
| | |||||||
| psc 4 pole, single staged 50 psi max. pressure, 1.03 cfm open flow (60Hz) psc 2 pole, single staged 50 psi max. pressure, 1.58 cfm open flow (60Hz) PSC 4 POLE SINGLE STAge 24" hg max. vacuum 1.0 cfm open flow (60Hz) | |||||||
| | |||||||
| psc 2 pole single stage 24" hg max. vacuum, 1.4 cfm open flow (60Hz) psc 4 pole two stage 28" hg max. vacuum,.47 cfm open flow (60Hz) psc 2 pole two stage 28.5" hg max. vacuum,.80 cfm open flow (60Hz) | |||||||
| | |||||||
| inches/mm Single Staged Shown | 1/4 NPT Outlet | PRODUCT FEATURES | |||||
| | |||||||
| • Oilless operation • Motor-mounted • Rugged construction • Low maintenance INCLUDES | |||||||
| | |||||||
| (HB/HD mtrs) | • Capacitors shipped unattached AG331 (4-pole motors), AF485A (2-pole motor) | ||||||
| | |||||||
| RECOMMENDED ACCESSORIES | |||||||
| | |||||||
| •Pressure gauge AF583, vacuum gauge AA640 •Pressure relief valve AF887, Vacuum relief valve AA550C-V •Rubber feet (4) AG505 •Repair Kit K309 (Use 2) | |||||||
| | |||||||
| 139,45 (MB/MD mtrs) | 126,75 (HB/HD mtrs) | ||||||
| | |||||||
| 227,84 (MB/MD mtrs) | 215,14 (HB/HD mtrs) | ||||||
| | |||||||
| 20 | |||||||
| | |||||||
