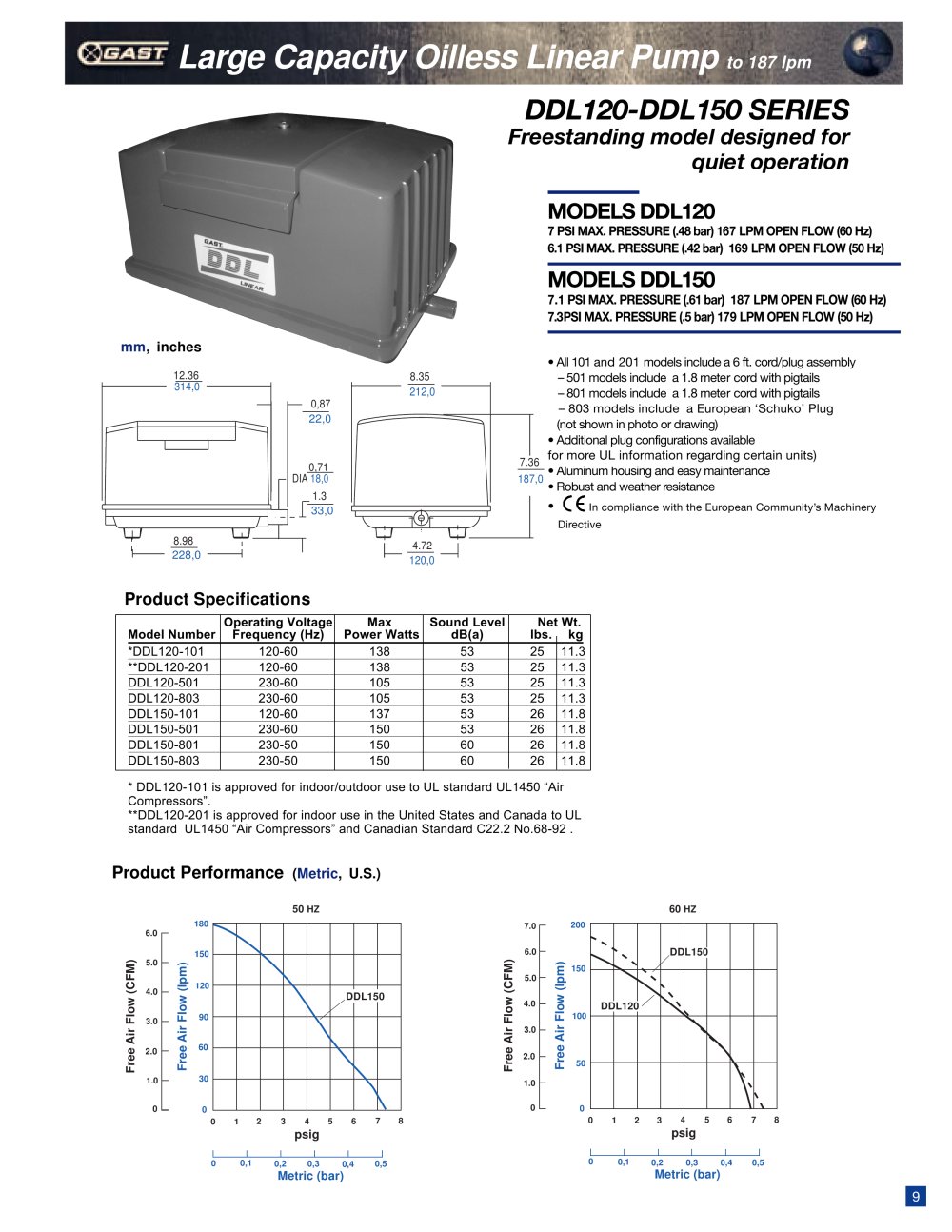

№^¡0t Large Capacity Oilless Linear Pump to is? ipm

DDL120-DDL150 SERIES

Freestanding model designed for

quiet operation

models ddl120

7 PSI MAX. PRESSURE (.48 bar) 167 LPM OPEN FLOW (60 Hz) 6.1 PSI MAX. PRESSURE (.42 bar) 169 LPM OPEN FLOW (50 Hz)

models ddl150

7.1 PSI MAX. PRESSURE (.61 bar) 187 LPM OPEN FLOW (60 Hz) 7.3PSI MAX. PRESSURE (.5 bar) 179 LPM OPEN FLOW (50 Hz)

7.36 187,0

• All 101 and 201 models include a 6 ft. cord/plug assembly

- 501 models include a 1.8 meter cord with pigtails

- 801 models include a 1.8 meter cord with pigtails

- 803 models include a European 'Schuko' Plug (not shown in photo or drawing)

• Additional plug configurations available

for more UL information regarding certain units)

• Aluminum housing and easy maintenance

• Robust and weather resistance

• c £ In compliance with the European Community's Machinery Directive

4.72 120,0

Product Specifications


Model Number	Operating Voltage Frequency (Hz)	Max Power Watts	Sound Level dB(a)	Net lbs.	Wt. i kg
*DDL120-101	120-60	138	53	25	11.3
**DDL120-201	120-60	138	53	25	11.3
DDL120-501	230-60	105	53	25	11.3
DDL120-803	230-60	105	53	25	11.3
DDL150-101	120-60	137	53	26	11.8
DDL150-501	230-60	150	53	26	11.8
DDL150-801	230-50	150	60	26	11.8
DDL150-803	230-50	150	60	26	11.8

* DDL120-101 is approved for indoor/outdoor use to UL standard UL1450 "Air Compressors".

**DDL120-201 is approved for indoor use in the United States and Canada to UL standard UL1450 "Air Compressors" and Canadian Standard C22.2 No.68-92 .

Product Performance (Metric, U.S.)
