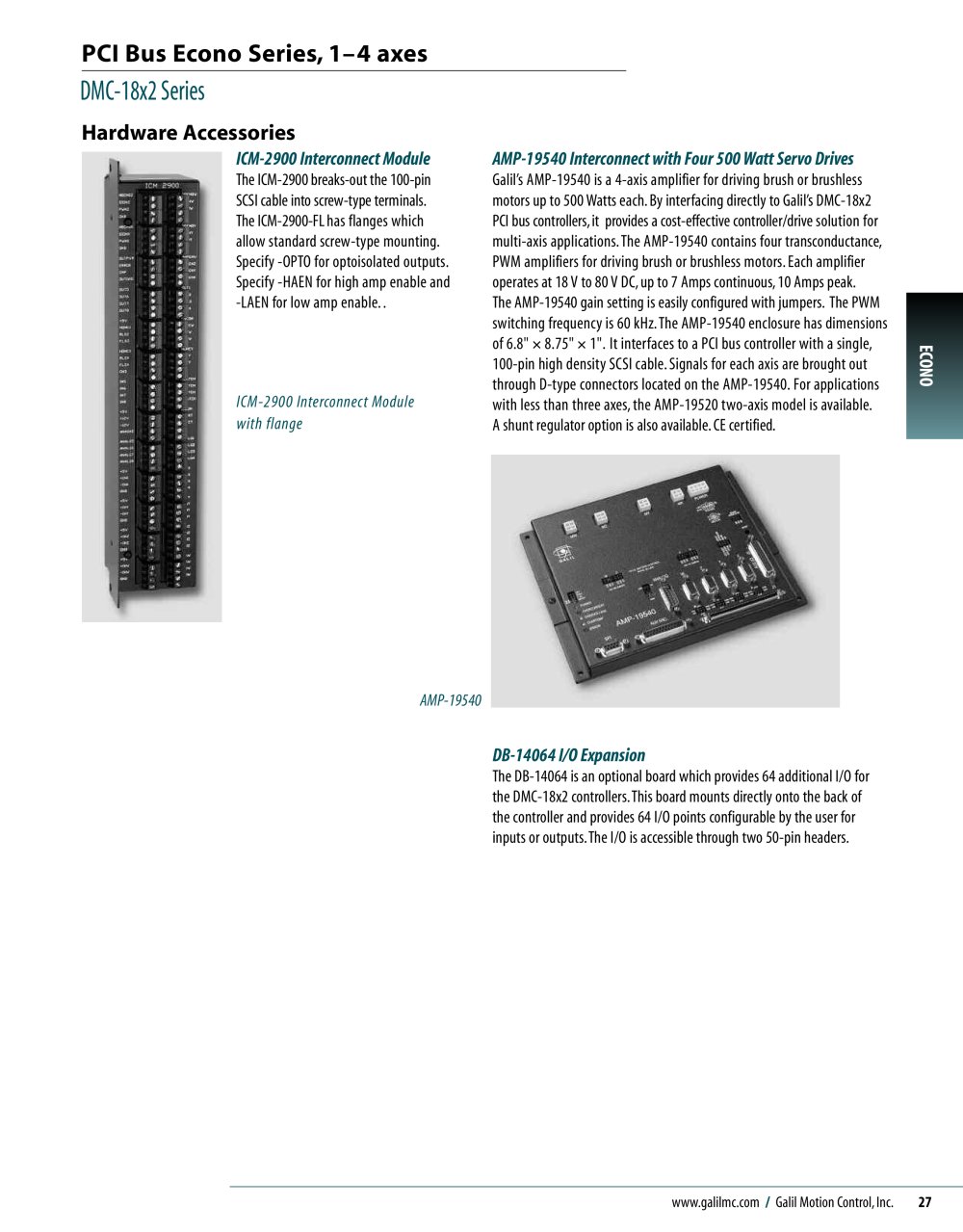

PCIBus Econo Series,1–4 axes

Galil Entire Catalog - 14278 DMC-18x2 Series

Hardware Accessories

ICM-2900 Interconnect Module AMP-19540 Interconnect with Four 500 Watt Servo Drives

The ICM-2900 breaks-out the 100-pin SCSI cable into screw-type terminals. The ICM-2900-FLhas flanges which allow standard screw-type mounting. Specify -OPTO for optoisolated outputs. Specify -HAEN for high amp enable and -LAEN for low amp enable.. Galil’s AMP-19540 is a 4-axis amplifier for driving brush or brushless motors up to 500 Watts each.By interfacing directly to Galil’s DMC-18x2 PCI bus controllers,it provides a cost-effective controller/drive solution formulti-axis applications.The AMP-19540 contains four transconductance,PWM amplifiers for driving brush or brushless motors.Each amplifier operates at 18 V to 80 V DC,up to 7 Amps continuous,10 Amps peak.The AMP-19540 gain setting is easily configured with jumpers.The PWM switching frequency is 60 kHz.The AMP-19540 enclosure has dimensions of 6.8" × 8.75" × 1".It interfaces to a PCI bus controller with a single,100-pin high density SCSI cable.Signals for each axis are brought out through D-type connectors located on the AMP-19540.For applications with less than three axes,the AMP-19520 two-axis model is available. Ashunt regulator option is also available.CE certified. ICM-2900 Interconnect Modulewith flange
ECONO AMP-19540

DB-14064 I/O Expansion

The DB-14064 is an optional board which provides 64 additional I/O forthe DMC-18x2 controllers.This board mounts directly onto the back of the controller and provides 64 I/O points configurable by the user for inputs or outputs.The I/O is accessible through two 50-pin headers.
www.galilmc.com / Galil Motion Control,Inc. 27
