Table of Contents

1COMPANY AND PRODUCT OVERVIEW6ACCELERA CONTROLLERS & DRIVES

6 Introduction 7 DMC-40x0 Ethernet/RS232 Accelera Series,1–8 axes 13 DMC-18x6 PCI Bus Accelera Series,1–8 axes

17ECONO CONTROLLERS & DRIVES

17 Introduction 18 DMC-21x3 Ethernet/RS232 Econo Series,1–8 axes 25 DMC-18x2 PCI Bus Econo Series,1–4 axes

29SINGLE-AXIS CONTROLLERS

29 Introduction 30 DMC-14x5 Ethernet/RS232 Single-Axis Series 34 CDS-3310 Ethernet/RS232 Econo 1-axis Controller & Drive

38POCKET PLC SERIES

38 Introduction 39 RIO-47xxx Ethernet/RS232 Pocket PLC

44SOFTWARE TOOLS

44 GalilTools 46 ActiveX Tool Kit 47 AutoCAD DXF File Translator 48 Other Software

50OTHER

50 Optima Controllers Overview (prior generation)

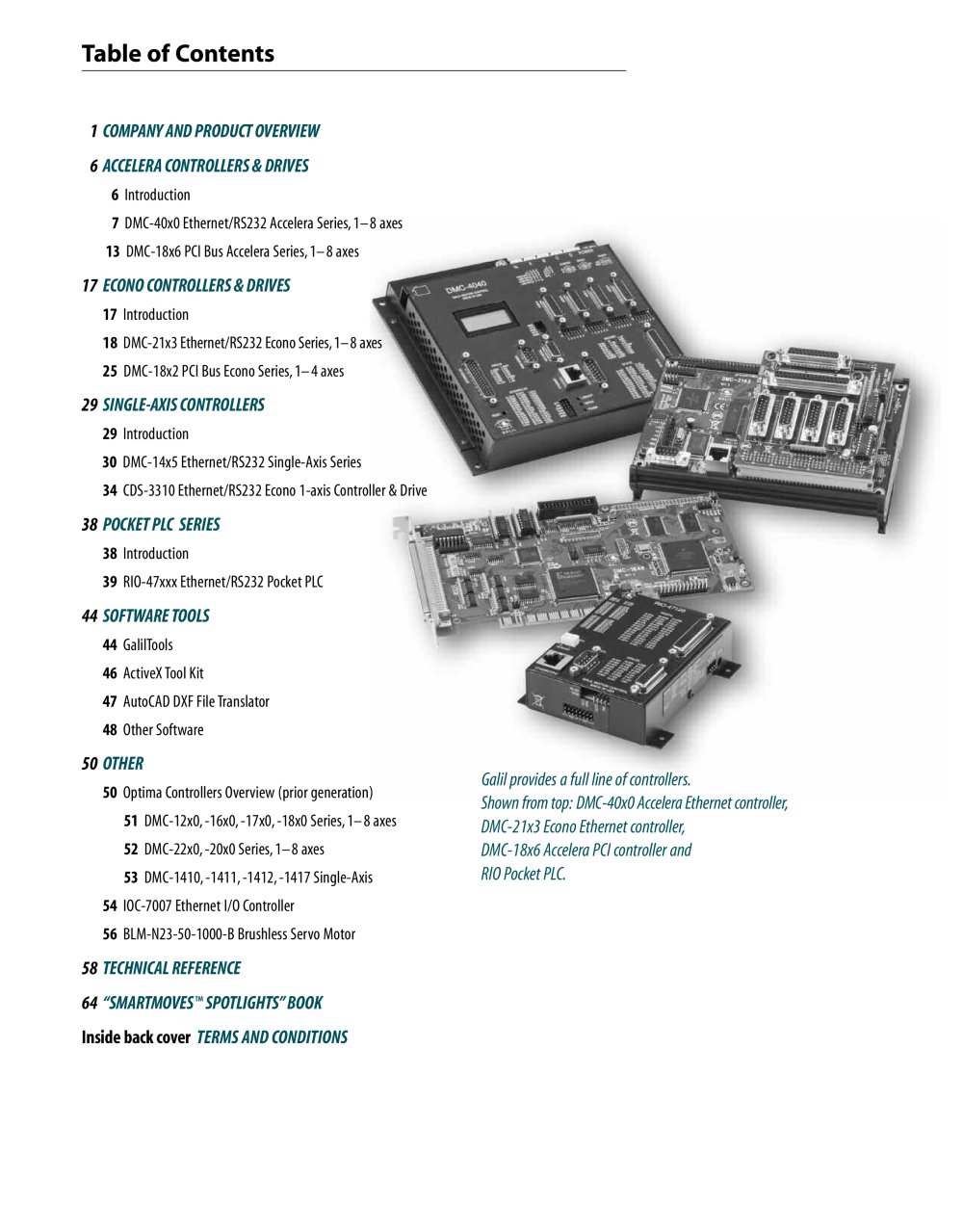

Galil provides a full line of controllers.Shown from top:DMC-40x0 Accelera Ethernet controller,

51 DMC-12x0,-16x0,-17x0,-18x0 Series,1–8 axes

DMC-21x3 Econo Ethernet controller, DMC-18x6 Accelera PCI controller and RIO Pocket PLC.

52 DMC-22x0,-20x0 Series,1–8 axes 53 DMC-1410,-1411,-1412,-1417 Single-Axis 54 IOC-7007 Ethernet I/O Controller 56 BLM-N23-50-1000-B Brushless Servo Motor

58TECHNICAL REFERENCE64“SMARTMOVES

™

SPOTLIGHTS”BOOK Inside back cover TERMS AND CONDITIONS
