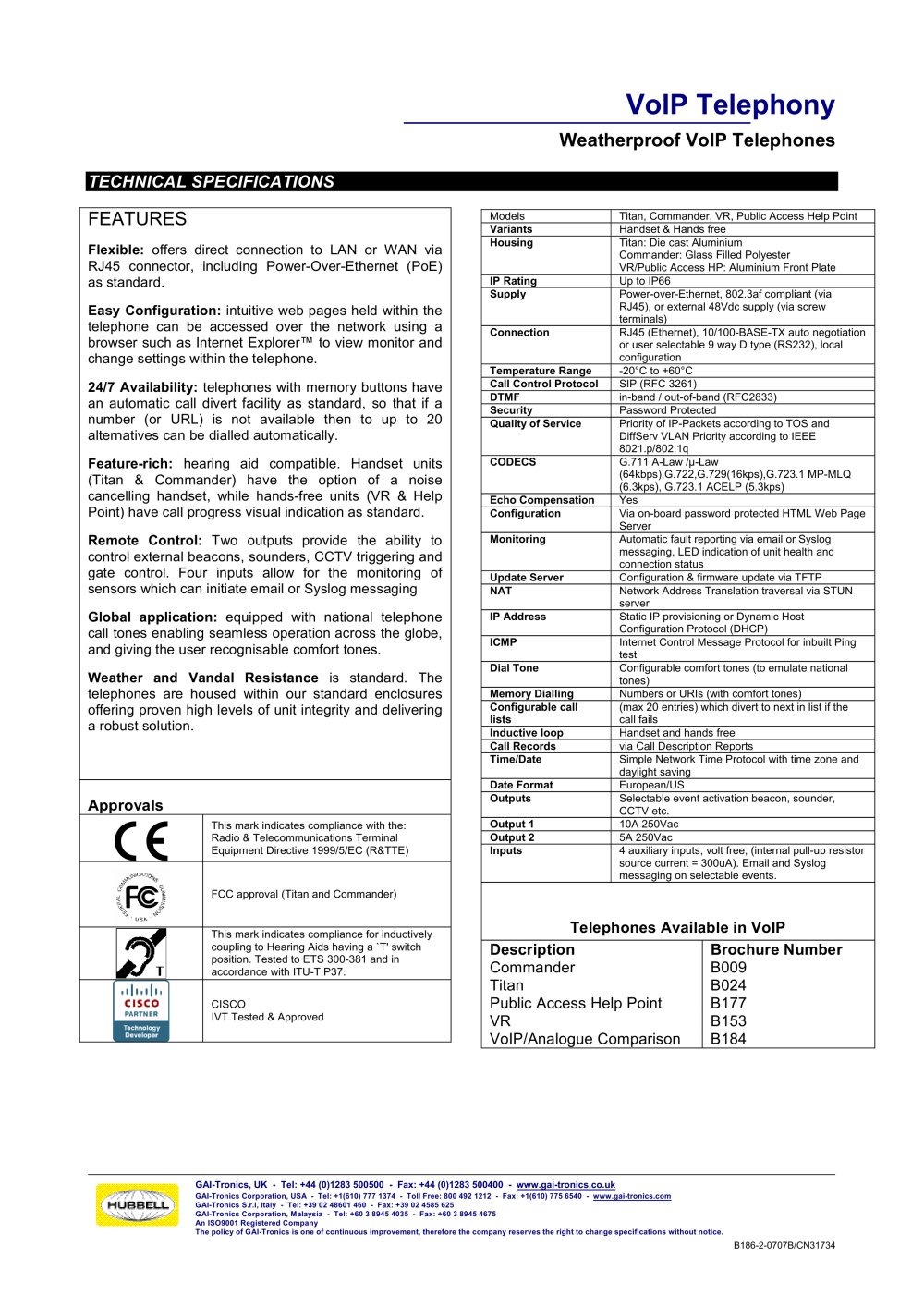

VoIP Telephony Weatherproof VoIP Telephones GAI-Tronics, UK - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics Corporation, USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 775 6540 - www.gai-tronics.com GAI-Tronics S.r.l, Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 GAI-Tronics Corporation, Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 An ISO9001 Registered Company The policy of GAI-Tronics is one of continuous improvement, therefore the company reserves the right to change specifications without notice. B186-2-0707B/CN31734 TECHNICAL SPECIFICATIONS FEATURES Flexible: offers direct connection to LAN or WAN via RJ45 connector, including Power-Over-Ethernet (PoE) as standard. Easy Configuration: intuitive web pages held within the telephone can be accessed over the network using a browser such as Internet Explorer™ to view monitor and change settings within the telephone. 24/7 Availability: telephones with memory buttons have an automatic call divert facility as standard, so that if a number (or URL) is not available then to up to 20 alternatives can be dialled automatically. Feature-rich: hearing aid compatible. Handset units (Titan & Commander) have the option of a noise cancelling handset, while hands-free units (VR & Help Point) have call progress visual indication as standard. Remote Control: Two outputs provide the ability to control external beacons, sounders, CCTV triggering and gate control. Four inputs allow for the monitoring of sensors which can initiate email or Syslog messaging Global application: equipped with national telephone call tones enabling seamless operation across the globe, and giving the user recognisable comfort tones. Weather and Vandal Resistance is standard. The telephones are housed within our standard enclosures offering proven high levels of unit integrity and delivering a robust solution. Approvals This mark indicates compliance with the: Radio & Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE) FCC approval (Titan and Commander) This mark indicates compliance for inductively coupling to Hearing Aids having a `T' switch position. Tested to ETS 300-381 and in accordance with ITU-T P37. CISCO IVT Tested & Approved Models Titan, Commander, VR, Public Access Help Point Variants Handset & Hands free Housing Titan: Die cast Aluminium Commander: Glass Filled Polyester VR/Public Access HP: Aluminium Front Plate IP Rating Up to IP66 Supply Power-over-Ethernet, 802.3af compliant (via RJ45), or external 48Vdc supply (via screw terminals) Connection RJ45 (Ethernet), 10/100-BASE-TX auto negotiation or user selectable 9 way D type (RS232), local configuration Temperature Range -20°C to +60°C Call Control Protocol SIP (RFC 3261) DTMF in-band / out-of-band (RFC2833) Security Password Protected Quality of Service Priority of IP-Packets according to TOS and DiffServ VLAN Priority according to IEEE 8021.p/802.1q CODECS G.711 A-Law /ì-Law (64kbps),G.722,G.729(16kps),G.723.1 MP-MLQ (6.3kps), G.723.1 ACELP (5.3kps) Echo Compensation Yes Configuration Via on-board password protected HTML Web Page Server Monitoring Automatic fault reporting via email or Syslog messaging, LED indication of unit health and connection status Update Server Configuration & firmware update via TFTP NAT Network Address Translation traversal via STUN server IP Address Static IP provisioning or Dynamic Host Configuration Protocol (DHCP) ICMP Internet Control Message Protocol for inbuilt Ping test Dial Tone Configurable comfort tones (to emulate national tones) Memory Dialling Numbers or URIs (with comfort tones) Configurable call lists (max 20 entries) which divert to next in list if the call fails Inductive loop Handset and hands free Call Records via Call Description Reports Time/Date Simple Network Time Protocol with time zone and daylight saving Date Format European/US Outputs Selectable event activation beacon, sounder, CCTV etc. Output 1 10A 250Vac Output 2 5A 250Vac Inputs 4 auxiliary inputs, volt free, (internal pull-up resistor source current = 300uA). Email and Syslog messaging on selectable events. Telephones Available in VoIP Description Brochure Number Commander B009 Titan B024 Public Access Help Point B177 VR B153 VoIP/Analogue Comparison B184
