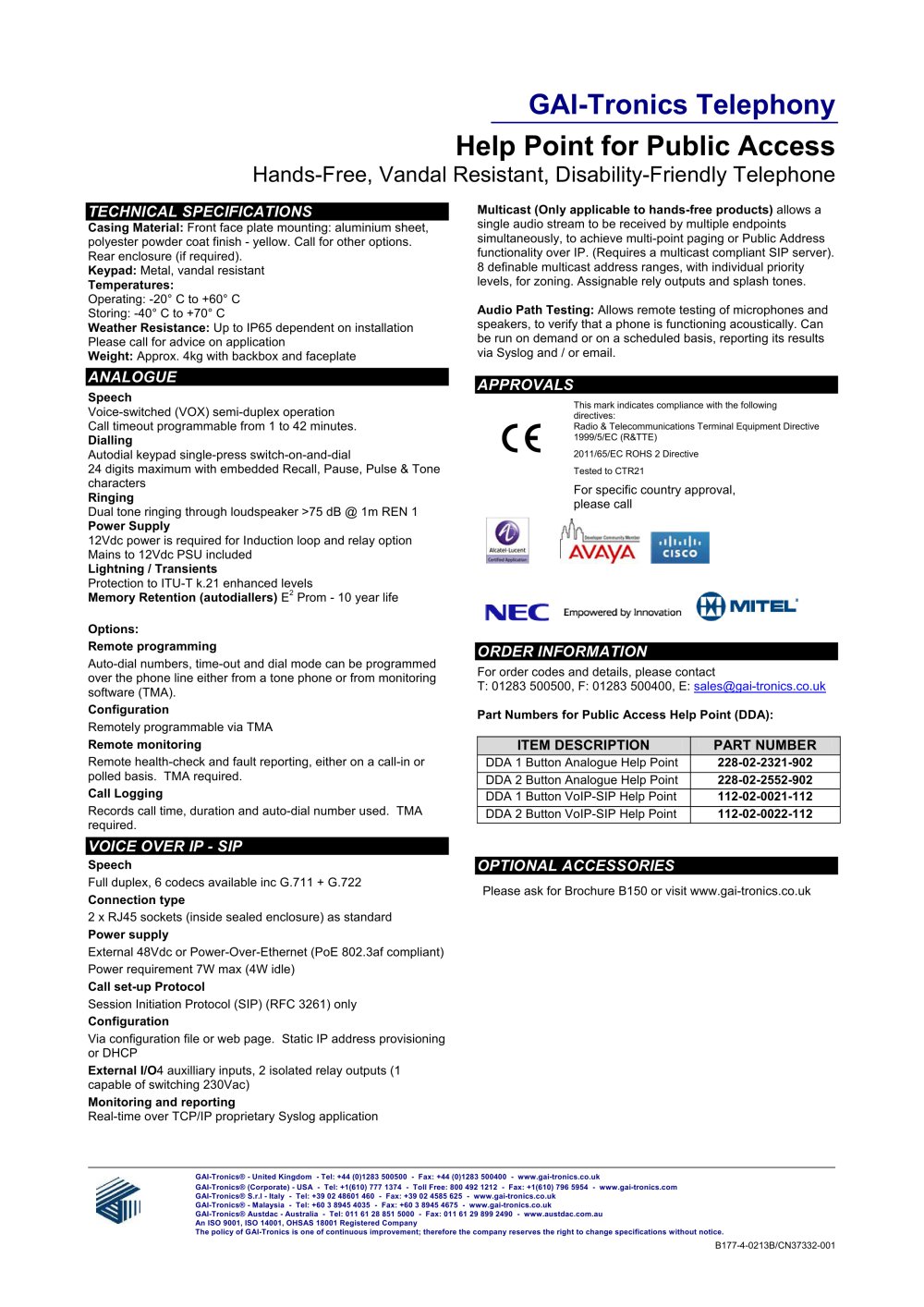

GAI-Tronics Telephony Help Point for Public Access Hands-Free, Vandal Resistant, Disability-Friendly Telephone TECHNICAL SPECIFICATIONS Casing Material Front face plate mounting: aluminium sheet, polyester powder coat finish - yellow. Call for other options. Rear enclosure (if required). Keypad Metal, vandal resistant Temperatures Operating: -20° C to +60° C Storing: -40° C to +70° C Lightning / Transients Protection to ITU-T k.21 enhanced levels Weather Resistance Up to IP65 dependent on installation Please call for advice on application Weight: 3.3kg with backbox and faceplate APPROVALS This mark indicates compliance with the following directives: Radio & Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE) Tested to CTR21 For specific country approval, please call ANALOGUE Speech Voice-switched (VOX) semi-duplex operation Call timeout programmable from 1 to 42 minutes. Remote switch-off capability Dialling Autodial keypad single-press switch-on-and-dial 24 digits maximum with embedded Recall, Pause, Pulse & Tone characters Ringing Dual tone ringing through loudspeaker >75 dB @ 1m REN 1 Power Supply Line powered only operation down to 25mA. Supplementary power 12Vdc 1A. Below 35mA line current supplementary power is recommended to achieve full volume. Supplementary power is required for induction loop operation. 2 Memory Retention (autodiallers) E Prom - 10 year life ORDER INFORMATION For order codes and details, please contact T: 01283 500500, F: 01283 500400, E: sales@gai-tronics.co.uk OPTIONAL ACCESSORIES Please ask for Brochure B150 or visit www.gai-tronics.co.uk Options: Remote programming Auto-dial numbers, time-out and dial mode can be programmed over the phone line either from a tone phone or from monitoring software (TMA). Configuration Remotely programmable via TMA Remote monitoring Remote health-check and fault reporting, either on a call-in or polled basis. TMA required. Call Logging Records call time, duration and auto-dial number used. TMA required. VOICE OVER IP - SIP Connection type RJ45 socket (inside sealed enclosure) Power supply External 48Vdc or Power-Over-Ethernet (PoE 802.3af compliant) Call set-up Protocol Session Initiation Protocol (SIP) (RFC 3261) only Configuration Via configuration file or web page. Static IP address provisioning or DHCP External I/O 4 auxilliary inputs, 2 isolated relay outputs (1 capable of switching 230Vac) Monitoring and reporting Real-time over TCP/IP proprietary Syslog application GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B177-3-0512B/CN36755-001
