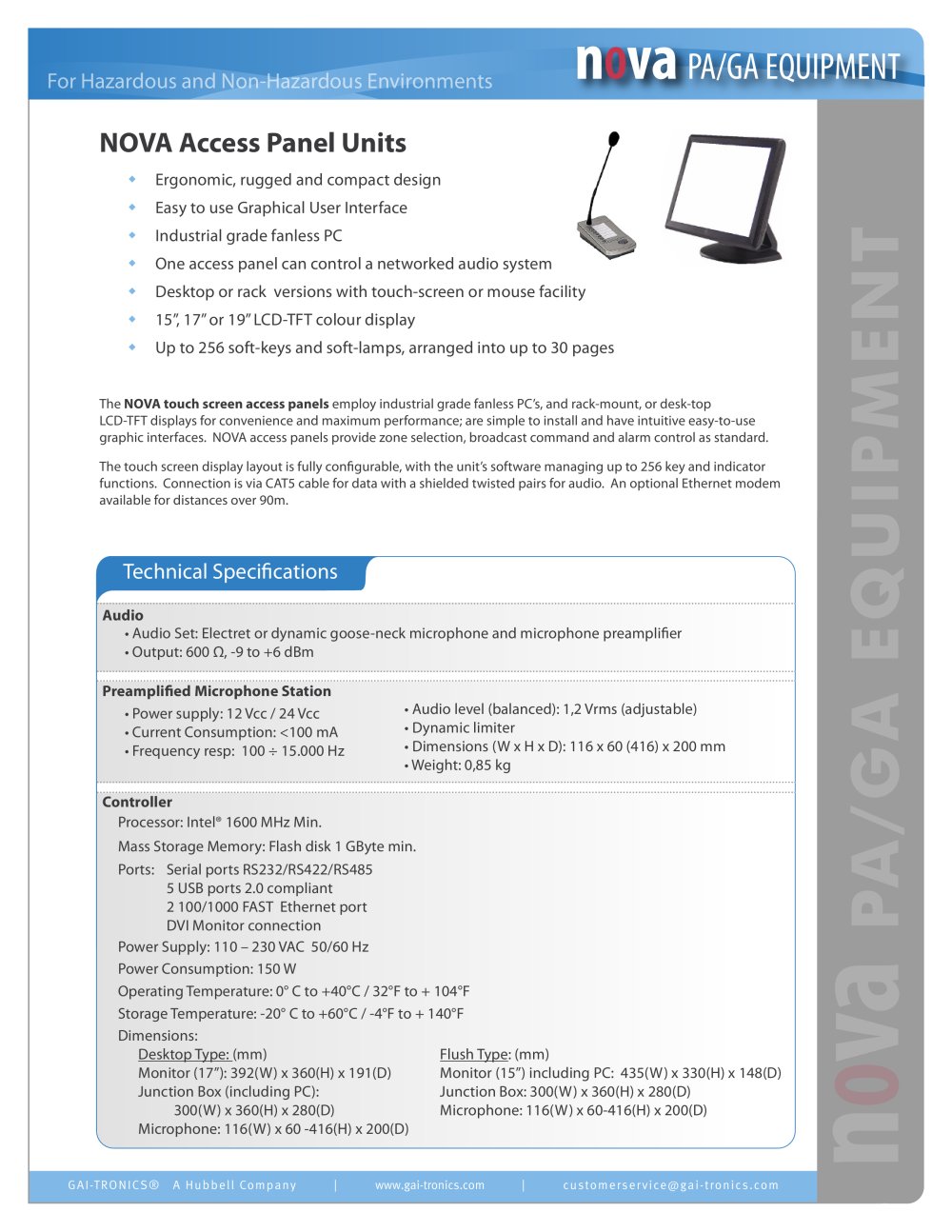

GAI-TRONICS® A Hubbell Company | w w w.gai-tronics.co m | i n fo@gai-tronics.com NOVA PA/GA EQUIPMENT NOVA Access Panel Units
Ergonomic, rugged and compact design
Easy to use Graphical User Interface
Industrial grade Pentium™ class PC
One access panel can control a networked audio system.
Desktop or rack versions with touch-screen or mouse facility
15”, 17” or 19” LCD-TFT color display,
Up to 256 soft-keys and soft-lamps, arranged into up to 30 pages Technical Specifications • Audio Set: Electret or dynamic goose-neck microphone and microphone preamplifier • Output: 600 Ù, -9 to +6 dBm Audio • Input impedance: 10 KÙ @ 1 kHz • Output level: -9 to +6 dBm • Preamplifier gain: up to +40 dB (adjustable) • Bandwidth: 300 to 15kHz (-3 dB) • Signal to noise ratio: > 60 dB • Distortion (THD): < 1% @ 0dB Microphone Preamplifier Controller Mass Storage Memory: Flash disk 1 GByte min. Ports: 2 RS232 serial ports 3 USB 2.0 ports 2 10/100 FAST Ethernet ports 1 Video interface (SVGA/DVI) Power Supply: 85 – 264 VAC; 50/60 Hz Power Consumption: 150 W Operating Temperature: 0° C to +40°C / 32°F to + 104°F Storage Temperature: -20° C to +60°C / -4°F to + 140°F Dimensions: Desktop Type: (mm) Monitor (17”): 391(W) x 366(H) x 203(D) Junction Box (including PC): 350(W) x 404(H) x 275(D) Microphone: 116(W) x 440(H) x 200(D) Flush Type: (mm) Monitor (15”) including PC: 435(W) x 330(H) x 148(D) Junction Box: 355(W) x 237(H) x 185(D) Microphone: 116(W) x 440(H) x 200(D) Processor: Intel® Celeron 600 MHz Min. The NOVA touch screen access panels employ industrial grade Pentium™ class PC’s, and rack-mount, or desk-top LCD-TFT displays for convenience and maximum performance; are simple to install and have intuitive easy-to-use graphic interfaces. NOVA access panels provide zone selection, broadcast command and alarm control as standard. The touch screen display layout is fully configurable, with the unit’s software managing up to 256 key and indicator functions. Connection is via CAT5 cable for data with a shielded twisted pairs for audio. An optional Ethernet modem available for distances over 90m.
