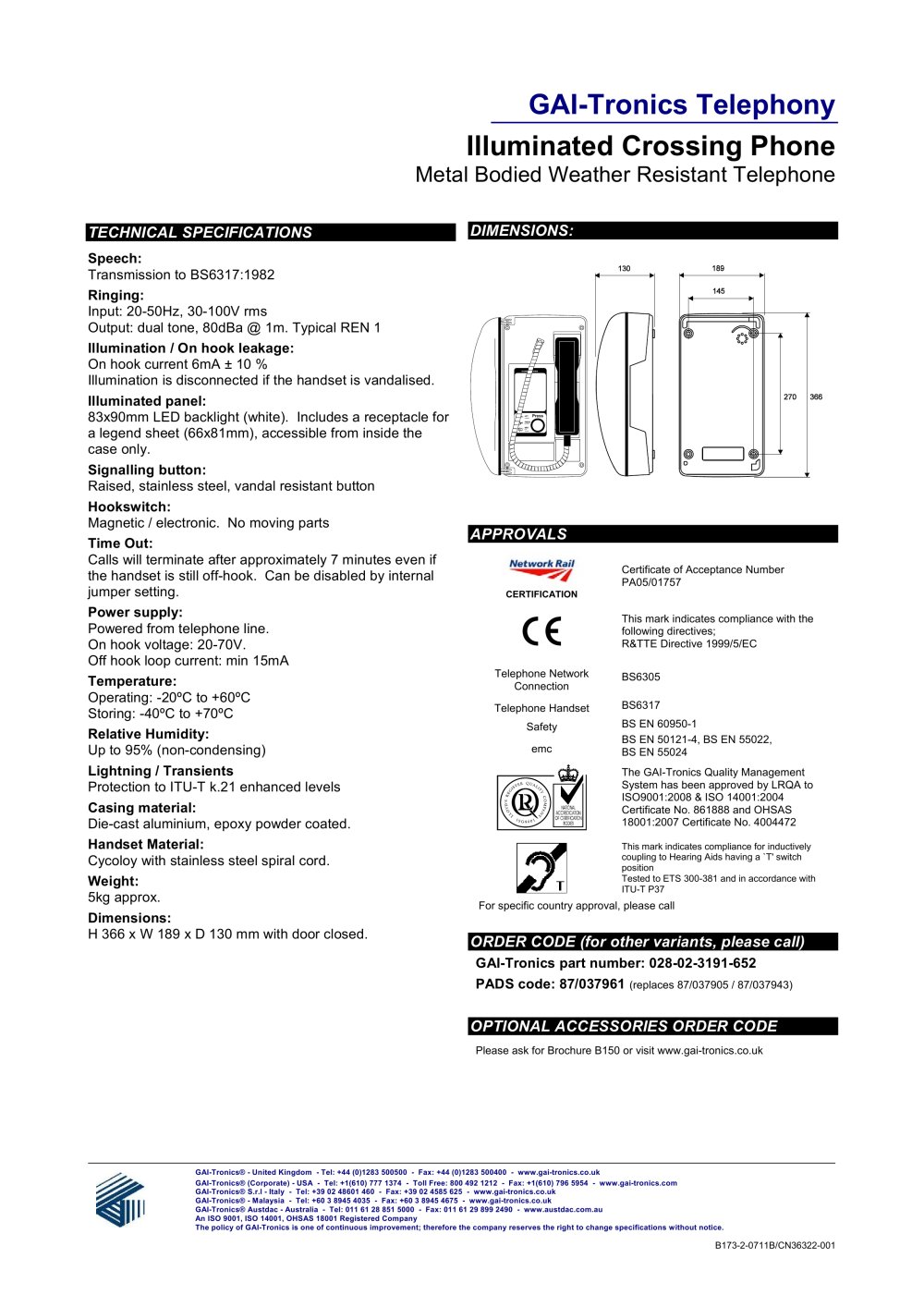

GAI-Tronics Telephony Illuminated Crossing Phone Metal Bodied Weather Resistant Telephone TECHNICAL SPECIFICATIONS Speech: Transmission to BS6317:1982 Ringing: Input: 20-50Hz, 30-100V rms Output: dual tone, 80dBa @ 1m. Typical REN 1 Illumination / On hook leakage: On hook current 6mA ± 10 % Illumination is disconnected if the handset is vandalised. Illuminated panel: 83x90mm LED backlight (white). Includes a receptacle for a legend sheet (66x81mm), accessible from inside the case only. Signalling button: Raised, stainless steel, vandal resistant button Hookswitch: Magnetic / electronic. No moving parts Time Out: Calls will terminate after approximately 7 minutes even if the handset is still off-hook. Can be disabled by internal jumper setting. Power supply: Powered from telephone line. On hook voltage: 20-70V. Off hook loop current: min 15mA Temperature: Operating: -20ºC to +60ºC Storing: -40ºC to +70ºC Relative Humidity: Up to 95% (non-condensing) Lightning / Transients Protection to ITU-T k.21 enhanced levels Casing material: Die-cast aluminium, epoxy powder coated. Handset Material: Cycoloy with stainless steel spiral cord. Weight: 5kg approx. Dimensions: H 366 x W 189 x D 130 mm with door closed. DIMENSIONS: LIFT 1 HANDSET 2 Press BUTTON 3 PRESS WAIT FOR ANSWER APPROVALS Certificate of Acceptance Number PA05/01757 CERTIFICATION This mark indicates compliance with the following directives; R&TTE Directive 1999/5/EC Telephone Network Connection BS6305 Telephone Handset BS6317 Safety emc BS EN 60950-1 BS EN 50121-4, BS EN 55022, BS EN 55024 The GAI-Tronics Quality Management System has been approved by LRQA to ISO9001:2008 & ISO 14001:2004 Certificate No. 861888 and OHSAS 18001:2007 Certificate No. 4004472 This mark indicates compliance for inductively coupling to Hearing Aids having a `T' switch position Tested to ETS 300-381 and in accordance with ITU-T P37 For specific country approval, please call ORDER CODE (for other variants, please call) GAI-Tronics part number: 028-02-3191-652 PADS code: 87/037961 (replaces 87/037905 / 87/037943) OPTIONAL ACCESSORIES ORDER CODE Please ask for Brochure B150 or visit www.gai-tronics.co.uk GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B173-2-0711B/CN36322-001
