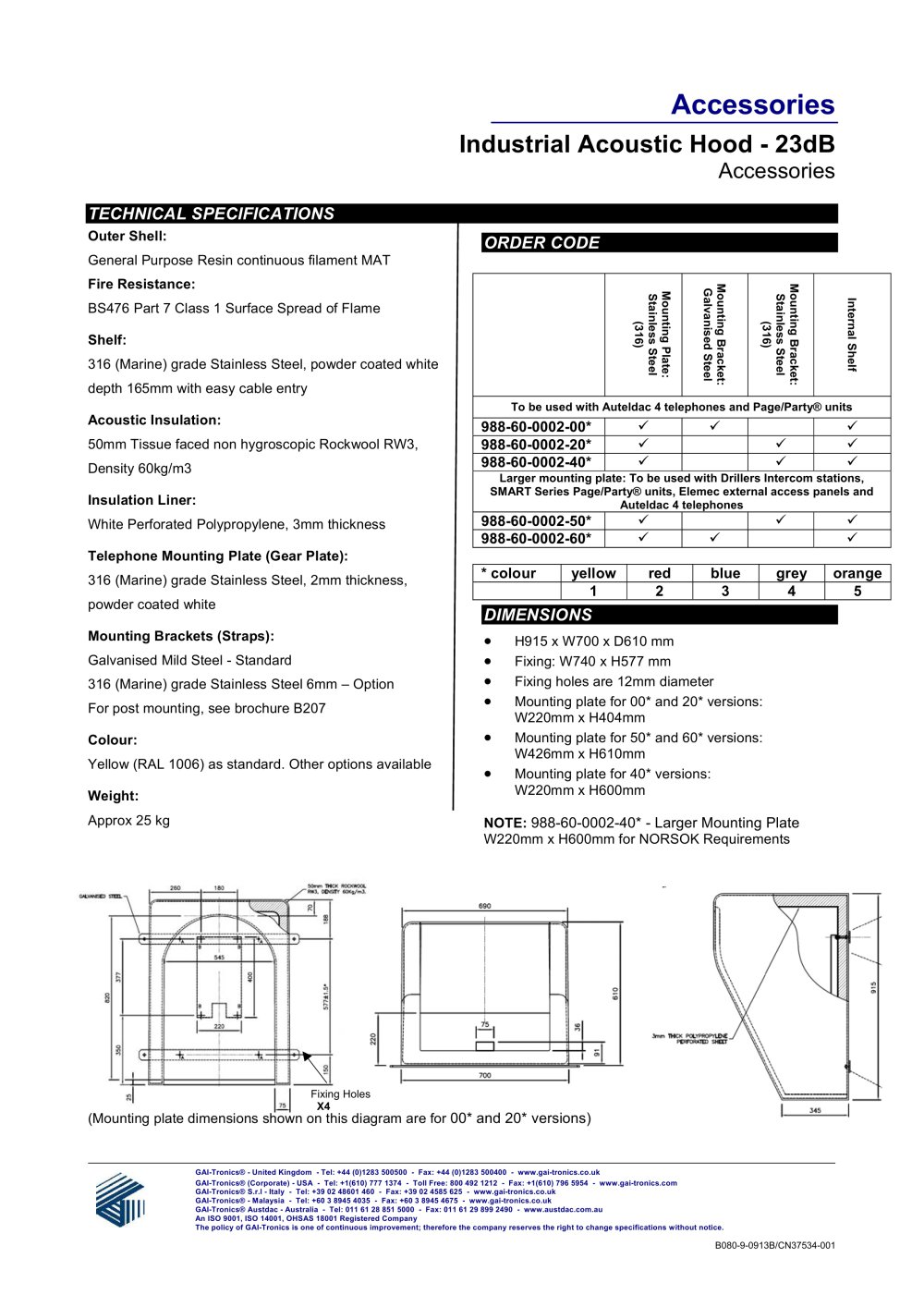

Accessories Industrial Acoustic Hood - 23dB Accessories GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B080-8-1108B/CN TECHNICAL SPECIFICATIONS Body Material - Main Body and Detachable Shelf: General purpose resin continuous filament MAT Acoustic Damping: Insulation - Rockwool RW3, Density 60kg/m3 (50mm) Acoustic Facing: Internal Lining - White perforated PPC, 3mm thickness. Fire Resistance: BS476 Part 7 Fire Retardant Classification of 1 Telephone Mounting Plate: 304 Grade Stainless Steel with White Gloss Epoxy Polyester Powder finish, or 316 (Marine) Grade Stainless Steel option Mounting Straps: Galvanised Steel - Standard Stainless Steel - Option Colour: Yellow or red as standard. Other options available Weight: Approx 25 kg ORDER CODE Mounting Plate: Stainless Steel (304) Mounting Plate: Stainless Steel (316) Mounting Straps: Galvanised Steel Mounting Straps: Stainless Steel (316) Internal Shelf To be used with Auteldac 4 telephones and Page/Party® units 988-60-0002-00* .. .. .. 988-60-0002-10* .. .. .. 988-60-0002-20* .. .. .. Larger gear plate: To be used with Drillers Intercom stations, SMART Series Page/Party® units and Elemecplus external access panels 988-60-0002-50* .. .. .. 988-60-0002-60* .. .. .. * colour yellow red blue grey orange 1 2 3 4 5 DIMENSIONS • H 920 x W 690 x D 600 mm • Fixing: W 740 x H 575 mm • Gear plate for 00*,10* and 20* versions: W220mm x H400mm • Gear plate for 50* and 60* versions: W426mm x H610mm (Gear plate dimensions shown on this diagram are for 00*, 10* and 20* versions)
