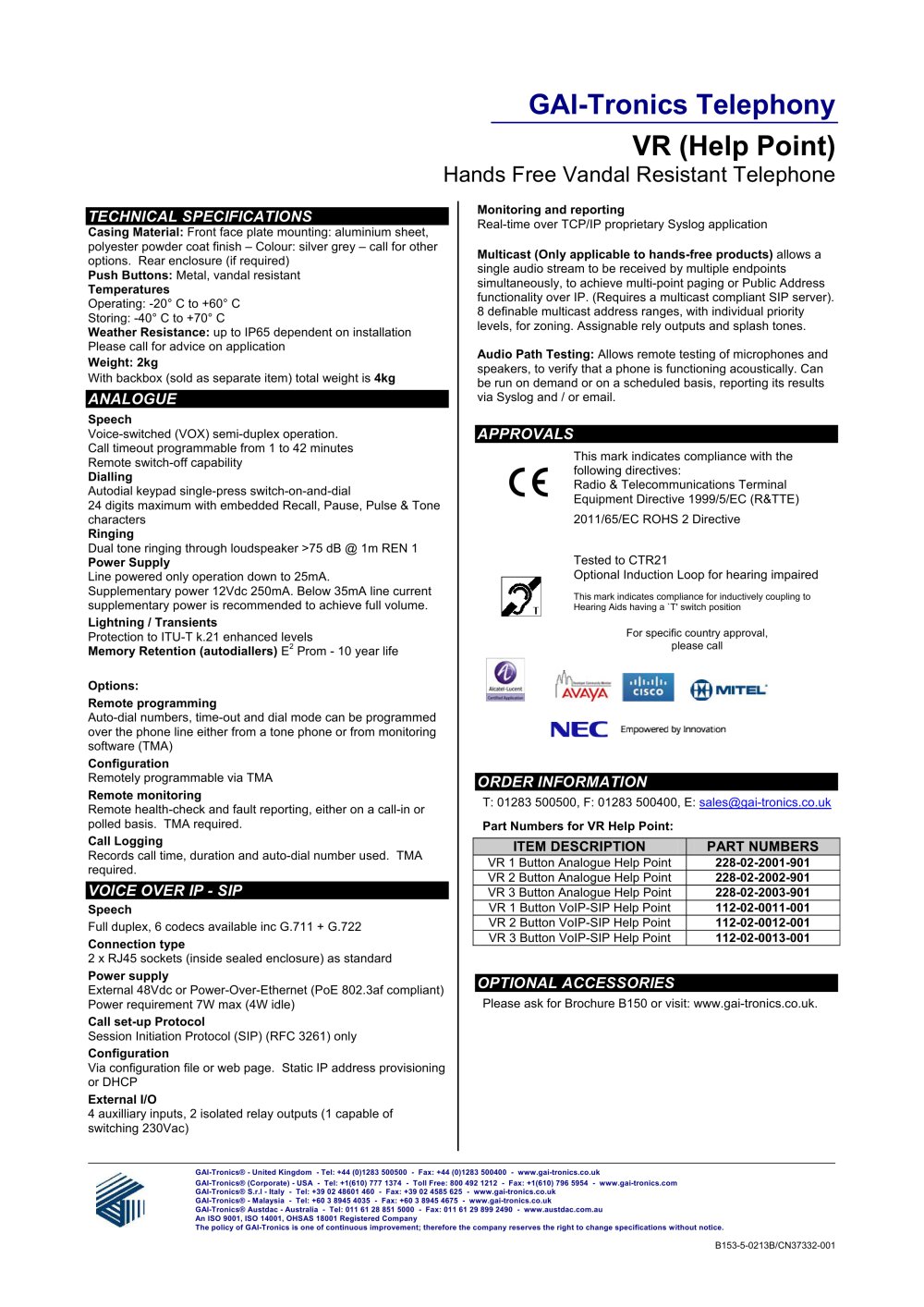

GAI-Tronics Telephony VR (Help Point) Hands Free Vandal Resistant Telephone GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B153-4-0206B/CN21758 TECHNICAL SPECIFICATIONS Casing Material: Front face plate mounting: aluminium sheet, polyester powder coat finish – Colour: Yellow or grey – call for other options. Rear enclosure (if required) Keypad Metal, vandal resistant Temperatures Operating: -20° C to +60° C Storing: -40° C to +70° C Lightning / Transients Protection to ITU-T k.21 enhanced levels Weather Resistance: up to IP65 dependent on installation Please call for advice on application Weight: 5kg ANALOGUE Speech Voice-switched (VOX) semi-duplex operation. Call timeout programmable from 1 to 42 minutes Remote switch-off capability Dialling Autodial keypad single-press switch-on-and-dial 24 digits maximum with embedded Recall, Pause, Pulse & Tone characters Ringing Dual tone ringing through loudspeaker >75 dB @ 1m REN 1 Power Supply Line powered only operation down to 25mA. Supplementary power 6 - 9Vdc 100mA, 12Vdc 250mA. Below 35mA line current supplementary power is recommended to achieve full volume. Memory Retention (autodiallers) E2 Prom - 10 year life Options: Remote programming Auto-dial numbers, time-out and dial mode can be programmed over the phone line either from a tone phone or from monitoring software (TMA). Configuration Remotely programmable via TMA Remote monitoring Remote health-check and fault reporting, either on a call-in or polled basis. TMA required. Call Logging Records call time, duration and auto-dial number used. TMA required. VOICE OVER IP - SIP Connection type RJ45 socket (inside sealed enclosure) Power supply External 48Vdc or Power-Over-Ethernet (PoE 802.3af compliant) Call set-up Protocol Session Initiation Protocol (SIP) (RFC 3261) only Configuration Via configuration file or web page. Static IP address provisioning or DHCP External I/O 4 auxilliary inputs, 2 isolated relay outputs (1 capable of switching 230Vac) Monitoring and reporting Real-time over TCP/IP proprietary Syslog application. DIMENSIONS APPROVALS This mark indicates compliance with the following directives: Radio & Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE) Tested to CTR21 GAI-Tronics is a CISCO Technology Developer Partner Cisco IVT Tested For specific country approval, please call ORDER INFORMATION T: 01283 500500, F: 01283 500400, E: sales@gai-tronics.co.uk OPTIONAL ACCESSORIES Please ask for Brochure B150 or visit www.gai-tronics.co.uk.
