EZ Page Intercom system - GAI-Tronics - #2

Text version of the page

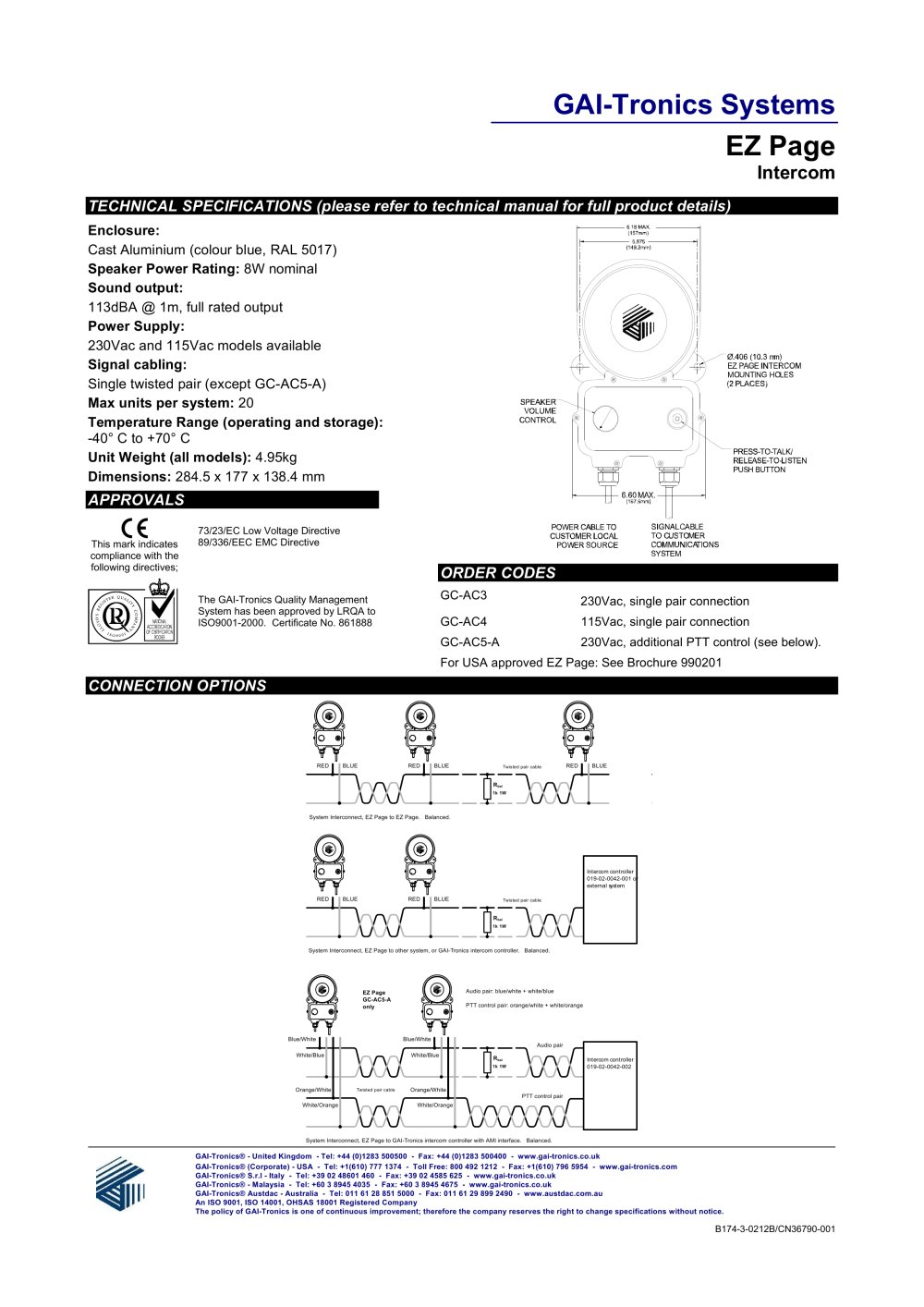

GAI-Tronics Systems EZ Page Intercom TECHNICAL SPECIFICATIONS (please refer to technical manual for full product details) Enclosure: Cast Aluminium (colour blue, RAL 5017) Speaker Power Rating: 8W nominal Sound output: 113dBA @ 1m, full rated output Power Supply: 230Vac and 115Vac models available Signal cabling: Single twisted pair (except GC-AC5-A) Max units per system: 20 Temperature Range (operating and storage): -40° C to +70° C Unit Weight (all models): 4.95kg Dimensions: 284.5 x 177 x 138.4 mm APPROVALS This mark indicates compliance with the following directives; 73/23/EC Low Voltage Directive 89/336/EEC EMC Directive ORDER CODES GC-AC3 230Vac, single pair connection GC-AC4 115Vac, single pair connection GC-AC5-A The GAI-Tronics Quality Management System has been approved by LRQA to ISO9001-2000. Certificate No. 861888 230Vac, additional PTT control (see below). For USA approved EZ Page: See Brochure 990201 CONNECTION OPTIONS RED BLUE RED BLUE Twisted pair cable RED BLUE Rbal 1k 1W System Interconnect, EZ Page to EZ Page. Balanced. Intercom controller 019-02-0042-001 or external s ystem RED BLUE RED BLUE Twisted pair cable Rbal 1k 1W System Interconnect, EZ Page to other system, or GAI-Tronics intercom controller. Balanced. Audio pair: blue/white + white/blue EZ Page GC-AC5-A only Blue/White PTT control pair: orange/white + white/orange Blue/White Audio pair White/Blue White/Blue Rbal Intercom controller 019-02-0042-002 1k 1W Orange/White Twisted pair cable Orange/White PTT control pair White/Orange White/Orange System Interconnect, EZ Page to GAI-Tronics intercom controller with AMI interface. Balanced. GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B174-3-0212B/CN36790-001
