Elemec plus - Digitally Controlled Public Address and General Alarm System - GAI-Tronics - #1

Text version of the page

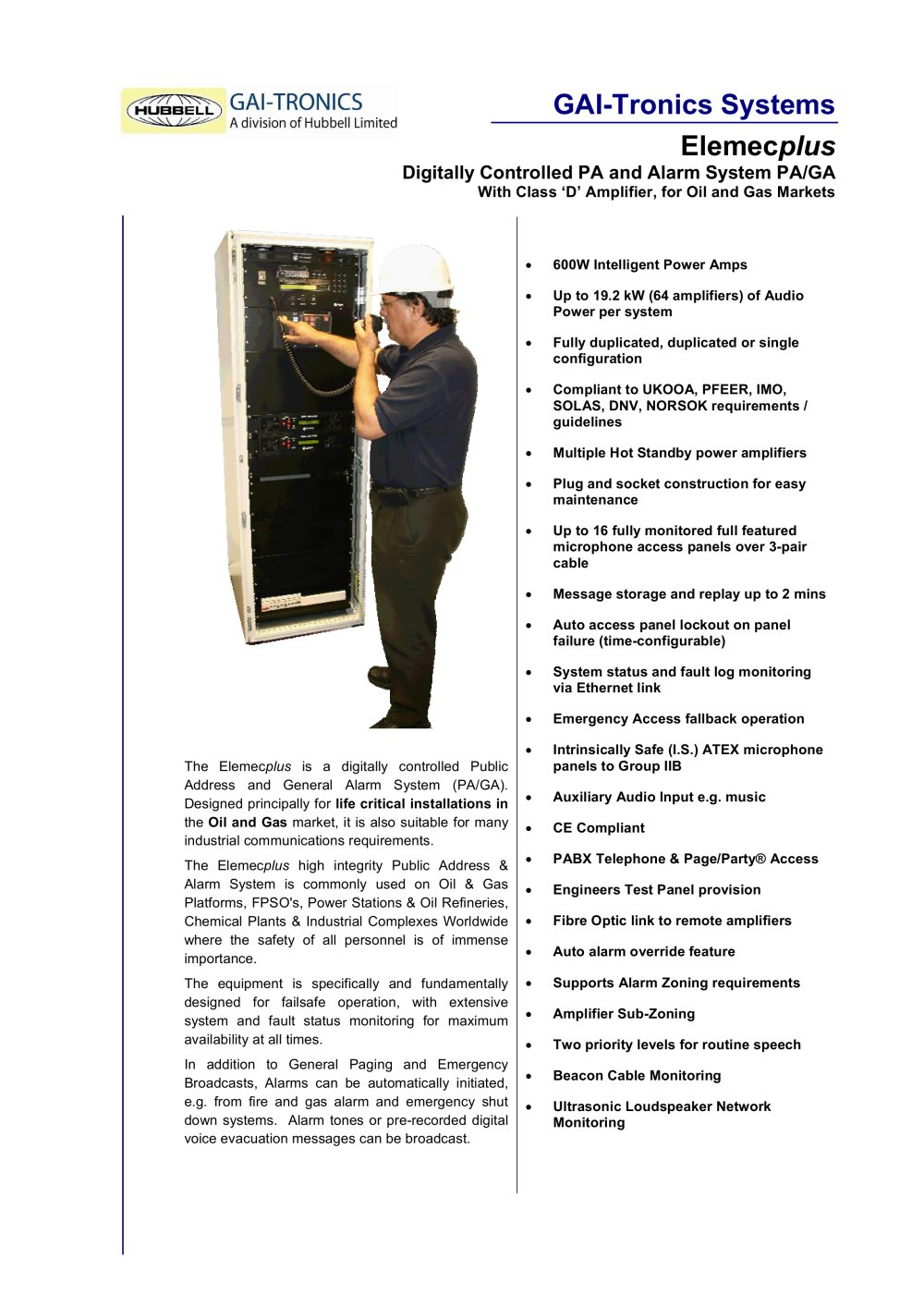

GAI-Tronics Systems Elemecplus Digitally Controlled PA and Alarm System PA/GA for Oil and Gas Markets The Elemecplus is a Digitally Controlled Public Address and General Alarm System (PA/GA). Designed principally for life critical installations in the Oil and Gas market, it is also suitable for many industrial communications requirements. The equipment is specifically and fundamentally designed as failsafe, with extensive system and fault status monitoring for maximum availability at all times. In addition to General Paging and Emergency Broadcasts, Alarms can be automatically initiated, e.g. from Fire and Gas Alarm and Emergency Shut Down Systems. Alarm tones or pre-recorded digital voice evacuation messages can be broadcast. GAI-Tronics provides the essential control and monitoring system for the PAGA High Integrity Public Address & Alarm System commonly used on Oil & Gas Platforms, FPSO's, Power Stations & Oil Refineries, Chemical Plants & Industrial Complexes Worldwide where the safety of all personnel is of immense importance. • Up to 19.2 kW of Audio Power per system (up to 64 Amps per system A/B) • Fully duplicated or single system • Multiple Hot Standby power amplifiers • Plug and socket construction for easy maintenance • Up to 16 fully monitored full featured microphone panels over 3-pair cable • Message storage and replay up to 2 mins • Auto (time-configurable) access panel lockout on panel failure • Compliant to UKOOA, PFEER, IMO, SOLAS, DNV, NORSOK requirements / guidelines • System status and fault log monitoring via Ethernet link • Emergency Access fallback operation • Intrinsically Safe (I.S.) ATEX microphone panels to Group IIB/C • Auxiliary Audio Input e.g. music • CE Marked • Robust 300W Intelligent Power Amps • PABX Telephone Access & Page/Party Access • Engineers Test Panel provision • Fibre Optic link to remote amplifiers • Auto alarm override feature • Duplicated Controllers • Supports Alarm Zoning requirements • Amplifier Sub-Zoning • Two priority levels for routine speech • Morse Code function from Access Panel Pushbuttons • Beacon Cable Monitoring • Ultrasonic Loudspeaker Network Monitoring
