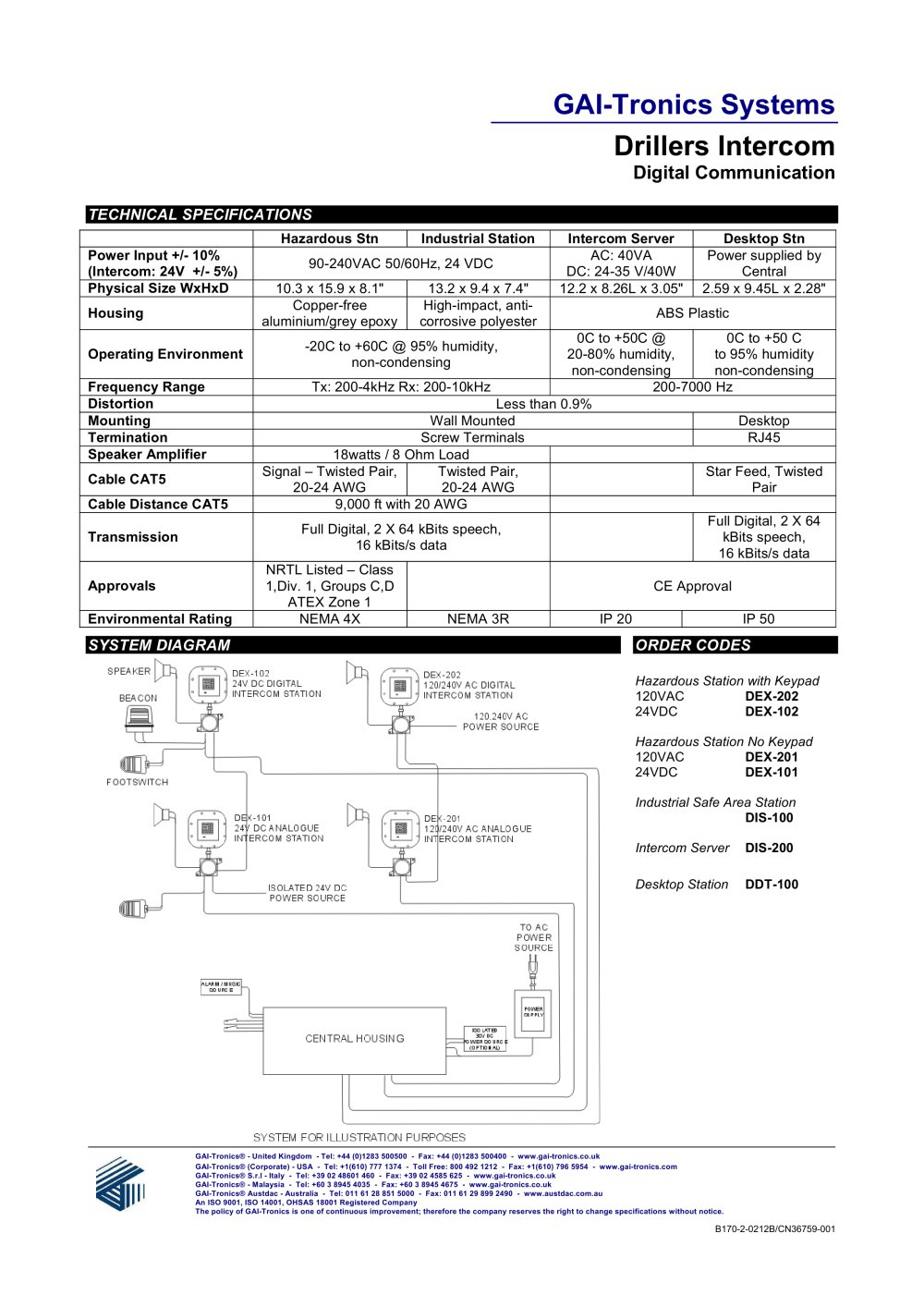

GAI-Tronics Systems Drillers Intercom Digital Communication GAI-Tronics, UK - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics Corporation, USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 775 6540 - www.gai-tronics.com GAI-Tronics S.r.l, Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 GAI-Tronics Corporation, Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 An ISO9001 Registered Company B170-2-0704B/CN21757 TECHNICAL SPECIFICATIONS Hazardous Stn Industrial Station Intercom Server Desktop Stn Power Input +/- 10% (Intercom: 24V +/- 5%) 90-240VAC 50/60Hz, 24 VDC AC: 40VA DC: 24-35 V/40W Power supplied by Central Physical Size WxHxD 10.3 x 15.9 x 8.1" 13.2 x 9.4 x 7.4" 12.2 x 8.26L x 3.05" 2.59 x 9.45L x 2.28" Housing Copper-free aluminium/grey epoxy High-impact, anticorrosive polyester ABS Plastic Operating Environment -20C to +60C @ 95% humidity, non-condensing 0C to +50C @ 20-80% humidity, non-condensing 0C to +50 C to 95% humidity non-condensing Frequency Range Tx: 200-4kHz Rx: 200-10kHz 200-7000 Hz Distortion Less than 0.9% Mounting Wall Mounted Desktop Termination Screw Terminals RJ45 Speaker Amplifier 18watts / 8 Ohm Load Cable CAT5 Signal – Twisted Pair, 20-24 AWG Twisted Pair, 20-24 AWG Star Feed, Twisted Pair Cable Distance CAT5 9,000 ft with 20 AWG Transmission Full Digital, 2 X 64 kBits speech, 16 kBits/s data Full Digital, 2 X 64 kBits speech, 16 kBits/s data Approvals NRTL Listed – Class 1,Div. 1, Groups C,D CE Approval Environmental Rating NEMA 4X NEMA 3R IP 20 IP 50 SYSTEM DIAGRAM ORDER CODES Hazardous Station with Keypad 120VAC DEX-202 24VDC DEX-102 Hazardous Station No Keypad 120VAC DEX-201 24VDC DEX-101 Industrial Safe Area Station DIS-100 Intercom Server DIS-200 Desktop Station DDT-100
