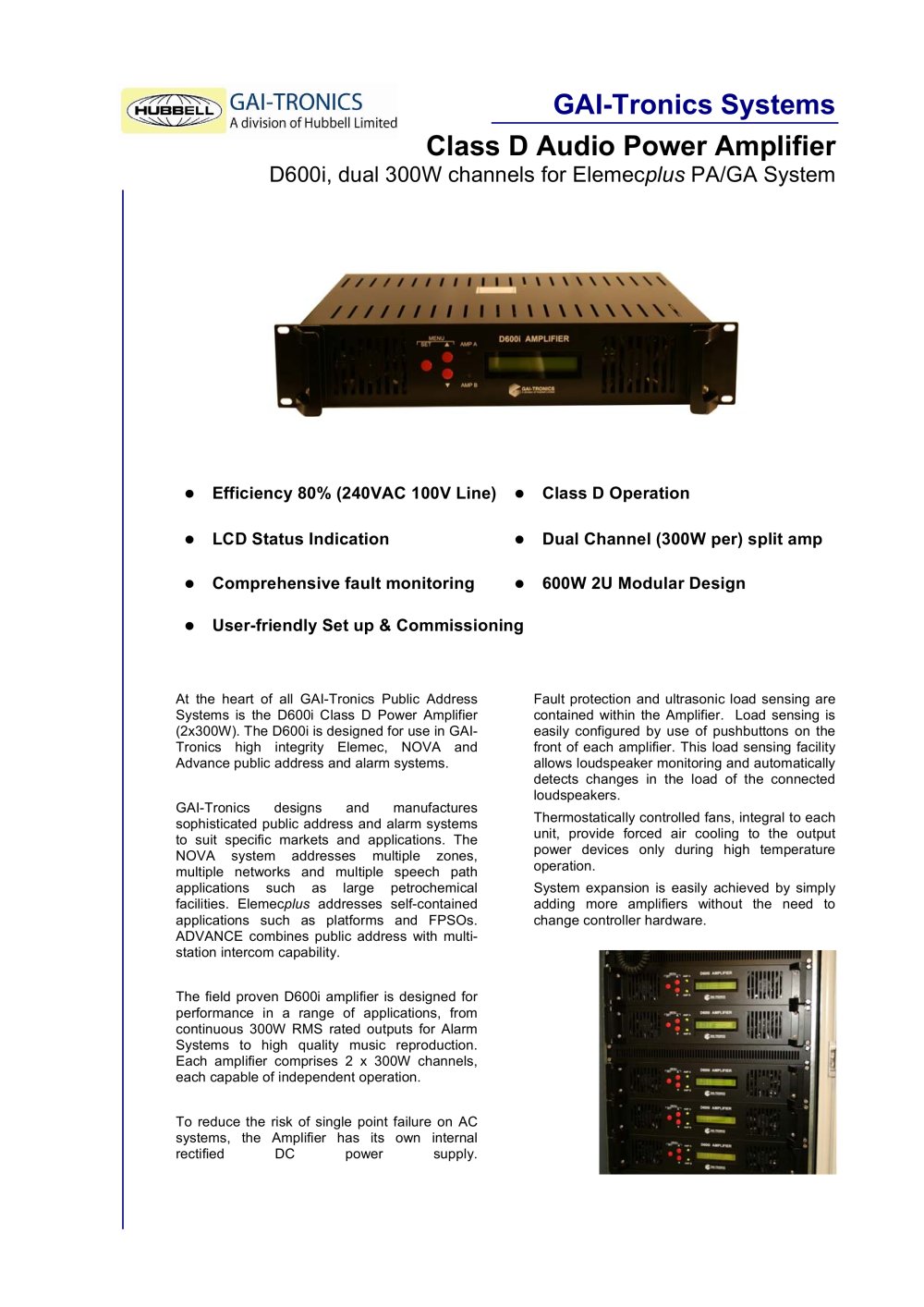

GAI-Tronics Systems Class D Audio Power Amplifier D600i, dual 300W channels for Elemecplus PA/GA System .. Efficiency 80% (240VAC 100V Line) .. Class D Operation .. LCD Status Indication .. Dual Channel (300W per) split amp .. Comprehensive fault monitoring .. 600W 2U Modular Design .. User-friendly Set up & Commissioning At the heart of all GAI-Tronics Public Address Systems is the D600i Class D Power Amplifier (2x300W). The D600i is designed for use in GAITronics high integrity Elemec, NOVA and Advance public address and alarm systems. GAI-Tronics designs and manufactures sophisticated public address and alarm systems to suit specific markets and applications. The NOVA system addresses multiple zones, multiple networks and multiple speech path applications such as large petrochemical facilities. Elemecplus addresses self-contained applications such as platforms and FPSOs. ADVANCE combines public address with multistation intercom capability. The field proven D600i amplifier is designed for performance in a range of applications, from continuous 300W RMS rated outputs for Alarm Systems to high quality music reproduction. Each amplifier comprises 2 x 300W channels, each capable of independent operation. To reduce the risk of single point failure, on AC systems the Amplifier has its own internal power supply. Fault protection and ultrasonic load sensing are contained within the Amplifier. Load sensing is easily configured by use of pushbuttons on the front of each amplifier. This load sensing facility allows loudspeaker monitoring and automatically detects changes in the load of the connected loudspeakers. Thermostatically controlled fans, integral to each unit, provide forced air cooling to the output power devices only during high temperature operation. System expansion is easily achieved by simply adding more amplifiers without the need to change controller hardware.
