D600i Class D Audio Power Amplifier for PA/GA Systems - GAI-Tronics - #2

Text version of the page

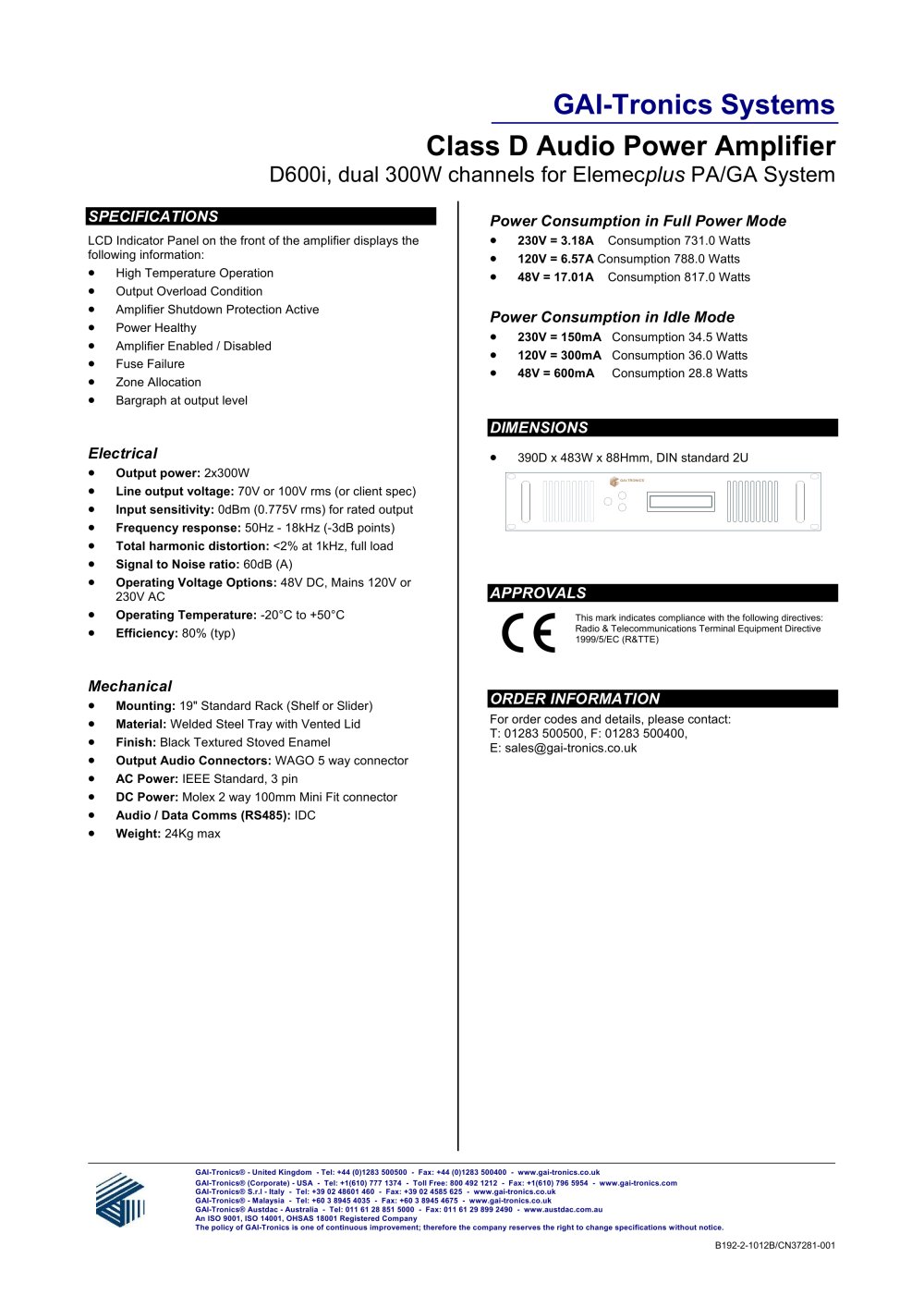

GAI-Tronics Systems Class D Audio Power Amplifier D600i, dual 300W channels for Elemecplus PA/GA System SPECIFICATIONS LCD Indicator Panel on the front of the amplifier displays the following information: • High Temperature Operation • Output Overload Condition • Amplifier Shutdown Protection Active • Power Healthy • Amplifier Enabled / Disabled • Fuse Failure • Zone Allocation • Bargraph at output level Power Consumption in Full Power Mode • 230V = 3.18A Consumption 731.0 Watts • 120V = 6.57A Consumption 788.0 Watts • 48V = 17.01A Consumption 817.0 Watts Power Consumption in Idle Mode • 230V = 150mA Consumption 34.5 Watts • 120V = 300mA Consumption 36.0 Watts • 48V = 600mA Consumption 28.8 Watts DIMENSIONS Electrical • Output power: 2x300W • Line output voltage: 70V or 100V rms (or client spec) • Input sensitivity: 0dBm (0.775V rms) for rated output • Frequency response: 50Hz - 18kHz (-3dB points) • Total harmonic distortion: <2% at 1kHz, full load • Signal to Noise ratio: 60dB (A) • Operating Voltage Options: 48V DC, Mains 120V or • • 230V AC Operating Temperature: -20°C to +50°C Efficiency: 80% (typ) Mechanical • Mounting: 19" Standard Rack (Shelf or Slider) • Material: Welded Steel Tray with Vented Lid • Finish: Black Textured Stoved Enamel • Output Audio Connectors: WAGO 5 way connector • AC Power: IEEE Standard, 3 pin • DC Power: Molex 2 way 100mm Mini Fit connector • Audio / Data Comms (RS485): IDC • Weight: 24Kg max • 390D x 483W x 88Hmm, DIN standard 2U GAI-TRONICS ® APPROVALS This mark indicates compliance with the following directives: Radio & Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE) ORDER INFORMATION For order codes and details, please contact: T: 01283 500500, F: 01283 500400, E: sales@gai-tronics.co.uk GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B192-1-1009B/CN34766-001
