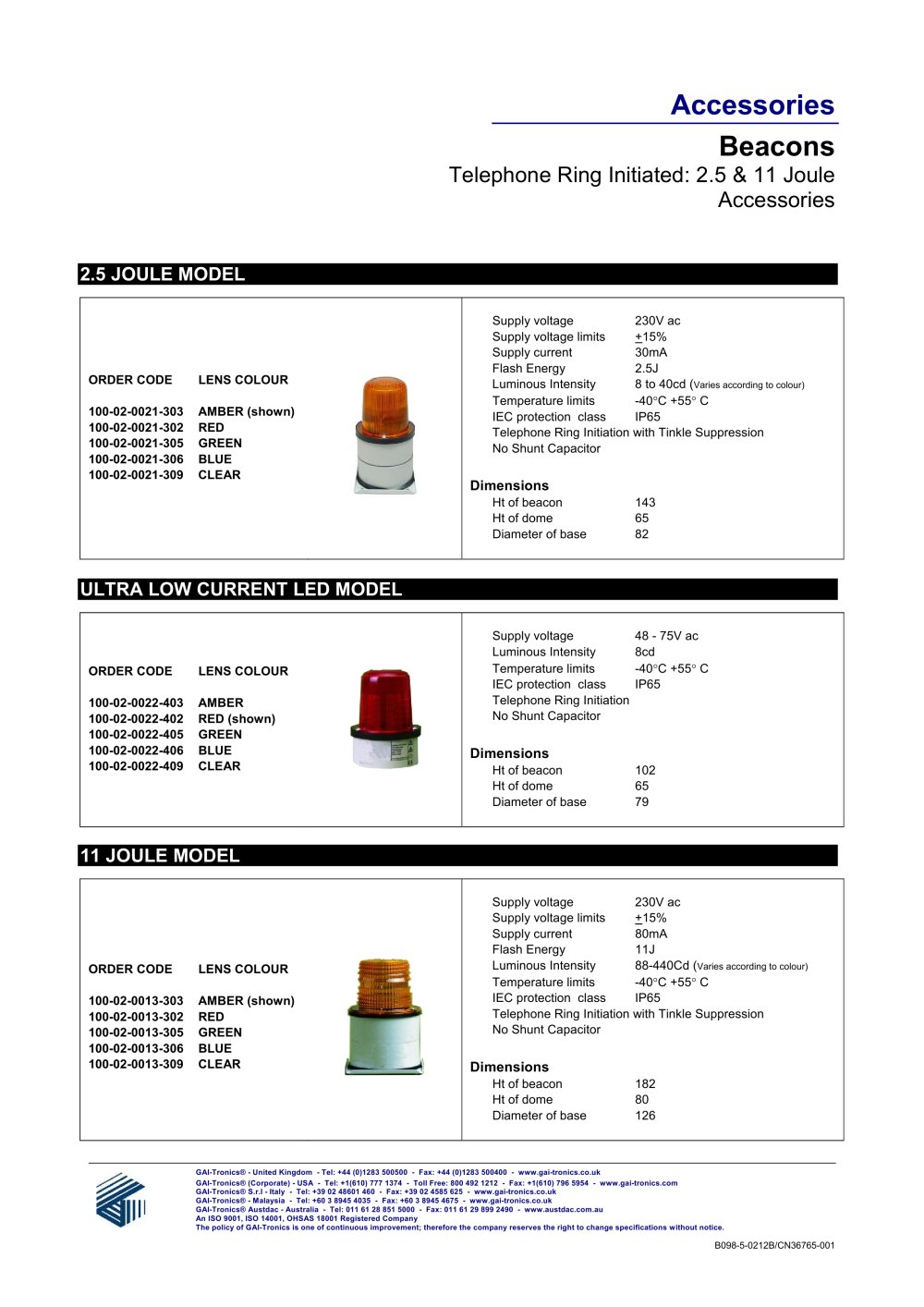

Beacons (Industrial): 2.5 & 11 Joule - Telephone Ring Initiated - GAI-Tronics - #2

Text version of the page

Accessories Beacons Telephone Ring Initiated: 2.5 & 11 Joule Accessories 2.5 JOULE MODEL ORDER CODE LENS COLOUR 100-02-0021-303 100-02-0021-302 100-02-0021-305 100-02-0021-306 100-02-0021-309 AMBER (shown) RED GREEN BLUE CLEAR Supply voltage 230V ac Supply voltage limits +15% Supply current 30mA Flash Energy 2.5J Luminous Intensity 8 to 40cd (Varies according to colour) Temperature limits -40°C +55° C IEC protection class IP65 Telephone Ring Initiation with Tinkle Suppression No Shunt Capacitor Dimensions Ht of beacon Ht of dome Diameter of base 143 65 82 Supply voltage Luminous Intensity Temperature limits IEC protection class Telephone Ring Initiation No Shunt Capacitor 48 - 75V ac 8cd -40°C +55° C IP65 ULTRA LOW CURRENT LED MODEL ORDER CODE LENS COLOUR 100-02-0022-403 100-02-0022-402 100-02-0022-405 100-02-0022-406 100-02-0022-409 AMBER RED (shown) GREEN BLUE CLEAR Dimensions Ht of beacon Ht of dome Diameter of base 102 65 79 11 JOULE MODEL ORDER CODE LENS COLOUR 100-02-0013-303 100-02-0013-302 100-02-0013-305 100-02-0013-306 100-02-0013-309 AMBER (shown) RED GREEN BLUE CLEAR Supply voltage 230V ac Supply voltage limits +15% Supply current 80mA Flash Energy 11J Luminous Intensity 88-440Cd (Varies according to colour) Temperature limits -40°C +55° C IEC protection class IP65 Telephone Ring Initiation with Tinkle Suppression No Shunt Capacitor Dimensions Ht of beacon Ht of dome Diameter of base 182 80 126 GAI-Tronics® - United Kingdom - Tel: +44 (0)1283 500500 - Fax: +44 (0)1283 500400 - www.gai-tronics.co.uk GAI-Tronics® (Corporate) - USA - Tel: +1(610) 777 1374 - Toll Free: 800 492 1212 - Fax: +1(610) 796 5954 - www.gai-tronics.com GAI-Tronics® S.r.l - Italy - Tel: +39 02 48601 460 - Fax: +39 02 4585 625 - www.gai-tronics.co.uk GAI-Tronics® - Malaysia - Tel: +60 3 8945 4035 - Fax: +60 3 8945 4675 - www.gai-tronics.co.uk GAI-Tronics® Austdac - Australia - Tel: 011 61 28 851 5000 - Fax: 011 61 29 899 2490 - www.austdac.com.au An ISO 9001, ISO 14001, OHSAS 18001 Registered Company The policy of GAI-Tronics is one of continuous improvement; therefore the company reserves the right to change specifications without notice. B098-5-0212B/CN36765-001
