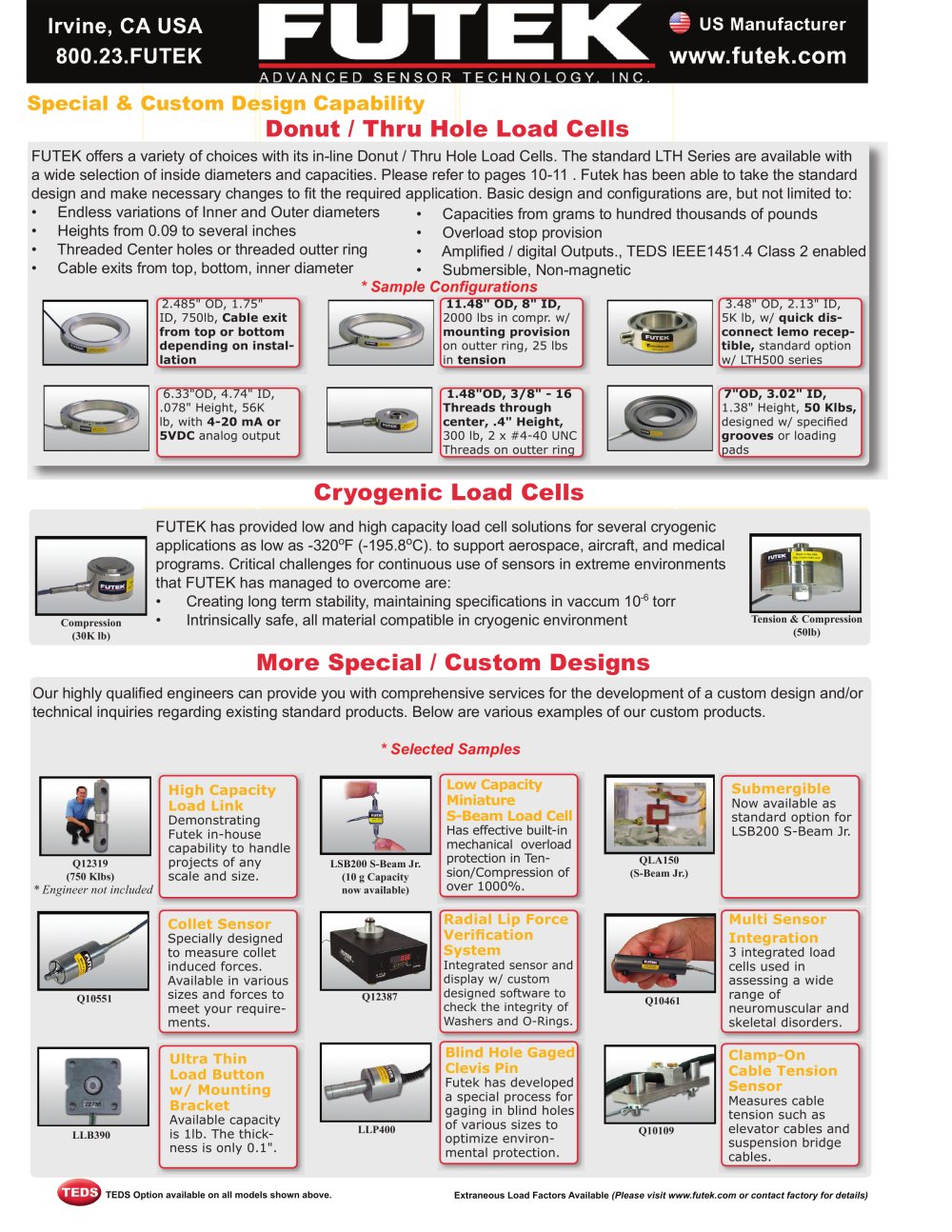

Special & Custom Design Capability Capacities from grams to hundred thousands of pounds
Overload stop provision
Amplified / digital Outputs., TEDS IEEE1451.4 Class 2 enabled
Submersible, Non-magneticFUTEK offers a variety of choices with its in-line Donut / Thru Hole Load Cells. The standard LTH Series are available with a wide selection of inside diameters and capacities. Please refer to pages 10-11 . Futek has been able to take the standard design and make necessary changes to fit the required application. Basic design and configurations are, but not limited to: Endless variations of Inner and Outer diameters
Heights from 0.09 to several inches
Threaded Center holes or threaded outter ring
Cable exits from top, bottom, inner diameter tension * Sample Configurations on outter ring, 25 lbs in 2.485" OD, 1.75" ID, 750lb, mounting provision 11.48" OD, 8" ID, 3.48" OD, 2.13" ID, 5K lb, w/ Cable exit from top or bottom depending on instal-
lation 2000 lbs in compr. w/ standard option w/ LTH500 series quick dis-connect lemo recep-
tible, 300 lb, 2 x #4-40 UNC Threads on outter ring 6.33"OD, 4.74" ID, .078" Height, 56K lb, with 4-20 mA or 5VDC 1.48"OD, 3/8" - 16 Threads through center, .4" Height, 7"OD, 3.02" ID, analog output 1.38" Height, grooves or loading pads 50 Klbs, designed w/ specified Cryogenic Load Cells FUTEK has provided low and high capacity load cell solutions for several cryogenic applications as low as -320 o F (-195.8 o C). to support aerospace, aircraft, and medical programs. Critical challenges for continuous use of sensors in extreme environments that FUTEK has managed to overcome are: Creating long term stability, maintaining specifications in vaccum 10 -6 torr Intrinsically safe, all material compatible in cryogenic environment Compression (30K lb) Tension & Compression(50lb) More Special / Custom Designs Our highly qualified engineers can provide you with comprehensive services for the development of a custom design and/or technical inquiries regarding existing standard products. Below are various examples of our custom products. * Selected Samples High Capacity Load Link Low Capacity Miniature S-Beam Load Cell Submergible Now available as standard option for LSB200 S-Beam Jr. Demonstrating Futek in-house capability to handle projects of any scale and size. Has effective built-in mechanical overload protection in Ten-
sion/Compression of over 1000%. Q12319(750 Klbs) LSB200 S-Beam Jr.(10 g Capacity now available) QLA150(S-Beam Jr.) * Engineer not included Collet Sensor Radial Lip Force Verification System Multi Sensor Integration Specially designed to measure collet induced forces.
Available in various sizes and forces to meet your require-
ments. 3 integrated load cells used in assessing a wide range of neuromuscular and skeletal disorders. Integrated sensor and display w/ custom designed software to check the integrity of Washers and O-Rings. Q10551 Q12387 Q10461 Ultra Thin Load Button w/ Mounting Bracket Blind Hole Gaged Clevis Pin Clamp-OnCable Tension Sensor Futek has developed a special process for gaging in blind holes of various sizes to optimize environ-
mental protection. Measures cable tension such as industrial elevator cables and suspension industrial bridge cables. Available capacity is 1lb. The thick-
ness is only 0.1". LLB390 LLP400 Q10109 TEDS Option available on all models shown above. Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
|
