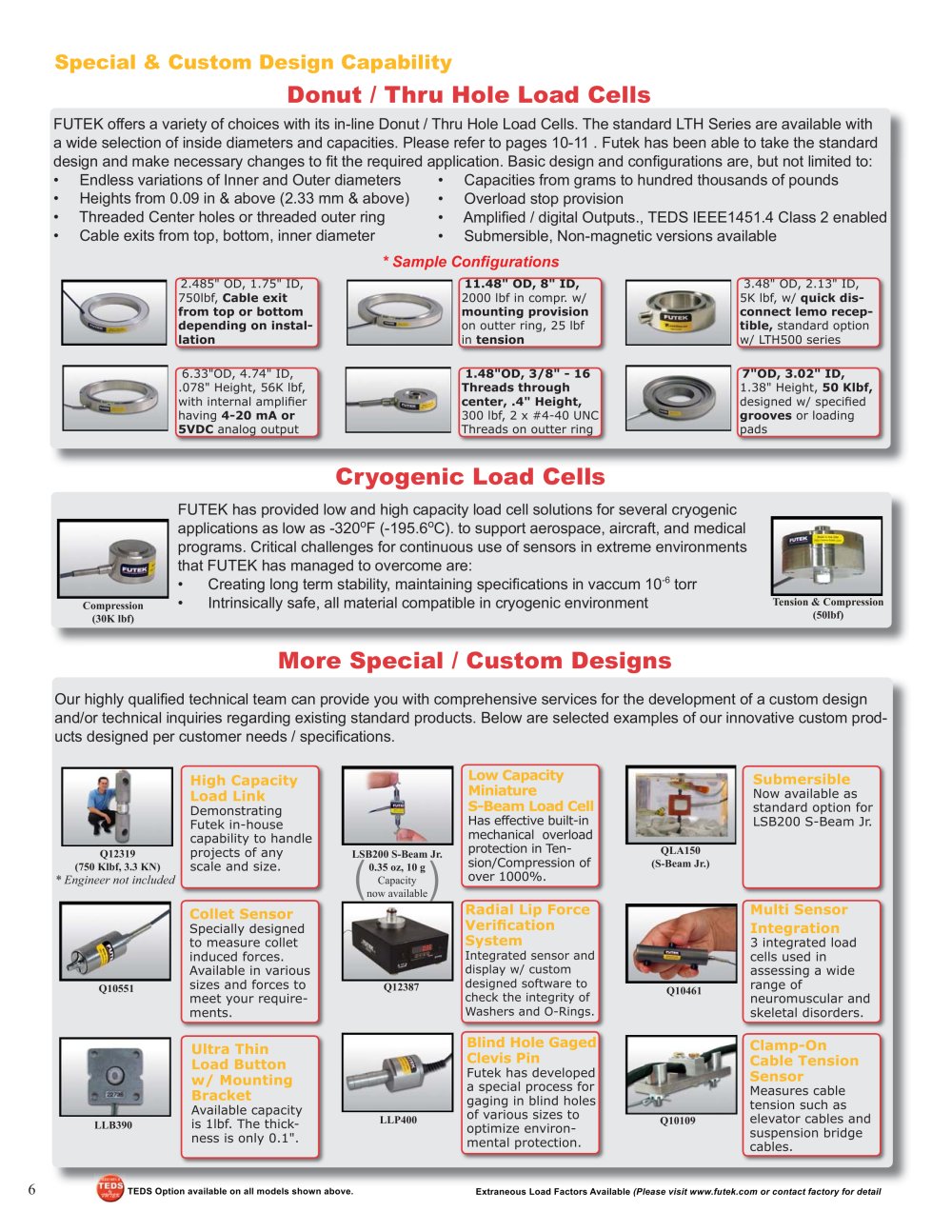

| | | Special & Custom Design Capability | | |
| | | |
| | | FUTEK offers a variety of choices with its in-line Donut/Thru Hole Load Cells. The standard LTH Series are available with a wide selection of inside diameters and capacities. Please refer to pages 10-11 . Futek has been able to take the standard design and make necessary changes to fit the required application. Basic design and configurations are, but not limited to: • EndlessvariationsoflnnerandOuterdiameters • Capacities from grams to hundred thousands of pounds • Heights from 0.09 in & above (2.33 mm & above) • Overload stop provision • Threaded Center holes or threaded outer ring • Amplified / digital Outputs., TEDS IEEE1451.4 Class 2 enabled • Cableexitsfromtop,bottom,innerdiameter • Submersible.Non-magneticversionsavailable * Sample Configurations | | |
| | | |
| | | 2.485" OD, 1.75" ID, 750lbf, Cable exit from top or bottom depending on installation | | 11.48" OD, 8" ID, 2000 lbf in compr. w/ mounting provision on outter ring, 25 lbf in tension | | 3.48" OD, 2.13" ID, 5K lbf, w/ quick disconnect lemo recep- tible, standard option w/ LTH500 series | | |
| | | |
| | | |
| | | |
| | | 6.33"OD, 4.74" ID, .078" Height, 56K lbf, with internal amplifier having 4-20 mA or 5VDC analog output | | 1.48"OD, 3/8" - 16 Threads through center, .4" Height, 300 lbf, 2 x #4-40 UNC Threads on outter ring | | 7"OD, 3.02" ID, 1.38" Height, 50 Klbf, designed w/ specified grooves or loading pads | | |
| | | |
| | | |
| | | Cryogenic Load Cells FUTEK has provided low and high capacity load cell solutions for several cryogenic applications as low as -320°F (-195.6°C). to support aerospace, aircraft, and medical programs. Critical challenges for continuous use ofsensors in extreme environments that FUTEK has managed to overcome are: • Creating long term stability, maintaining specifications in vaccum 10"6 torr • Intrinsically safe, all material compatible in cryogenic environment | | |
| | | Tension & Compression (50lbf) | | |
| | | Compression (30K lbf) | | |
| | | |
| | | |
| | | |
| | | More Special / Custom Designs | | |
| | | |
| | | Our highly qualified technical team can provide you with comprehensive services for the development of a custom design and/ortechnical inquiries regarding existing standard products. Beloware selected examples ofour innovative custom products designed per customer needs / specifications. | |
| | | |
| | | Low Capacity Miniature S-Beam Load Cell Has effective built-in mechanical overload protection in Tension/Compression of over 1000%. | | |
| | | Cnhmprcihlp Now available as standard option for LSB200 S-Beam Jr. | | |
| | | High Capacity Load Link Demonstrating Futek in-house capability to handle projects of any scale and size. | | |
| | | |
| | | QLA150 (S-Beam Jr.) | | |
| | | Q12319 (750 Klbf, 3.3 KN) * Engineer not included | | | LSB200 S-Beam Jr. / 0.35 oz, 10 g \ ( Capacity ) \now available / | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | Multi Sensor Integration 3 integrated load cells used in assessing a wide range of neuromuscular and skeletal disorders. | | |
| | | Radial Lip Force Verification System Integrated sensor and display w/ custom designed software to check the integrity of Washers and O-Rings. | | |
| | | Collet Sensor Specially designed to measure collet induced forces. Available in various sizes and forces to meet your requirements. | | |
| | | Q12387 | | |
| | | Q10551 | | |
| | | Q10461 | | |
| | | |
| | | |
| | | |
| | | | |
| | | |
| | | Blind Hole Gaged Clevis Pin Futek has developed a special process for gaging in blind holes of various sizes to optimize environmental protection. | | |
| | | Clamp-On Cable Tension Sensor Measures cable | | |
| | | Ultra Thin Load Button w/ Mounting Bracket Available capacity is llbf. The thickness is only 0.1". | | |
| | | LLP400 | | |
| | | Q10109 | | |
| | | LLB390 | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | 6 | | |
| | | TEDS Option available on all models shown above. | | |
| | | Extraneous Load Factors Available (Please visitwww.futek.com orcontactfactoryfordetail | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
