For VCal^TM info & tutorial, visit www.vcal.net

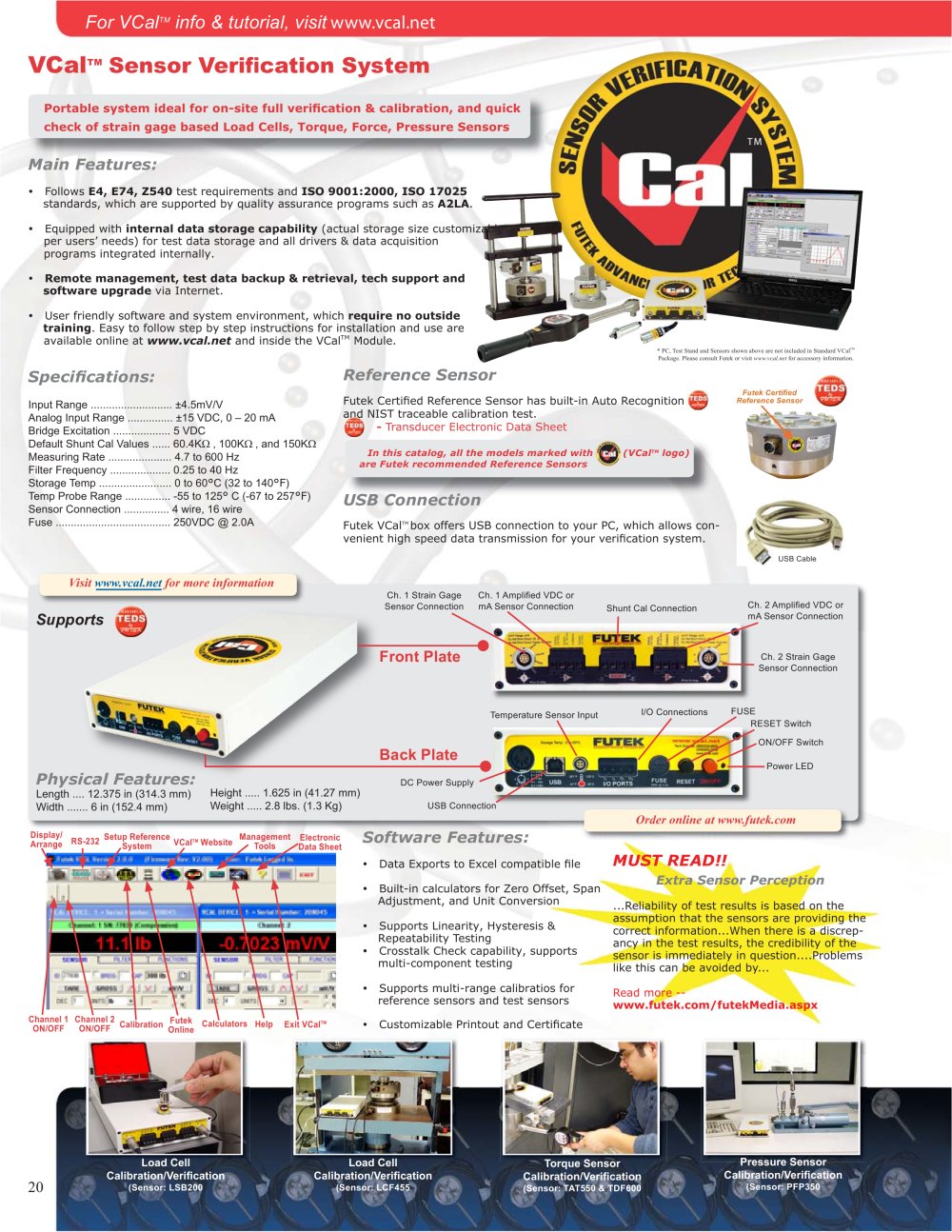

VCal^TM Sensor Verification System

Portable system ideal for on-site full verification & calibration, and quick check of strain gage based Industrial load cells, Torque, Force, Industrial pressure sensors

Main Features:

• Follows E4, E74, Z540 test requirements and ISO 9001:2000, ISO 17025

standards, which are supported by quality assurance programs such as A2LA.

• Equipped with internal data storage capability (actual storage size customize per users' needs) for test data storage and all drivers & industrial data acquisition

programs integrated internally.

• Remote management, test data backup & retrieval, tech support and software upgrade via Internet.

• User friendly software and system environment, which require no outside

training. Easy to follow step by step instructions for installation and use are

available online at www.vcal.net and inside the VCal^TM Module.

* PC, Test stand and Sensors shown above are not included in Standard VCal™ Package. Please consult Futek or visit wwwvcal.net for accessory information.

Reference Sensor

Specifications:

Futek Certified Reference Sensor

Futek Certified Reference Sensor has built-in Auto Recognition B ajjd NIST traceable calibration test.

- Transducer Electronic Data Sheet

Input Range...........................±4.5mV/V

Analog Input Range...............±15 VDC, 0-20mA

Bridge Excitation...................5 VDC

Default Shunt Cal Values......60.4Kfi , 100Kfi , and 150Kfi

' Measuring Rate.....................4.7to600 Hz

Filter Frequency....................0.25 to 40 Hz

Storage Temp........................0 to 60°C (32 to 140°F)

Temp Probe Range...............-55 to 125° C (-67 to 257°F)

Sensor Connection...............4wlre,16wlre

Industrial fuse......................................250VDC @ 2.0A

In this catalog, all the models marked with are Futek recommended Reference Sensors

(VCal" logo)

USB Connection

Futek VCal^TMbox offers USB connection to your PC, which allows convenient high speed data transmission foryourverification system.

USBCable

Visit www.vcal.net for more information

Ch. 1 Amplified VDC or mA Sensor Connection

Ch.2 Amplified VDC or mA Sensor Connection

Shunt Cal Connection

Ch. 2 Strain Gage Sensor Connection

FUSE

RESET Switch

ON/OFF Switch Power LED

Physical Features:

Length .... 12.375 In (314.3 mm) Width.......6ln (152.4 mm)

Height..... 1.625in(41.27 mm)

Weight.....2.8 lbs. (1.3 Kg)

USB Connection

Order online at www.futek.com

Software Features: »

• Data Exports to Excel compatible file

• Built-in calculators for Zero Offset, Span Adjustment, and Unit Conversion

• Supports Linearity, Hysteresis & Repeatability Testing

• Crosstalk Check capability, supports multi-component testing

• Supports multi-range calibratios for reference sensors and test sensors

• Customizable Printout and Certifícate

Display/ Arrange

_RS232 Setup Reference,,- „.., , ., Management Electronic ^RS-232 ,System ^VCal ^Website y Tools /Data Sheet

MUST READ!!

Extra Sensor Perception

...Reliability of test results is based on the assumption that the sensors are providing the correct information...When there is a discrepancy in the test results, the credibility of the sensor is immediately in question....Problems

like this can be avoided by... Read more --

www.futek.com/futekMedia.aspx

^CON/OFF¹ ^CON/OFF² ^Cali'^bration ¿¡¡¡¡toe Calculators Help Exit VCal™

J_J

Pressure Sensor Calibration/Verification

.¿¡(Sensor: PFP350

Load Cell .Calibration/Verification

f r,(Sensor: LCF455

Torque sensor Calibration/Verification (Sensor: TAT550 & TDF600

Calibration/Verification (Sensor: LSB200
