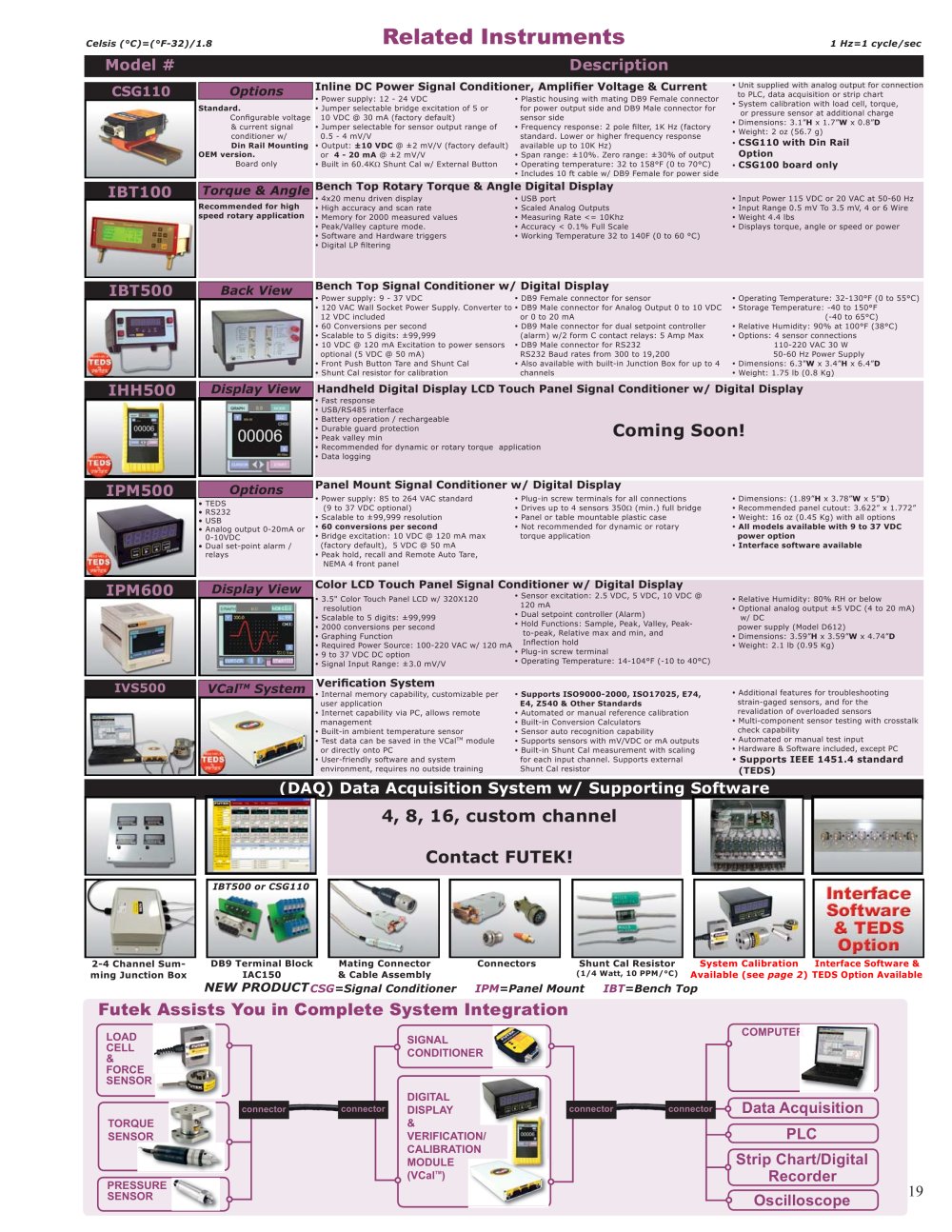

dated Instruments

Celsis (°C) = (°F-32)/1.8

1 Hz=1 cycle/sec

Model #

Description


	CSG110	*Options \|*
		Standard. Configurable voltage & current signal conditioner w/ Din Rail Mounting OEM version. Board only
	IBT100
	Ç=3L.	Recommended for high speed rotary application
	IBT500	*Back View*

Inline DC Power Signal Conditioner, Amplifier Voltage & Current

• Unit supplied with analog output for connection to PLC, industrial data acquisition or strip chart

• System calibration with industrial load cell, torque, or industrial pressure sensor at additional charge

• Dimensions: 3.1"H x 1.7"W x 0.8"D

• Weight: 2 oz (56.7 g)

• CSG110 with Din Rail Option

• CSG100 board only

Power supply: 12 - 24 VDC

Jumper selectable bridge excitation of 5 or

10 VDC @ 30 mA (factory default)

Jumper selectable for sensor output range of

0.5 - 4 mV/V

Output: ±10 VDC @ ±2 mV/V (factory default)

or 4 - 20 mA @ ±2 mV/V

Built in 60.4Kn Shunt Cal w/ External Button

• Plastic housing with mating DB9 Female connector for power output side and DB9 Male connector for sensor side

• Frequency response: 2 pole filter, IK Hz (factory standard. Lower or higher frequency response available up to 10K Hz)

• Span range: ±10%. Zero range: ±30% of output

• Operating temperature: 32 to 158°F (0 to 70°C)

• Includes 10 ft cable w/ DB9 Female for power side

Bench Top Rotary Torque & Angle Digital Display

4x20 menu driven display High accuracy and scan rate Memory for 2000 measured values Peak/Valley capture mode. Software and Hardware triggers Digital LPfiltering

• USB port

• Scaled Analog Outputs

• Measuring Rate <= lOKhz

• Accuracy < 0.1% Full Scale

• Working Temperature 32 to 140F (0 to 60 °C)

• Input Power 115 VDC or 20 VAC at 50-60 Hz

• Input Range 0.5 mV To 3.5 mV, 4 or 6 Wire

• Weight 4.4 lbs

• Displays torque, angle or speed or power

Bench Top Signal Conditioner w/

Power supply: 9 - 37 VDC •

120 VAC Wall Socket Power Supply. Industrial converter to •

12 VDC included

60 Conversions per second •

Scalable to 5 digits: ±99,999 10 VDC @ 120 mA Excitation to power sensors • optional (5 VDC @ 50 mA)

Front Push Button Tare and Shunt Cal •

Shunt Cal resistor for calibration

Digital Display

DB9 Female connector for sensor

DB9 Male connector for Analog Output 0 to 10 VDC

or 0 to 20 mA

DB9 Male connector for dual setpoint controller

(alarm) w/2 form C contact relays: 5 Amp Max

DB9 Male connector for RS232

RS232 Baud rates from 300 to 19,200

Also available with built-in Junction box for up to 4

channels

• Operating Temperature: 32-130°F (0 to 55°C) ¹ Storage Temperature: -40 to 150°F

(-40 to 65°C)

• Relative Humidity: 90% at 100°F (38°C) ■ Options: 4 sensor connections

110-220 VAC 30 W 50-60 Hz Power Supply

• Dimensions: 6.3"W x 3.4"H x 6.4"D

• Weight: 1.75 lb (0.8 Kg)

IHH500

Display View

Handheld Digital Display LCD Touch Panel Signal Conditioner w/ Digital Display

• Fast response

• USB/RS485 interface

• Battery operation / rechargeable

: ^ ^g_ey^al^protection Coming Soon!

• Recommended for dynamic or rotary torque application

• Data logging

Panel Mount Signal Conditioner w/ Digital Display

IPM500

Options

Power supply: 85 to 264 VAC standard (9 to 37 VDC optional) Scalable to ±99,999 resolution 60 conversions per second Bridge excitation: 10 VDC @ 120 mA max (factory default), 5 VDC @ 50 mA Peak hold, recall and Remote Auto Tare, NEMA 4 front panel

• Plug-in screw terminals for all connections

• Drives up to 4 sensors 350n (min.) full bridge

• Panel or table mountable plastic case

• Not recommended for dynamic or rotary torque application

• Dimensions: (1.89"H x 3.78"W x 5"D)

• Recommended panel cutout: 3.622" x 1.772"

• Weight: 16 oz (0.45 Kg) with all options

• All models available with 9 to 37 VDC power option

• Interface software available

• TEDS

• RS232

• USB

• Analog output 0-20mA or 0-10VDC

• Dual set-point alarm / relays


	IPM600	*Display View*

	IVS500	*VCal^TM System*
		¡ÜJF —

Color LCD Touch Panel Signal Conditioner w/ Digital Display

3.5" Color Touch Panel LCD w/ 320X120 *

resolution

Scalable to 5 digits: ±99,999 *

2000 conversions per second *

Graphing Function

Required Power source: 100-220 VAC w/ 120 mA 9 to 37 VDC DC option '

Signal Input Range: ±3.0 mV/V *

Sensor excitation: 2.5 VDC, 5 VDC, 10 VDC @ 120 mA

Dual setpoint controller (Alarm) Hold Functions: Sample, Peak, Valley, Peak-to-peak, Relative max and min, and Inflection hold Plug-in screw terminal

Operating Temperature: 14-104°F (-10 to 40°C)

• Relative Humidity: 80% RH or below

• Optional analog output ±5 VDC (4 to 20 mA) w/ DC

power supply (Model D612)

• Dimensions: 3.59"H x 3.59"W x 4.74"D

• Weight: 2.1 lb (0.95 Kg)

Verification System

• Internal memory capability, customizable per user application

• Internet capability via PC, allows remote management

• Built-in ambient temperature sensor manufacturer

• Test data can be saved in the VCal™ module or directly onto PC

• User-friendly software and system environment, requires no outside training

• Additional features for troubleshooting strain-gaged sensors, and for the revalidation of overloaded sensors

• Multi-component sensor testing with crosstalk check capability

• Automated or manual test input

• Hardware & Software included, except PC

• Supports IEEE 1451.4 standard (TEDS)

• Supports ISO9000-2000, ISO17025, E74, E4, Z540 & Other Standards

• Automated or manual reference calibration

• Built-in Conversion Calculators

• Sensor auto recognition capability

• Supports sensors with mV/VDC or mA outputs

• Built-in Shunt Cal measurement with scaling for each input channel. Supports external Shunt Cal resistor

(DAQ) Data Acquisition system w/ Supporting Software

4, 8, 16, custom channel Contact FUTEK!

IBT500 or CSG110

DB9 Terminal block IAC150

Mating Connector & Cable assembly manufacturer

Industrial connectors Shunt Cal Resistor

(1/4 Watt, 10 PPM/°C)

IPM=Panel Mount

System Calibration Interface Software & Available (see page 2) TEDS Option Available op

2-4 Channel Summing Junction Box

NEW PRODUCT CSG=Signal Conditioner

Futek Assists You in Complete System Integration

SIGNAL CONDITIONER

DIGITAL DISPLAY

VERIFICATION/ CALIBRATION MODULE (VCal™)

Strip Chart/Digital Recorder
