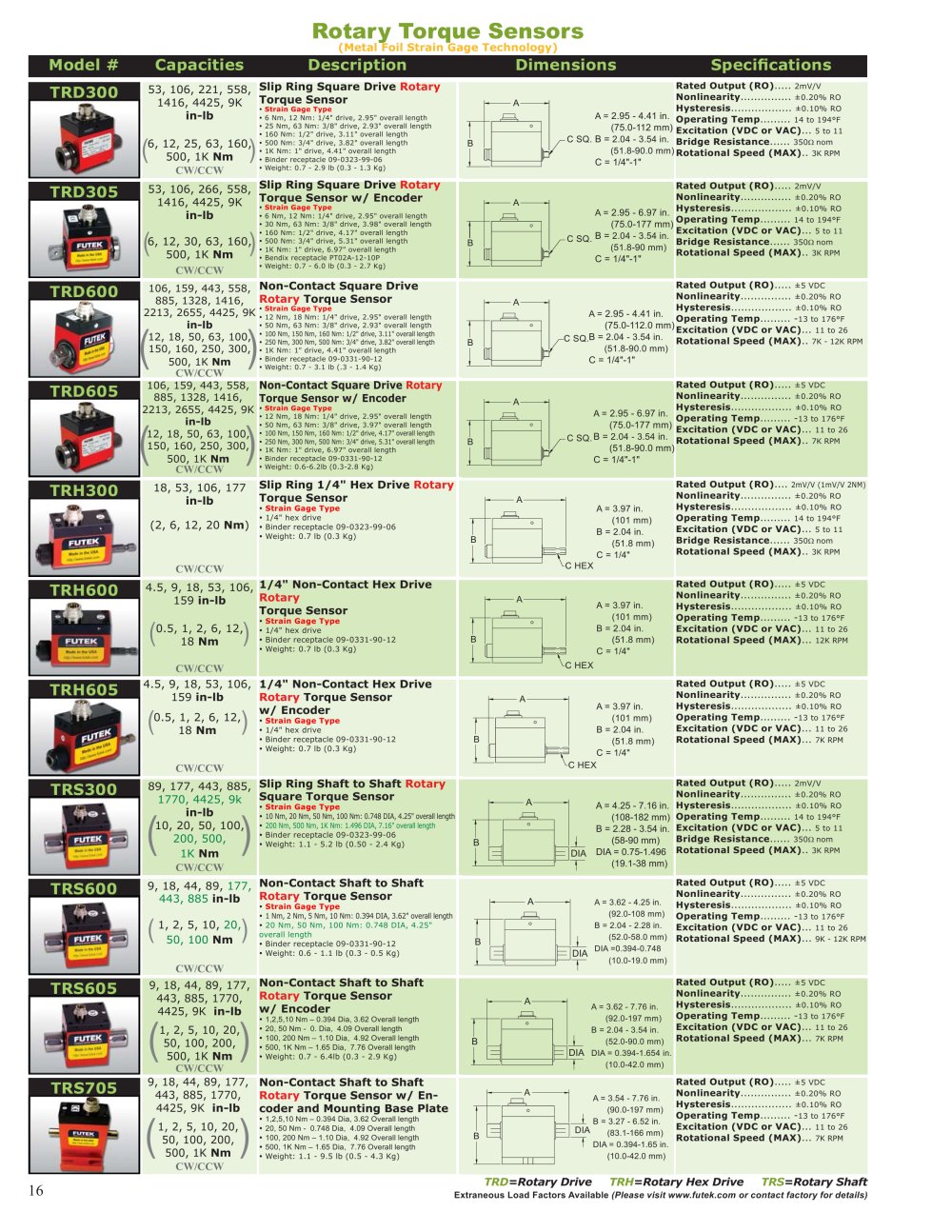

tary Torque Sensi

Metal Foil Strain gage Technology

Model # Capacities

Description

Dimensions

Specifications

Slip ring Square Drive Rotary Torque sensor

• Strain Gage Type

• 6 Nm, 12 Nm: 1/4" drive, 2.95" overall length

• 25 Nm, 63 Nm: 3/8" drive, 2.93" overall length

• 160 Nm: 1/2" drive, 3.11" overall length

• 500 Nm: 3/4" drive, 3.82" overall length

• 1K Nm: 1" drive, 4.41" overall length

• Binder receptacle 09-0323-99-06

• Weight: 0.7 - 2.9 lb (0.3 - 1.3 Kg)

Slip Ring Square Drive Rotary Torque Sensor w/ Encoder

• Strain Gage Type

• 6 Nm, 12 Nm: 1/4" drive, 2.95" overall length

• 30 Nm, 63 Nm: 3/8" drive, 3.98" overall length

• 160 Nm: 1/2" drive, 4.17" overall length

• 500 Nm: 3/4" drive, 5.31" overall length

• 1K Nm: 1" drive, 6.97" overall length

• Bendix receptacle PT02A-12-10P

• Weight: 0.7 - 6.0 lb (0.3 - 2.7 Kg)

Non-Contact Square Drive Rotary Torque Sensor

• Strain Gage Type

• 12 Nm, 18 Nm: 1/4" drive, 2.95" overall length

• 50 Nm, 63 Nm: 3/8" drive, 2.93" overall length

• 100 Nm, 150 Nm, 160 Nm: 1/2" drive, 3.11" overall length

• 250 Nm, 300 Nm, 500 Nm: 3/4" drive, 3.82" overall length

• 1K Nm: 1" drive, 4.41" overall length

• Binder receptacle 09-0331-90-12

• Weight: 0.7 - 3.1 lb (.3 - 1.4 Kg)

Non-Contact Square Drive Rotary Torque Sensor w/ Encoder

• Strain Gage Type

• 12 Nm, 18 Nm: 1/4" drive, 2.95" overall length

• 50 Nm, 63 Nm: 3/8" drive, 3.97" overall length

• 100 Nm, 150 Nm, 160 Nm: 1/2" drive, 4.17" overall length

• 250 Nm, 300 Nm, 500 Nm: 3/4" drive, 5.31" overall length

• 1K Nm: 1" drive, 6.97" overall length

• Binder receptacle 09-0331-90-12

• Weight: 0.6-6.2lb (0.3-2.8 Kg)

Rated Output (RO).....2mv/v

Nonlinearity...............±0.20% ro

Hysteresis..................±0.10% ro

A = 2.95 - 4.41 in. Operating Temp......... 14 to 194°F

(75.0-112 mm) Excitation (VDC or VAC)... 5 to 11

[ I /~ ^C ^SQ. ^B ^- ^2.04 ^- ^3.54 ^in. Bridge Resistance...... 350n nom

W ^(51.8^-90.0 ^mm)Rotational Speed (MAX).. 3K rpm

r c = 1/4"-1"

Rated Output (RO)..... 2mv/v

Nonlinearity...............±0.20% ro

_A = ₂₉₅ _- 6 ₉₇ _in Hysteresis.................. ±0.10% ro

(75.0-177 mm) ^Operatting I^P"-;;;-" ^to ¹⁹⁴°^F_C _SQ b = 2.04 - 3.54 in. B^dt^cv^ ^or ^VAC)..-⁵ ^to ¹¹

-^C ^sq. ₍₅₁ ₈ ₉₀ ₎ Bridge Resistance...... 350nnom

53, 106, 221, 558, 1416, 4425, 9K in-lb

TRD300

6, 12, 25, 63, 160,

V 500, 1K Nm ⁾CW/CCW

53, 106, 266, 558, 1416, 4425, 9K

in-lb

(6, 12, 30, 63, 160 )

500, 1K Nm

CW/CCW

106, 159, 443, 558, 885, 1328, 1416, 2213, 2655, 4425, 9K in-lb

12, 18, 50, 63, 100, 150, 160, 250, 300₎500, 1K Nm CW/CCW

106, 159, 443, 558, 885, 1328, 1416, 2213, 2655, 4425, 9K

in-lb

12, 18, 50, 63, 100, 150, 160, 250, 300₎500, 1K Nm CW/CCW

TRD305

-A-

C = 1/4"-1"

^mm) Rotational Speed (MAX).. 3K rpm

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

TRD600

A = 2.95 - 4.41 in.

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

n - ^fi¹²⁰ ■ Excitation (VDC or VAC)... 11 to 26 ^SQ.B - ^2.04 ^- ^3.54 ^in. Rotational Speed (MAX).. 7K - 12K rpm u/ (51.8-90.0 mm)

F C - 1/4"-1"

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

_A = ₂₉₅ _- ₆₉₇ _in ^Hysteresis±^0.10% ^RO^A ²;⁹⁵„ „⁹' . Operating Temp......... -13 to 176°F

⁽⁷⁵°^-17⁷_/,^mm) Excitation (VDC or VAC)... 11 to 26 ^C ^SQ.^B ^- ^2.04 ^- ^3.54 ^in. Rotational Speed (MAX).. 7K rpm

(51.8-90.0 mm)

C - 1/4"-1"

TRD605

Rated Output (RO).... 2mV/V (1mV/V 2NM)

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... 14 to 194°F

Excitation (VDC or VAC)... 5 to 11

Bridge Resistance...... 350nnom

Rotational Speed (MAX).. 3K rpm

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

Excitation (VDC or VAC)... 11 to 26 Rotational Speed (max)... 12K rpm

18 53 106 177 Slip Ring 1/4" Hex Drive Rotary i_n-lb Torque Sensor

• Strain Gage Type

• 1/4" hex drive

(2, 6, 12, 20 Nm) . Binder receptacle 09-0323-99-06

• Weight: 0.7 lb (0.3 Kg)

TRH300

-A-

A = 3.97 in.

(101 mm) B = 2.04 in.

(51.8 mm) C = 1/4"

C HEX

CW/CCW

4.5, 9, 18, 53, 106,

159 in-lb

1/4" Non-Contact Hex Drive Rotary

Torque Sensor

• Strain Gage Type

• 1/4" hex drive

• Binder receptacle 09-0331-90-12

• Weight: 0.7 lb (0.3 Kg)

TRH600

-A-

A = 3.97 in.

(101 mm) B = 2.04 in.

(51.8 mm)

C = 1/4"

(0.5, 1, 2, 6, 12,) ⁽ 18 Nm ⁾

CW/CCW

4.5, 9, 18, 53, 106, 159 in-lb

(0.5, 1, 2, 6, 12,) V 18 Nm ⁾

C HEX

1/4" Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder

• Strain Gage Type

• 1/4" hex drive

• Binder receptacle 09-0331-90-12

• Weight: 0.7 lb (0.3 Kg)

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

Excitation (VDC or VAC)... 11 to 26 Rotational Speed (MAX)... 7K rpm

TRH605

-A-

A = 3.97 in.

(101 mm) B = 2.04 in.

(51.8 mm)

C = 1/4"

C HEX

CW/CCW

89, 177, 443, 885, 1770, 4425, 9k

(^in-lb10, 20, 50, 100, 200, 500, ₎1K Nm

Slip Ring Shaft to Shaft Rotary Square Torque Sensor

• Strain Gage Type

• 10 Nm, 20 Nm, 50 Nm, 100 Nm: 0.748 DIA, 4.25" overall length

• 200 Nm, 500 Nm, 1K Nm: 1.496 DIA, 7.16" overall length

• Binder receptacle 09-0323-99-06

• Weight: 1.1 - 5.2 lb (0.50 - 2.4 Kg)

Rated Output (RO)..... 2mv/v

Nonlinearity...............±0.20% ro

A - 4.25 - 7.16 in. Hysteresis.................. ±0.10% ro

(108-182 mm) Operating Temp......... 14 to 194°F

B - 2.28 - 3.54 in. Excitation (VDC or VAC)... 5 to 11

(58_-90 _mm) Bridge Resistance...... 350nnom

DIA _- 0^5^496 Rotational Speed (MAX).. 3K rpm

(19.1-38 mm)

li-

CW/CCW

9, 18, 44, 89, 177, 443, 885 in-lb

V 1, 2, 5, 10, 20,)

V 50, 100 Nm ⁾

Non-Contact Shaft to Shaft Rotary Torque Sensor

• Strain Gage Type

• 1 Nm, 2 Nm, 5 Nm, 10 Nm: 0.394 DIA, 3.62" overall length

• 20 Nm, 50 Nm, 100 Nm: 0.748 DIA, 4.25" overall length

• Binder receptacle 09-0331-90-12

• Weight: 0.6 - 1.1 lb (0.3 - 0.5 Kg)

Non-Contact Shaft to Shaft Rotary Torque Sensor w/ Encoder

• 1,2,5,10Nm- 0.394 Dla, 3.62 Overalllength

• 20, 50 Nm - 0. Dla, 4.09 Overall length

• 100, 200 Nm-1.10 Dla, 4.92 Overalllength

• 500,1KNm-1.65Dla, 7.76 Overalllength

• Weight: 0.7 - 6.4lb (0.3 - 2.9 Kg)

Non-Contact Shaft to Shaft Rotary Torque Sensor w/ Encoder and Mounting Base Plate

• 1,2,5,10Nm- 0.394 Dla, 3.62 Overalllength

• 20, 50 Nm - 0.748 Dla, 4.09 Overall length

• 100, 200 Nm-1.10 Dla, 4.92 Overalllength

• 500,1KNm-1.65Dla, 7.76 Overalllength

• Weight: 1.1 - 9.5 lb (0.5 - 4.3 Kg)

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

Excitation (VDC or VAC)... 11 to 26 Rotational Speed (MAX)... 9K - 12K rpm

TRS600

A = 3.62 - 4.25 in.

(92.0-108 mm) B = 2.04 - 2.28 in.

(52.0-58.0 mm)

DIA =0.394-0.748

(10.0-19.0 mm)

CW/CCW

9, 18, 44, 89, 177, 443, 885, 1770, 4425, 9K in-lb

(1, 2, 5, 10, 20, 50, 100, 200, ₎500, 1K Nm CW/CCW

9, 18, 44, 89, 177, 443, 885, 1770, 4425, 9K in-lb

(1, 2, 5, 10, 20, v 50, 100, 200, ₎500, 1K Nm CW/CCW

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

Excitation (VDC or VAC)... 11 to 26 Rotational Speed (MAX)... 7K rpm

TRS605

— A—

A = 3.62 - 7.76 in.

(92.0-197 mm) B = 2.04 - 3.54 in. i (52.0-90.0 mm)

DIA DIA = 0.394-1.654 in. ~t~ (10.0-42.0 mm)

Rated Output (RO).....±5 vdc

Nonlinearity...............±0.20% ro

Hysteresis.................. ±0.10% ro

Operating Temp......... -13 to 176°F

Excitation (VDC or VAC)... 11 to 26 Rotational Speed (MAX)... 7K rpm

TRS705

A = 3.54 - 7.76 in.

(90.0-197 mm) B = 3.27 - 6.52 in.

(83.1-166 mm) DIA = 0.394-1.65 in.

(10.0-42.0 mm)

TRD=Rotary Drive TRH=Rotary Hex Drive TRS=Rotary Shaft

Extraneous Load Factors Available (Please visit www.futek.com orcontactfactoryfordetails)
