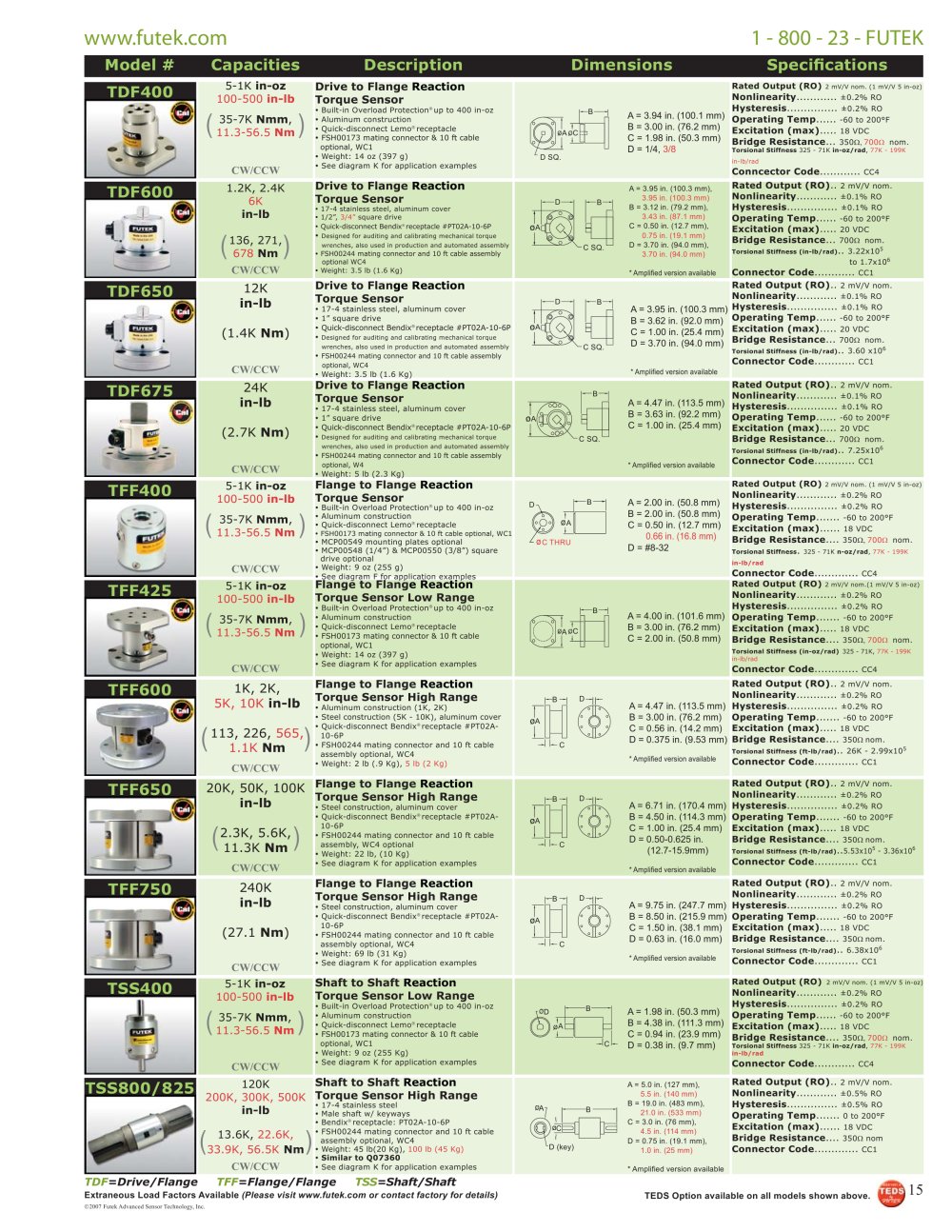

www.futek.com

)0 - 23 - FUTEK

model # capacities

description

dimensions

specifications

5-1K in-oz 100-500 in-lb

Drive to Flange Reaction Torque sensor

• Built-in Overload Protection^up to 400 in-oz

• Aluminum construction

• Quick-disconnect Lemo^receptacle

• FSH00173 mating connector & 10 ft cable optional, WC1

• Weight: 14 oz (397 g)

• See diagram K for application examples

Drive to Flange Reaction Torque Sensor

• 17-4 stainless steel, aluminum cover

• 1/2", 3/4" square drive

• Quick-disconnect Bendix* receptacle #PT02A-10-6P

• Designed for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly

• FSH00244 mating connector and 10 ft cable assembly optional WC4

• Weight: 3.5 lb (1.6 Kg)

Drive to Flange Reaction Torque Sensor

• 17-4 stainless steel, aluminum cover

• 1" square drive

• Quick-disconnect Bendix®receptacle #PT02A-10-6P

• Designed for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly

• FSH00244 mating connector and 10 ft cable assembly optional, WC4

• Weight: 3.5 lb (1.6 Kg)

Drive to Flange Reaction Torque Sensor

• 17-4 stainless steel, aluminum cover

• 1" square drive

• Quick-disconnect Bendix®receptacle #PT02A-10-6P

• Designed for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly

• FSH00244 mating connector and 10 ft cable assembly optional, W4

• Weight: 5 lb (2.3 Kg)

Flange to Flange Reaction Torque Sensor

• Built-in Overload Protection^up to 400 in-oz

• Aluminum construction

• Quick-disconnect Lemo^receptacle

• FSH00173 mating connector & 10 ft cable optional, WC1

• MCP00549 mounting plates optional

• MCP00548 (1/4") & MCP00550 (3/8") square drive optional

• Weight: 9 oz (255 g)

• See diagram F for application examples

Flange to Flange Reaction Torque Sensor Low Range

• Built-in Overload Protection^up to 400 in-oz

• Aluminum construction

• Quick-disconnect Lemo^receptacle

• FSH00173 mating connector & 10 ft cable

optional, WC1

• Weight: 14 oz (397 g)

• See diagram K for application examples

Flange to Flange Reaction Torque Sensor High Range

• Aluminum construction (1K, 2K)

• Steel construction (5K - 10K), aluminum cover Quick-disconnect Bendix^receptacle #PT02A-

10-6P

FSH00244 mating connector and 10 ft cable assembly optional, WC4

• Weight: 2 lb (.9 Kg), 5 lb (2 Kg)

Flange to Flange Reaction Torque Sensor High Range

• Steel construction, aluminum cover

• Quick-disconnect Bendix^receptacle #PT02A-

10-6P

• FSH00244 mating connector and 10 ft cable assembly, WC4 optional

• Weight: 22 lb, (10 Kg)

• See diagram K for application examples

Flange to Flange Reaction Torque Sensor High Range

• Steel construction, aluminum cover

• Quick-disconnect Bendix^receptacle #PT02A-

10-6P

• FSH00244 mating connector and 10 ft cable assembly optional, WC4

• Weight: 69 lb (31 Kg)

• See diagram K for application examples

Shaft to Shaft Reaction Torque Sensor Low Range

• Built-in Overload Protection^up to 400 in-oz

• Aluminum construction

• Quick-disconnect Lemo® receptacle

• FSH00173 mating connector & 10 ft cable optional, WC1

• Weight: 9 oz (255 Kg)

• See diagram K for application examples

Shaft to Shaft Reaction Torque Sensor High Range

• 17-4 stainless steel

• Male shaft w/ keyways

• Bendix^receptacle: PT02A-10-6P

• FSH00244 mating connector and 10 ft cable assembly optional, WC4

• Weight: 45 lb(20 Kg), 100 lb (45 Kg)

• Similar to Q07360

• See diagram K for application examples

Rated Output (RO) 2 mv/v nom. (1 mV/v 5 in-oz)

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp...... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance... 350П, 700П nom.

Torsional Stiffness 325 - 71K in-oz/rad, 77K - 199K in-lb/rad

Conncector Code............CC4

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.1% ro

Hysteresis............... ±0.1% ro

Operating Temp...... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 700Q nom.

Torsional Stiffness (in-lb/rad).. 3.22x10⁵to 1.7x10⁶

Connector Code............CC1

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.1% ro

Hysteresis............... ±0.1% ro

Operating Temp...... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 700Q nom. Torsional Stiffness (in-lb/rad).. 3.60 x10⁶Connector Code............CC1

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.1% ro

Hysteresis............... ±0.1% ro

Operating Temp...... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 700Q nom. Torsional Stiffness (in-lb/rad).. 7.25x10⁶Connector Code............CC1

Rated Output (RO) 2 mv/v nom. (1 mv/v 5 in-oz)

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp....... -60 to 200°f

Excitation (max)...... 18 vdc

Bridge Resistance.... 350n,700n nom. Torsional Stiffness. 325 - 71K n-oz/rad,77K - 199K in-lb/rad

Connector Code.............CC4

Rated Output (RO) 2 mv/v nom.(1 mv/v 5 in-oz)

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp....... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance.... 350n,700n nom. Torsional Stiffness (in-oz/rad) 325 - 71K, 77K - 199K in-lb/rad

Connector Code.............CC4

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp....... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance.... 350^nom. Torsional Stiffness (ft-lb/rad).. 26K - 2.99x10⁵Connector Code.............CC1

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp....... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance.... 350^nom.

Torsional Stiffness (ft-lb/rad) ..5.53x10⁵ - 3.36x10⁶

Connector Code.............CC1

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp....... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance.... 350^nom. Torsional Stiffness (ft-lb/rad).. 6.38x10⁶Connector Code.............CC1

Rated Output (RO) 2 mv/v nom. (1 mv/v 5 in-oz)

Nonlinearity............ ±0.2% ro

Hysteresis............... ±0.2% ro

Operating Temp...... -60 to 200°f

Excitation (max)..... 18 vdc

Bridge Resistance.... 350n,700n nom. Torsional Stiffness 325 - 71K in-oz/rad,77K - 199K in-lb/rad

Connector Code............CC4

Rated Output (RO).. 2 mv/v nom.

Nonlinearity............ ±0.5% ro

Hysteresis............... ±0.5% ro

Operating Temp.......0 to 200°f

Excitation (max)...... 18 vdc

Bridge Resistance.... 350Q nom Connector Code.............CC1

tdf400

A = 3.94 in. (100.1 mm) B = 3.00 in. (76.2 mm) C = 1.98 in. (50.3 mm) D = 1/4, 3/8

35-7K Nmm, 3-56.5 Nm

V11

CW/CCW 1.2K, 2.4K

in-lb

A = 3.95 in. (100.3 mm), 3.95 in. (100.3 mm) B = 3.12 in. (79.2 mm),

3.43 in. (87.1 mm) C = 0.50 in. (12.7 mm),

0.75 in. (19.1 mm) D = 3.70 in. (94.0 mm),

3.70 in. (94.0 mm)

* Amplified version available

tdf600

C SQ.¹-

136, 271, V 678 Nm ⁾CW/CCW 12k in-lb

tdf650

A = 3.95 in. (100.3 mm) B = 3.62 in. (92.0 mm) C = 1.00 in. (25.4 mm)

D = 3.70 in. (94.0 mm)

* Amplified version available

(1.4k Nm)

CW CCW

24k

in-lb

(2.7k Nm)

CW CCW

5-1K in-oz 100-500 in-lb

tdf675

A = 4.47 in. (113.5 mm)

B = 3.63 in. (92.2 mm) C = 1.00 in. (25.4 mm)

1. 0

* Amplified version available

tff400

A = 2.00 in. (50.8 mm)

B = 2.00 in. (50.8 mm)

C = 0.50 in. (12.7 mm) 0.66 in. (16.8 mm) D = #8-32

_V3

5-7K Nmm, 3-56.5 Nm

^V11

CW CCW

5-1K in-oz 100-500 in-lb

35-7K Nmm, 11.3-56.5 Nm

tff425

A = 4.00 in. (101.6 mm)

B = 3.00 in. (76.2 mm)

C = 2.00 in. (50.8 mm)

CW CCW

1k, 2k, 5k, 10k in-lb

( 113, 226, 565,) V 1.1k Nm ⁾

CW CCW

20k, 50k, 100k

in-lb

tff600

h-B—I D-|f-

A = 4.47 in. (113.5 mm)

B = 3.00 in. (76.2 mm)

C = 0.56 in. (14.2 mm)

D = 0.375 in. (9.53 mm)

* Amplified version available

tff650

-B-j D—I)—

A = 6.71 in. (170.4 mm) B = 4.50 in. (114.3 mm) C = 1.00 in. (25.4 mm)

D = 0.50-0.625 in. (12.7-15.9mm)

* Amplified version available

-1 I—C

V 2.3k, 5.6k, )

V 11.3k Nm ⁾

CW CCW

240k

in-lb

(27.1 Nm)

tff750

A = 9.75 in. (247.7 mm) B = 8.50 in. (215.9 mm) C = 1.50 in. (38.1 mm)

D = 0.63 in. (16.0 mm)

* Amplified version available

-I

CW CCW 5-1K in-oz 100-500 in-lb

_V35-7K Nmm, ^V11.3-56.5 Nm

tss400

A = 1.98 in. (50.3 mm) B = 4.38 in. (111.3 mm) C = 0.94 in. (23.9 mm)

D = 0.38 in. (9.7 mm)

I0D

* V it

CW CCW

120K 200K, 300K, 500K

in-lb

A = 5.0 in. (127 mm), 5.5 in. (140 mm)

B = 19.0 in. (483 mm), 21.0 in. (533 mm)

C = 3.0 in. (76 mm), 4.5 in. (114 mm)

D = 0.75 in. (19.1 mm), 1.0 in. (25 mm)

tss800/825

Ö-B--i ]cd

13.6K, 22.6K,

33.9K, 56.5K Nm

CW CCW

*-D (key)

* Amplified version available

TEDS Option available on all models shown above.

TDF=Drive/Flange

TFF=Flange/Flange

TSS=Shaft/Shaft

,15

Extraneous Load Factors Available (Please visit www.futek.com orcontact factory fordetails)
