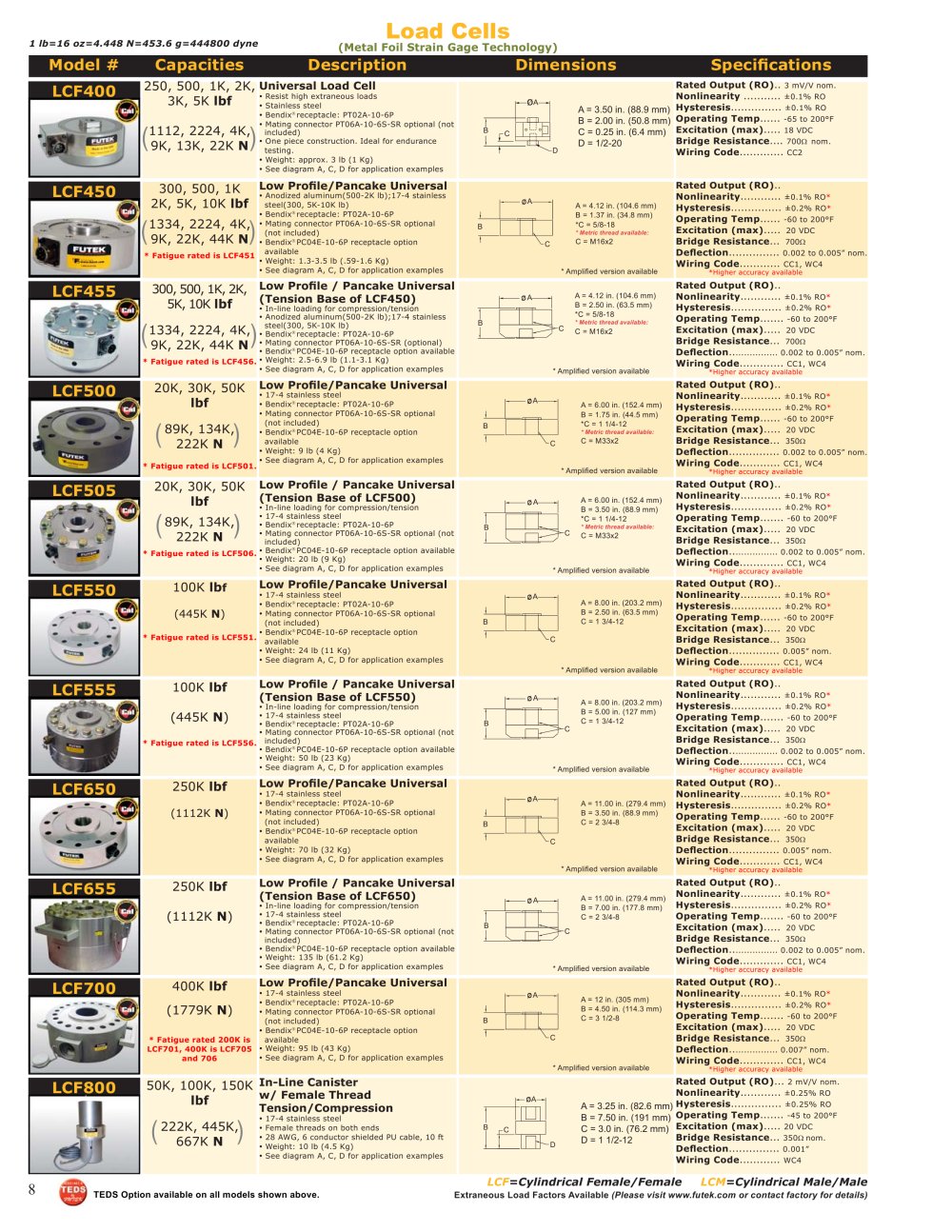

kuciu wens

(Metal Foil Strain gage Technology)

1 lb=16 oz=4.448 N=453.6 g=444800 dyne

Model # Capacities

Description

Dimensions

Specifications

250, 500, 1K, 2K, 3K, 5K lbf

(1112, 2224, 4KA V 9K, 13K, 22K N/

Universal Load cell

• Resist high extraneous loads

• Stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• One piece construction. Ideal for endurance testing.

• Weight: approx. 3 lb (1 Kg)

• See diagram A, C, D for application examples

Low Profile/Pancake Universal

• Anodized aluminum(500-2K lb);17-4 stainless steel(300, 5K-10K lb)

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 1.3-3.5 lb (.59-1.6 Kg)

• See diagram A, C, D for application examples

Low Profile / Pancake Universal

(Tension Base of LCF450)

• In-line loading for compression/tension

• Anodized aluminum(500-2K lb);17-4 stainless

steel(300, 5K-10K lb)

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR (optional)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 2.5-6.9 lb (1.1-3.1 Kg)

• See diagram A, C, D for application examples

Low Profile/Pancake Universal

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 9 lb (4 Kg)

• See diagram A, C, D for application examples

Low Profile / Pancake Universal (Tension Base of LCF500)

• In-line loading for compression/tension

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 20 lb (9 Kg)

• See diagram A, C, D for application examples

Low Profile/Pancake Universal

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 24 lb (11 Kg)

• See diagram A, C, D for application examples

Rated Output (RO).. 3 mV/V nom.

Nonlinearity........... ±0.1% ro

A = 3.50 in. (88.9 mm) Hysteresis...............±0.1%, ro

B = 2.00 in. (50.8 mm) Operating Temp...... -65 to 200°F

C = 0.25 in. (6.4 mm) Excitation (max)..... 18 vdc

D = 1/2-20 Bridge Resistance.... 700n nom.

Wiring Code.............CC2

LCF400


	l	—0A—-
	1 r^c	l-y-h
	1 r^c

ES3

Rated Output (RO)..

Nonlinearity............ ±0.1% ro*

Hysteresis...............±0.2% ro*

Operating Temp...... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 700Q

Deflection............... 0.002 to 0.005" nom.

Wiring Code............cci, WC4

*Higher accuracy available

Rated Output (RO)..

Nonlinearity............ ±0.1% ro*

Hysteresis...............±0.2% ro*

Operating Temp....... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 700Q

Deflection................. 0.002 to 0.005" nom.

Wiring Code.............cci, WC4

*Higher accuracy available

300, 500, 1K 2K, 5K, 10K lbf

(1334, 2224, 4K / ⁽ 9K, 22K, 44K N/

* Fatigue rated is LCF451

LCF450


	1	--0A--
	B	1 1

A = 4.12 in. (104.6 mm) B = 1.37 in. (34.8 mm) *C = 5/8-18 * Metric thread available: C= M16x2

* Amplified version available

A = 4.12 in. (104.6 mm) B = 2.50 in. (63.5 mm) *C = 5/8-18

* Metric thread available:

^C C = M16x2

300, 500, 1K, 2K, 5K, 10K lbf

₍1334, 2224, 4K,_/⁽9K, 22K, 44K N^/

* Fatigue rated is LCF456.

LCF455


		•-0A-.
	1 B 1	1 L
	1 B 1

* Amplified version available


i_		A = 6.00 In. (152.4 mm) B = 1.75 In. (44.5 mm) C = 1 1/4-12 Metric thread available:
B
		C = M33x2 * Amplified version available
		A = 6.00 In. (152.4 mm) B = 3.50 In. (88.9 mm) C = 1 1/4-12 Metric thread available: ~^C C = M33x2
B J_	1 L
B J_
* Amplified version available
i_	rr	A = 8.00 In. (203.2 mm) B = 2.50 In. (63.5 mm) C = 1 3/4-12
B		A = 8.00 In. (203.2 mm) B = 2.50 In. (63.5 mm) C = 1 3/4-12
		* Amplified version available

20K, 30K, 50K

lbf

( 89K, 134K /

⁽ 222K N ^/

* Fatigue rated is LCF501.

*Higher accuracy available

20K, 30K, 50K

lbf

₍ 89K, 134K,_/222K N

* Fatigue rated is LCF506.

LCF505

*Higher accuracy available

Rated Output (RO)..

Nonlinearity............ ±0.1% ro*

Hysteresis...............±0.2% ro*

Operating Temp...... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 350Q

Deflection............... 0.005" nom.

Wiring Code............cci, WC4

*Higher accuracy available

100K lbf

(445K N)

* Fatigue rated is LCF551.

100K lbf

(445K N)

* Fatigue rated is LCF556.

250K lbf

(1112K N)

Low Profile / Pancake Universal (Tension Base of LCF550)

• In-line loading for compression/tension

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 50 lb (23 Kg)

• See diagram A, C, D for application examples

Low Profile/Pancake Universal

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 70 lb (32 Kg)

• See diagram A, C, D for application examples

Low Profile / Pancake Universal

(Tension Base of LCF650)

• In-line loading for compression/tension

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 135 lb (61.2 Kg)

• See diagram A, C, D for application examples

Low Profile/Pancake Universal

• 17-4 stainless steel

• Bendix^receptacle: PT02A-10-6P

• Mating connector PT06A-10-6S-SR optional (not included)

• Bendix®PC04E-10-6P receptacle option available

• Weight: 95 lb (43 Kg)

• See diagram A, C, D for application examples


	■-0A--	A = 8.00 In. (203.2 mm) B = 5.00 In. (127 mm) c = 1 3/4-12 c
B J_	1 L
B J_	k 1 )r~~~s
* Amplified version available
i_		A = 11.00 In. (279.4 mm) B = 3.50 In. (88.9 mm) c = 2 3/4-8
B
		* Amplified version available
		A = 11.00 In. (279.4 mm) B = 7.00 In. (177.8 mm) c = 2 3/4-8 c
1^ B J_	1 L
1^ B J_
* Amplified version available

LCF555

*Higher accuracy available

LCF650

*Higher accuracy available

250K lbf

LCF655

(1112K N)

*Higher accuracy available

Rated Output (RO)..

Nonlinearity............ ±0.1% ro*

Hysteresis...............±0.2% ro*

Operating Temp....... -60 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 350Q

Deflection................. 0.007" nom.

Wiring Code.............CC1, WC4

*Higher accuracy available

Rated Output (RO)... 2 mV/V nom.

Nonlinearity............ ±0.25% ro

Hysteresis...............±0.25% ro

Operating Temp....... -45 to 200°f

Excitation (max)..... 20 vdc

Bridge Resistance... 350^nom.

Deflection...............0.001"

Wiring Code............WC4

400K lbf

(1779K N)

LCF700


	1	--0A--
	B	1 [

A = 12 In. (305 mm) B = 4.50 In. (114.3 mm) c = 3 1/2-8

* Fatigue rated 200K is LCF701, 400K is LCF705 and 706

* Amplified version available

50K, 100K, 150K ^In-Line ^Canister

LCF800

w/ Female Thread Tension/Compression

• 17-4 stainless steel

• Female threads on both ends

• 28 AWG, 6 conductor shielded PU cable, 10 ft

• Weight: 10 lb (4.5 Kg)

• See diagram A, C, D for application examples

lbf

— 0A-H

A = 3.25 in. (82.6 mm) B = 7.50 in. (191 mm)

c = 3.0 In. (76.2 mm)

D = 1 1/2-12

₍222K, 445K _/

⁽ 667K N /

TS-

^1 '

LCF=Cylindrical Female/Female LCM=Cylindrical Male/Male

Extraneous Load Factors Available (Please visitwww.futek.com orcontactfactoryfordetails)

TEDS Option available on all models shown above.
