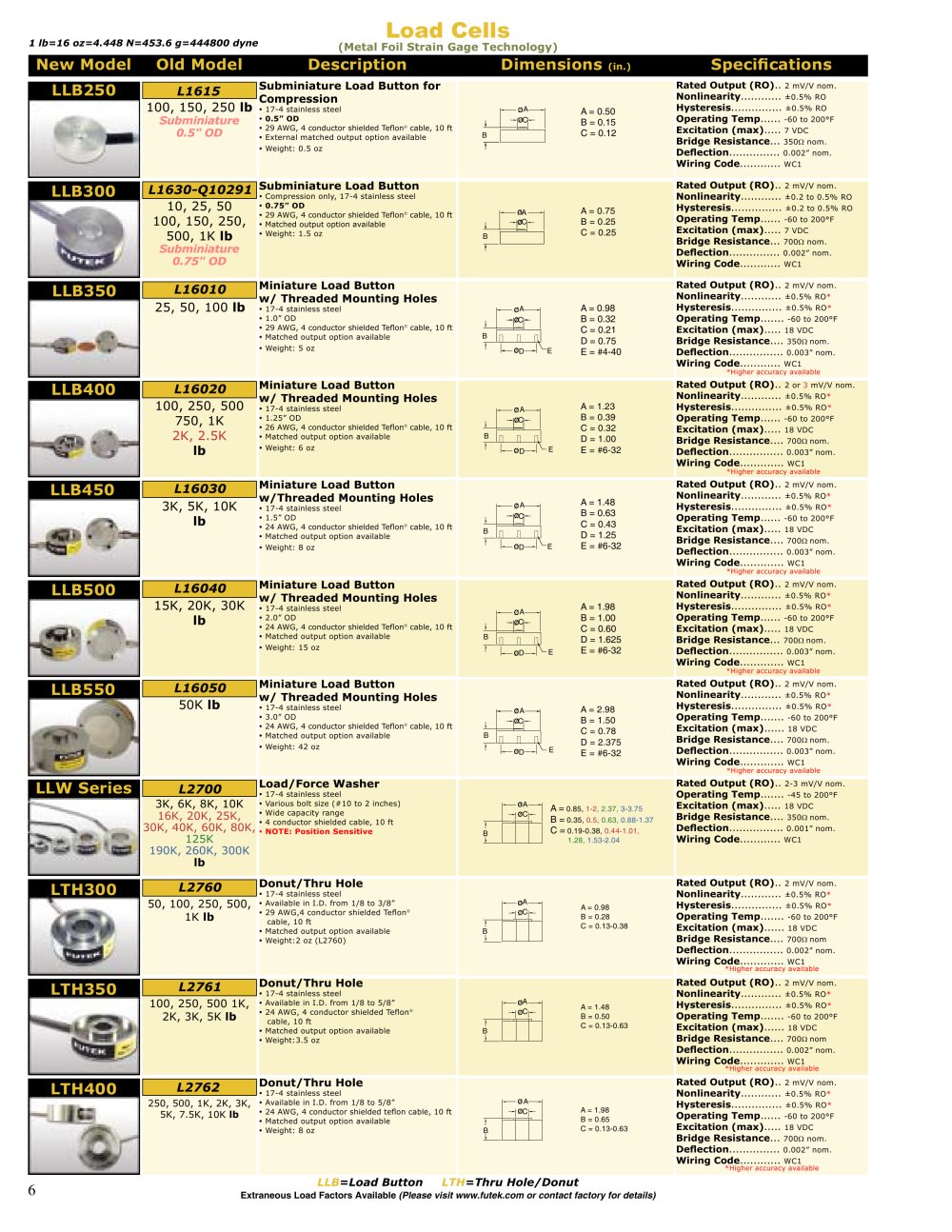

1 lb=16 oz=4.448 N=453.6 g=444800 dyne

(Metal Foil Strain gage Technology)

Load cells New ModelOld ModelDescriptionDimensions

(in.)

Specifications LLB250

L1615 Subminiature Load Button for Compression

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.5% RO

100, 150, 250 lb

17-4 stainless steel

ABC

A = 0.50B = 0.15 C = 0.12

Hysteresis ...............

±0.5% RO

Subminiature 0.5" OD

0.5” OD

Operating Temp ......

-60 to 200°F 29 AWG, 4 conductor shielded Teflon
 cable, 10 ft 7 VDC External matched output option available

Excitation (max) .....

350 Ω nom. Weight: 0.5 oz

Bridge Resistance ... Deflection ...............

0.002” nom.

Wiring Code ............

WC1

LLB300

L1630-Q10291 Subminiature Load Button

Rated Output (RO) ..

2 mV/V nom. Compression only, 17-4 stainless steel

Nonlinearity ............

±0.2 to 0.5% RO

10, 25, 50100, 150, 250, 500, 1K

0.75” OD ±0.2 to 0.5% RO 29 AWG, 4 conductor shielded Teflon
 cable, 10 ft
ACB

A = 0.75B = 0.25 C = 0.25 Hysteresis ...............

Matched output option available

Operating Temp ......

-60 to 200°F

lb

Weight: 1.5 oz

Excitation (max) .....

7 VDC

Bridge Resistance ...

700 Ω nom.

Subminiature 0.75" OD

Deflection ...............

0.002” nom.

Wiring Code ............

WC1

LLB350

L16010 Miniature Load Button w/ Threaded Mounting Holes

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.5% RO *

25, 50, 100 lb

17-4 stainless steel

ABCDE

A = 0.98B = 0.32C = 0.21D = 0.75E = #4-40

Hysteresis ...............

±0.5% RO * 1.0” OD

Operating Temp .......

-60 to 200°F 29 AWG, 4 conductor shielded Teflon
 cable, 10 ft 18 VDC Matched output option available

Excitation (max) .....

350 Ω nom. Weight: 5 oz

Bridge Resistance .... Deflection ................

0.003” nom.

Wiring Code ............

WC1
*Higher accuracy available

LLB400

L16020 Miniature Load Button w/ Threaded Mounting Holes

Rated Output (RO) ..

2 or 3 mV/V nom.

Nonlinearity ............

±0.5% RO *

100, 250, 500750, 1K

17-4 stainless steel
ACBDE

A = 1.23B = 0.39 C = 0.32D = 1.00E = #6-32 Hysteresis ...............

±0.5% RO * 1.25” OD

Operating Temp ......

-60 to 200°F 26 AWG, 4 conductor shielded Teflon
 cable, 10 ft

2K, 2.5K

18 VDC Matched output option available

Excitation (max) ..... Bridge Resistance ....

700 Ω nom.

lb

Weight: 6 oz

Deflection ................

0.003” nom.

Wiring Code .............

WC1
*Higher accuracy available

LLB450

L16030 Miniature Load Button w/Threaded Mounting Holes

Rated Output (RO) ..

2 mV/V nom.

3K, 5K, 10K

ABDEC

A = 1.48B = 0.63C = 0.43D = 1.25E = #6-32

Nonlinearity ............

±0.5% RO * 17-4 stainless steel

Hysteresis ...............

±0.5% RO *

lb

1.5” OD

Operating Temp ......

-60 to 200°F 24 AWG, 4 conductor shielded Teflon
 cable, 10 ft 18 VDC Matched output option available

Excitation (max) .....

700 Ω nom. Weight: 8 oz

Bridge Resistance .... Deflection ................

0.003” nom.

Wiring Code .............

WC1
*Higher accuracy available

LLB500

L16040 Miniature Load Button w/ Threaded Mounting Holes

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.5% RO *

15K, 20K, 30K

17-4 stainless steel

ABCDE

A = 1.98B = 1.00C = 0.60D = 1.625E = #6-32

Hysteresis ...............

±0.5% RO *

lb

2.0” OD

Operating Temp ......

-60 to 200°F 24 AWG, 4 conductor shielded Teflon
 cable, 10 ft

Excitation (max) .....

18 VDC Matched output option available

Bridge Resistance ...

700 Ω nom. Weight: 15 oz

Deflection ................

0.003” nom.

Wiring Code .............

WC1
*Higher accuracy available

LLB550

L16050 Miniature Load Button w/ Threaded Mounting Holes

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.5% RO *

50K lb

17-4 stainless steel
ABDCE

A = 2.98B = 1.50 C = 0.78D = 2.375E = #6-32 Hysteresis ...............

±0.5% RO * 3.0” OD

Operating Temp .......

-60 to 200°F 24 AWG, 4 conductor shielded Teflon
 cable, 10 ft 18 VDC Matched output option available

Excitation (max) ......

700 Ω nom. Weight: 42 oz

Bridge Resistance .... Deflection ................

0.003” nom.

Wiring Code .............

WC1
*Higher accuracy available

LLW Series

L2700

Rated Output (RO) ..

2-3 mV/V nom. 17-4 stainless steel

Operating Temp .......

-45 to 200°F

3K, 6K, 8K, 10K

Various bolt size (#10 to 2 inches)

Excitation (max) .....

18 VDC

16K, 20K, 25K, 30K, 40K, 60K, 80K, 125K190K, 260K, 300K

Wide capacity range

A =

0.85, 1-2, 2.37, 3-3.75

4 conductor shielded cable, 10 ft

B =

0.35, 0.5, 0.63, 0.88-1.37

Bridge Resistance ....

350 Ω nom. NOTE: Position Sensitive

C =

0.19-0.38, 0.44-1.01, 1.28, 1.53-2.04ACB

Deflection ................

0.001” nom.

Wiring Code ............

WC1

lbLoad/Force Washer

LTH300

L2760

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.5% RO *

50, 100, 250, 500, 1K

Available in I.D. from 1/8 to 3/8” A = 0.98B = 0.28 C = 0.13-0.38ABC

Hysteresis ...............

±0.5% RO *

lbDonut/Thru Hole

29 AWG,4 conductor shielded Teflon
 cable, 10 ft

Operating Temp .......

-60 to 200°F Matched output option available

Excitation (max) ......

18 VDC Weight:2 oz (L2760)

Bridge Resistance ....

700 Ω nom

Deflection ................

0.002” nom.

Wiring Code

*Higher accuracy available

.............

WC1

LTH350

L2761

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.5% RO *

100, 250, 500 1K, 2K, 3K, 5K

Available in I.D. from 1/8 to 5/8” A = 1.48B = 0.50 C = 0.13-0.63ABC

Hysteresis ...............

±0.5% RO *

lbDonut/Thru Hole

24 AWG, 4 conductor shielded Teflon
 cable, 10 ft

Operating Temp .......

-60 to 200°F Matched output option available

Excitation (max) ......

18 VDC Weight:3.5 oz

Bridge Resistance ....

700 Ω nom

Deflection ................

0.002” nom.

Wiring Code

*Higher accuracy available

.............

WC1

LTH400

L2762 Donut/Thru Hole

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.5% RO *

250, 500, 1K, 2K, 3K, 5K, 7.5K, 10K

Available in I.D. from 1/8 to 5/8”

Hysteresis ...............

±0.5% RO *

lb

24 AWG, 4 conductor shielded teflon cable, 10 ft

A = 1.98B = 0.65C = 0.13-0.63BAC

Matched output option available

Operating Temp ......

-60 to 200°F Weight: 8 oz

Excitation (max) .....

18 VDC

Bridge Resistance ...

700 Ω nom.

Deflection ...............

0.002” nom.

Wiring Code

*Higher accuracy available

............

WC1

6

LLB =Load Button LTH =Thru Hole/Donut

Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
