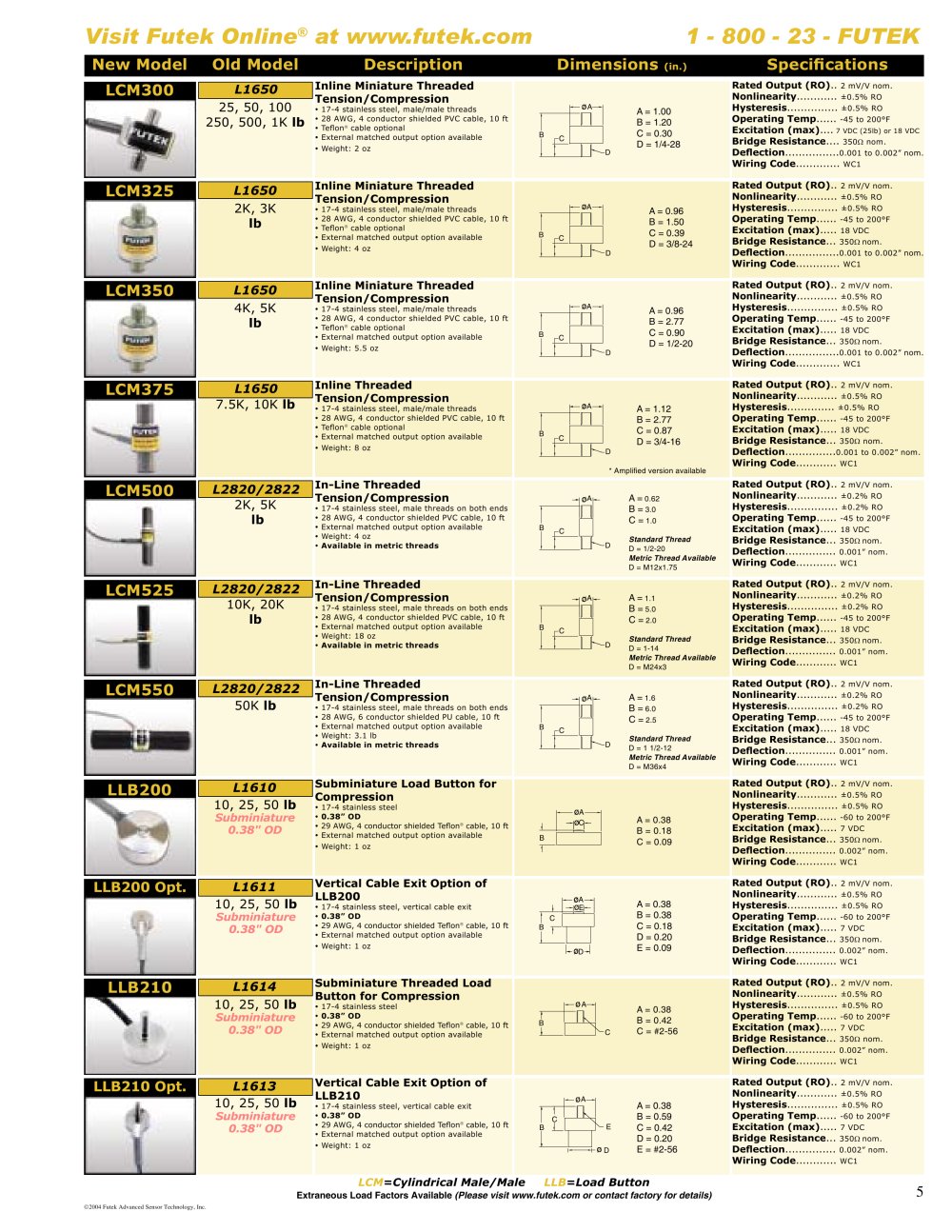

(in.)

Specifications LCM300

L1650

Inline Miniature Threaded Tension/Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

25, 50, 100250, 500, 1K

17-4 stainless steel, male/male threads ABCD

A = 1.00B = 1.20 C = 0.30 D = 1/4-28

Hysteresis ...............
±0.5% RO

lb

28 AWG, 4 conductor shielded PVC cable, 10 ft Operating Temp ......
-45 to 200°F Teflon  cable optional 7 VDC (25lb) or 18 VDC External matched output option available Excitation (max) ....
350 Ω nom. Weight: 2 oz Bridge Resistance .... Deflection ................
0.001 to 0.002” nom. Wiring Code .............
WC1

LCM325

L1650

Inline Miniature Threaded Tension/Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

2K, 3K

17-4 stainless steel, male/male threads ABCD

A = 0.96B = 1.50C = 0.39D = 3/8-24

Hysteresis ...............
±0.5% RO

lb

28 AWG, 4 conductor shielded PVC cable, 10 ft Operating Temp ......
-45 to 200°F Teflon  cable optional 18 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 4 oz Bridge Resistance ... Deflection ................
0.001 to 0.002” nom. Wiring Code .............
WC1

LCM350

L1650

Inline Miniature Threaded Tension/Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

4K, 5K

17-4 stainless steel, male/male threads ABCD

A = 0.96B = 2.77C = 0.90D = 1/2-20

Hysteresis ...............
±0.5% RO

lb

28 AWG, 4 conductor shielded PVC cable, 10 ft Operating Temp ......
-45 to 200°F Teflon  cable optional 18 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 5.5 oz Bridge Resistance ... Deflection ................
0.001 to 0.002” nom. Wiring Code .............
WC1

LCM375

L1650

Inline ThreadedTension/Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

7.5K, 10K lb

17-4 stainless steel, male/male threads ABCD

A = 1.12B = 2.77C = 0.87D = 3/4-16

Hysteresis ..............
±0.5% RO 28 AWG, 4 conductor shielded PVC cable, 10 ft Operating Temp ......
-45 to 200°F Teflon  cable optional 18 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 8 oz Bridge Resistance ... Deflection ...............
0.001 to 0.002” nom. Wiring Code ............
WC1 * Amplied version available

LCM500

L2820/2822

In-Line ThreadedTension/Compression

Rated Output (RO) ..
2 mV/V nom.

A =

0.62 Nonlinearity ............
±0.2% RO

2K, 5K

17-4 stainless steel, male threads on both ends

B =

3.0 Hysteresis ...............
±0.2% RO

lb

28 AWG, 4 conductor shielded PVC cable, 10 ft

C =

1.0 Operating Temp ......
-45 to 200°F External matched output option available 18 VDC Weight: 4 oz Excitation (max) .....
Standard Thread Available in metric threads Bridge Resistance ...
350 Ω nom. D = 1/2-20 Metric Thread Available Deflection ...............
0.001” nom. D = M12x1.75ACBD Wiring Code ............
WC1

LCM525

L2820/2822

In-Line Threaded Tension/Compression

Rated Output (RO) ..
2 mV/V nom.

A =

1.1 Nonlinearity ............
±0.2% RO

10K, 20K

17-4 stainless steel, male threads on both ends

B =

5.0 Hysteresis ...............
±0.2% RO

lb

28 AWG, 4 conductor shielded PVC cable, 10 ft

C =

2.0 Operating Temp ......
-45 to 200°F External matched output option available 18 VDC Weight: 18 oz Excitation (max) .....
Standard Thread Available in metric threads Bridge Resistance ...
350 Ω nom. D = 1-14 Metric Thread Available Deflection ...............
0.001” nom. D = M24x3ACBD Wiring Code ............
WC1

LCM550

L2820/2822

In-Line ThreadedTension/Compression

Rated Output (RO) ..
2 mV/V nom.

A =

1.6 Nonlinearity ............
±0.2% RO

50K lb

17-4 stainless steel, male threads on both ends

B =

6.0 Hysteresis ...............
±0.2% RO 28 AWG, 6 conductor shielded PU cable, 10 ft

C =

2.5 Operating Temp ......
-45 to 200°F External matched output option available 18 VDC Weight: 3.1 lb Excitation (max) .....
Standard Thread Available in metric threads Bridge Resistance ...
350 Ω nom. D = 1 1/2-12 Metric Thread Available Deflection ...............
0.001” nom. D = M36x4ACBD Wiring Code ............
WC1

LLB200

L1610

Subminiature Load Button for Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

10, 25, 50 lb

17-4 stainless steel ABC Hysteresis ...............
±0.5% RO

Subminiature 0.38" OD

0.38” OD A = 0.38B = 0.18C = 0.09 Operating Temp ......
-60 to 200°F 29 AWG, 4 conductor shielded Teflon  cable, 10 ft 7 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 1 oz Bridge Resistance ... Deflection ...............
0.002” nom. Wiring Code ............
WC1

LLB200 Opt.

L1611

Vertical Cable Exit Option of LLB200

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

10, 25, 50 lb

AEBCD 17-4 stainless steel, vertical cable exit

A = 0.38B = 0.38C = 0.18D = 0.20E = 0.09

Hysteresis ...............
±0.5% RO

Subminiature 0.38" OD

0.38” OD Operating Temp ......
-60 to 200°F 29 AWG, 4 conductor shielded Teflon  cable, 10 ft 7 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 1 oz Bridge Resistance ... Deflection ...............
0.002” nom. Wiring Code ............
WC1

LLB210

L1614

Subminiature Threaded Load Button for Compression

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

10, 25, 50 lb

17-4 stainless steel ABC A = 0.38B = 0.42C = #2-56 Hysteresis ...............
±0.5% RO

Subminiature 0.38" OD

0.38” OD Operating Temp ......
-60 to 200°F 29 AWG, 4 conductor shielded Teflon  cable, 10 ft 7 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 1 oz Bridge Resistance ... Deflection ...............
0.002” nom. Wiring Code ............
WC1

LLB210 Opt.

L1613

Vertical Cable Exit Option of LLB210

Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

10, 25, 50 lb

ACBDE 17-4 stainless steel, vertical cable exit

A = 0.38B = 0.59C = 0.42D = 0.20E = #2-56

Hysteresis ...............
±0.5% RO

Subminiature 0.38" OD

0.38” OD Operating Temp ......
-60 to 200°F 29 AWG, 4 conductor shielded Teflon  cable, 10 ft 7 VDC External matched output option available Excitation (max) .....
350 Ω nom. Weight: 1 oz Bridge Resistance ... Deflection ...............
0.002” nom. Wiring Code ............
WC1

LCM =Cylindrical Male/Male LLB =Load Button

Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
