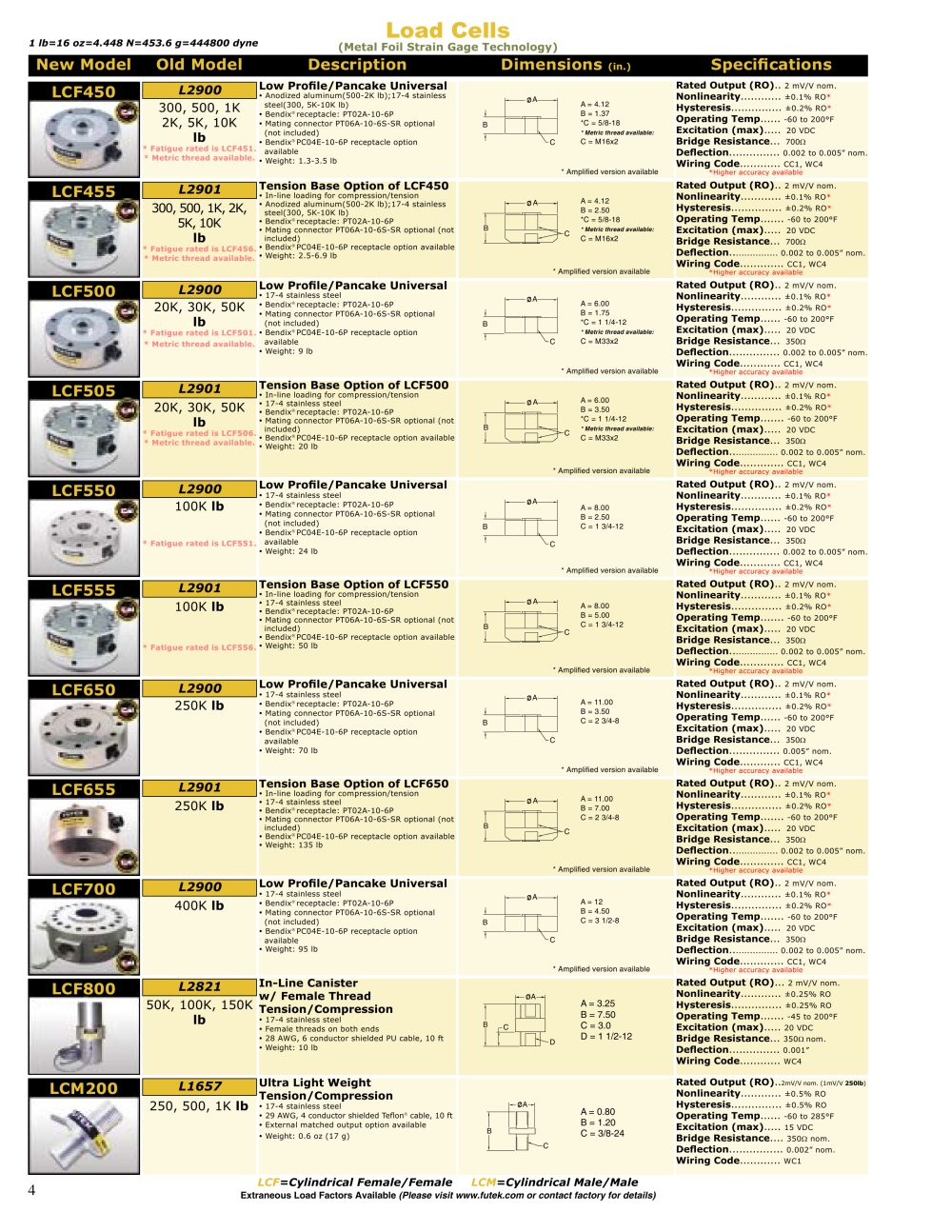

1 lb=16 oz=4.448 N=453.6 g=444800 dyne

(Metal Foil Strain gage Technology)

Load cells New ModelOld ModelDescriptionDimensions

(in.)

Specifications LCF450

L2900

Low Profile/Pancake Universal

Rated Output (RO) ..

2 mV/V nom. Anodized aluminum(500-2K lb);17-4 stainless steel(300, 5K-10K lb) Bendix

Nonlinearity ............

±0.1% RO *

300, 500, 1K2K, 5K, 10K

A = 4.12B = 1.37 *C = 5/8-18

 ±0.2% RO * receptacle: PT02A-10-6P

Hysteresis ...............

Mating connector PT06A-10-6S-SR optional (not included) Bendix

Operating Temp ......

-60 to 200°F
* Metric thread available:

Excitation (max) .....

20 VDC Weight: 1.3-3.5 lb
 PC04E-10-6P receptacle option available

C = M16x2ABC

700 Ω * Fatigue rated is LCF451.* Metric thread available.

lb

Bridge Resistance ... Deflection ...............

0.002 to 0.005” nom.

Wiring Code ............

CC1, WC4 * Amplied version available
*Higher accuracy available

LCF455

L2901

Tension Base Option of LCF450

Rated Output (RO) ..

2 mV/V nom. In-line loading for compression/tension

Nonlinearity ............

±0.1% RO *

300, 500, 1K, 2K, 5K, 10K

Anodized aluminum(500-2K lb);17-4 stainless steel(300, 5K-10K lb) Bendix

A = 4.12B = 2.50 *C = 5/8-18

Hysteresis ...............

±0.2% RO *
 receptacle: PT02A-10-6P

Operating Temp .......

-60 to 200°F Mating connector PT06A-10-6S-SR optional (not included) Bendix
* Metric thread available:

Excitation (max) .....

20 VDC

C = M16x2CAB

700 Ω * Fatigue rated is LCF456.* Metric thread available.

lb

 PC04E-10-6P receptacle option available

Bridge Resistance ...

Weight: 2.5-6.9 lb

Deflection ..

............... 0.002 to 0.005” nom. * Amplied version available

Wiring Code .............

CC1, WC4
*Higher accuracy available

LCF500

L2900

Low Profile/Pancake Universal

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.1% RO *

20K, 30K, 50K

Bendix
 receptacle: PT02A-10-6P

A = 6.00B = 1.75 *C = 1 1/4-12

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Hysteresis ............... Operating Temp ......

-60 to 200°F * Fatigue rated is LCF501.* Metric thread available.

lb

Weight: 9 lb
 PC04E-10-6P receptacle option available
* Metric thread available:

Excitation (max) .....

20 VDC

C = M33x2ABC

Bridge Resistance ...

350 Ω

Deflection ...............

0.002 to 0.005” nom.

Wiring Code ............

CC1, WC4 * Amplied version available
*Higher accuracy available

LCF505

L2901

Tension Base Option of LCF500

Rated Output (RO) ..

2 mV/V nom. In-line loading for compression/tension

Nonlinearity ............

±0.1% RO *

20K, 30K, 50K

17-4 stainless steel

A = 6.00B = 3.50*C = 1 1/4-12

Bendix
 receptacle: PT02A-10-6P

Hysteresis ...............

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Operating Temp .......

-60 to 200°F * Fatigue rated is LCF506.* Metric thread available.

lb

* Metric thread available: 

Excitation (max) .....

20 VDC PC04E-10-6P receptacle option available

C = M33x2CAB

Weight: 20 lb

Bridge Resistance ...

350 Ω

Deflection ..

............... 0.002 to 0.005” nom. * Amplied version available

Wiring Code .............

CC1, WC4
*Higher accuracy available

LCF550

L2900

Low Profile/Pancake Universal

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.1% RO *

100K lb

Bendix
 receptacle: PT02A-10-6P

A = 8.00B = 2.50 C = 1 3/4-12ABC

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Hysteresis ............... Operating Temp ......

-60 to 200°F Weight: 24 lb
 PC04E-10-6P receptacle option available

Excitation (max) .....

20 VDC * Fatigue rated is LCF551.

Bridge Resistance ...

350 Ω

Deflection ...............

0.002 to 0.005” nom.

Wiring Code ............

CC1, WC4 * Amplied version available
*Higher accuracy available

LCF555

L2901

Tension Base Option of LCF550

Rated Output (RO) ..

2 mV/V nom. In-line loading for compression/tension

Nonlinearity ............

±0.1% RO *

100K lb

17-4 stainless steel Bendix
 receptacle: PT02A-10-6P

A = 8.00B = 5.00 C = 1 3/4-12CAB

Hysteresis ...............

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Operating Temp .......

-60 to 200°F


Excitation (max) .....

20 VDC PC04E-10-6P receptacle option available 350 Ω * Fatigue rated is LCF556. Weight: 50 lb

Bridge Resistance ... Deflection ..

............... 0.002 to 0.005” nom. * Amplied version available

Wiring Code .............

CC1, WC4
*Higher accuracy available

LCF650

L2900

Low Profile/Pancake Universal

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.1% RO *

250K lb

Bendix
 receptacle: PT02A-10-6P

A = 11.00B = 3.50 C = 2 3/4-8ABC

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Hysteresis ............... Operating Temp ......

-60 to 200°F Weight: 70 lb
 PC04E-10-6P receptacle option available

Excitation (max) .....

20 VDC

Bridge Resistance ...

350 Ω

Deflection ...............

0.005” nom.

Wiring Code ............

CC1, WC4 * Amplied version available
*Higher accuracy available

LCF655

L2901

Tension Base Option of LCF650

Rated Output (RO) ..

2 mV/V nom. In-line loading for compression/tension

Nonlinearity ............

±0.1% RO *

250K lb

17-4 stainless steel

A = 11.00B = 7.00C = 2 3/4-8CAB

Bendix
 receptacle: PT02A-10-6P

Hysteresis ...............

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Operating Temp .......

-60 to 200°F


Excitation (max) .....

20 VDC PC04E-10-6P receptacle option available Weight: 135 lb

Bridge Resistance ...

350 Ω

Deflection ..

............... 0.002 to 0.005” nom. * Amplied version available

Wiring Code .............

CC1, WC4
*Higher accuracy available

LCF700

L2900

Low Profile/Pancake Universal

Rated Output (RO) ..

2 mV/V nom. 17-4 stainless steel

Nonlinearity ............

±0.1% RO *

400K lb

Bendix
 receptacle: PT02A-10-6P

A = 12B = 4.50 C = 3 1/2-8ABC

±0.2% RO * Mating connector PT06A-10-6S-SR optional (not included) Bendix

Hysteresis ............... Operating Temp .......

-60 to 200°F
 PC04E-10-6P receptacle option available

Excitation (max) .....

20 VDC

Bridge Resistance ...

350 Ω Weight: 95 lb

Deflection ..

............... 0.002 to 0.005” nom. * Amplied version available

Wiring Code .............

CC1, WC4
*Higher accuracy available

LCF800

L2821

In-Line Canister w/ Female Thread Tension/Compression

Rated Output (RO) ...

2 mV/V nom.

A

Nonlinearity ............

±0.25% RO

50K, 100K, 150K

A = 3.25B = 7.50C = 3.0D = 1 1/2-12

Hysteresis ...............

±0.25% RO

lb

17-4 stainless steel

Operating Temp .......

-45 to 200°F Female threads on both ends

B CD

Excitation (max) .....

20 VDC 28 AWG, 6 conductor shielded PU cable, 10 ft

Bridge Resistance ...

350 Ω nom. Weight: 10 lb

Deflection ...............

0.001”

Wiring Code ............

WC4

LCM200

L1657

Ultra Light Weight Tension/Compression

Rated Output (RO) ..

2mV/V nom. (1mV/V 250lb )

Nonlinearity ............

±0.5% RO

250, 500, 1K lb

17-4 stainless steel

ABC

Hysteresis ...............

±0.5% RO 29 AWG, 4 conductor shielded Teflon
 cable, 10 ft

A = 0.80B = 1.20C = 3/8-24

Operating Temp ......

-60 to 285°F External matched output option available

Excitation (max) .....

15 VDC Weight: 0.6 oz (17 g)

Bridge Resistance ....

350 Ω nom.

Deflection ................

0.002” nom.

Wiring Code ............

WC1

4

LCF =Cylindrical Female/Female LCM =Cylindrical Male/Male

Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
