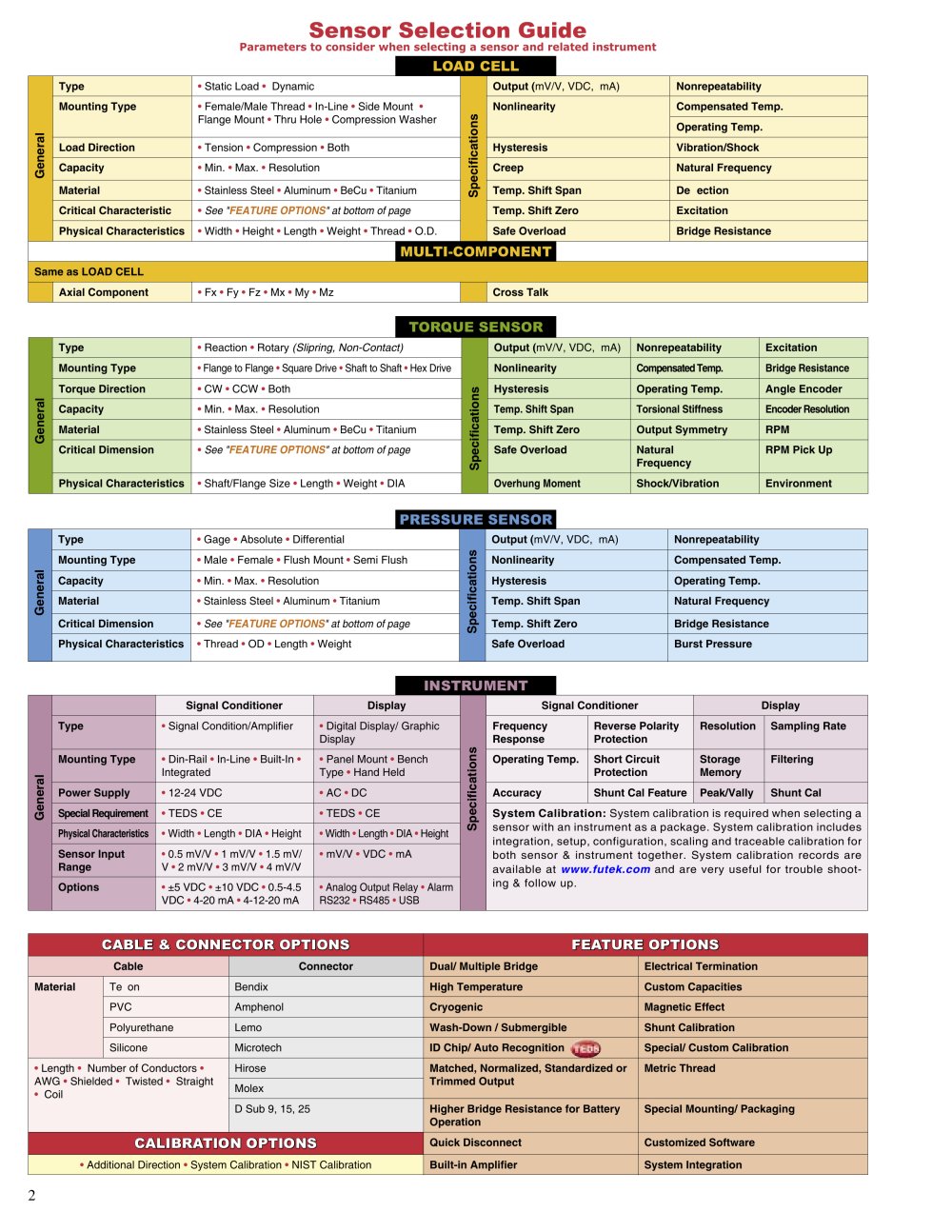

| | | Sensor Selection Guide Parameters to consider when selecting a sensor and related instrument | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | Type | • Static Load • Dynamic | | Output (mV/V, VDC, mA) | Nonrepeatability | | | | | Mounting Type | • Female/Male Thread • In-Line • Side Mount • | Specifications | Nonlinearity | Compensated Temp. | | | | General | | | | | Operating Temp. | | | | Load Direction | • Tension • Compression • Both | Hysteresis | Vibration/Shock | | | | Capacity | • Min. • Max. • Resolution | Creep | Natural Frequency | | | | | Material | • Stainless Steel • Aluminum • BeCu • Titanium | Temp. Shift Span | De ection | | | | | Critical Characteristic | • See "FEATURE OPTIONS" at bottom of page | | Temp. Shift Zero | Excitation | | | | | Physical Characteristics | • Width • Height • Length • Weight • Thread • O.D. | | | | | | | MULTI-COMPONENT | | | | | Same as LOAD CELL | | | | | Axial Component | • Fx • Fy • Fz • Mx • My • Mz | | Cross Talk | | | | | | | | | | | | | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | Type | • Reaction • Rotary (Slipring, Non-Contact) | | Output (mV/V, VDC, mA) | Nonrepeatability | Excitation | | | | | Mounting Type | • Flange to Flange • Square Drive • Shaft to Shaft • Hex Drive | | Nonlinearity | Compensated Temp. | Bridge Resistance | | | | General | Torque Direction | • CW • CCW • Both | Specifications | Hysteresis | Operating Temp. | | | | | Capacity | • Min. • Max. • Resolution | Temp. Shift Span | Torsional Stiffness | Encoder Resolution | | | | Material | • Stainless Steel • Aluminum • BeCu • Titanium | Temp. Shift Zero | Output Symmetry | RPM | | | | Critical Dimension | • See "FEATURE OPTIONS" at bottom of page | Safe Overload | Natural Frequency | RPM Pick Up | | | | | Physical Characteristics | • Shaft/Flange Size • Length • Weight • DIA | _ | Overhung Moment | Shock/Vibration | Environment | | | | | | | | | | | | | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | Type | • Gage • Absolute • Differential | | Output (mV/V, VDC, mA) | Nonrepeatability | | | | | Mounting Type | • Male • Female • Flush Mount • Semi Flush | Specifications | Nonlinearity | Compensated Temp. | | | | General | Capacity | • Min. • Max. • Resolution | Hysteresis | Operating Temp. | | | | Material | • Stainless Steel • Aluminum • Titanium | Temp. Shift Span | Natural Frequency | | | | Critical Dimension | • See "FEATURE OPTIONS" at bottom of page | Temp. Shift Zero | Bridge Resistance | | | | | Physical Characteristics | • Thread • OD • Length • Weight | | Safe Overload | Burst Pressure | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | Display | | Signal Conditioner | Display | | | | | Type | • Signal Condition/Amplifier | | Specifications | Frequency Response | Reverse Polarity Protection | Resolution | | | | | General | Mounting Type | • Din-Rail • In-Line • Built-In • Integrated | • Panel Mount • Bench Type • Hand Held | Operating Temp. | Short Circuit Protection | Storage Memory | Filtering | | | | Power Supply | • 12-24 VDC | • AC•DC | Accuracy | Shunt Cal Feature | Peak/Vally | Shunt Cal | | | | Special Requirement | • TEDS•CE | • TEDS • CE | System Calibration: System calibration is required when selecting a | | | | | Physical Characteristics | • Width • Length • DIA • Height | • Width • Length • DIA • Height | sensor with an instrument as a package. System calibration includes integration, setup, configuration, scaling and traceable calibration for both sensor & instrument together. System calibration records are available at www.futek.com and are very useful for trouble shoot- | | | | | Sensor Input Range | • 0.5 mV/V • 1 mV/V • 1.5 mV/ V • 2 mV/V • 3 mV/V • 4 mV/V | • mV/V • VDC • mA | | | | | | Options | • ±5 VDC • ±10 VDC • 0.5-4.5 VDC • 4-20 mA • 4-12-20 mA | • Analog Output Relay • Alarm RS232 • RS485 • USB | | ing & follow up. | | | | | | | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | CABLE & CONNECTOR OPTIONS | FEATURE OPTIONS | | | | Cable | Connector | Dual/ Multiple Bridge | Electrical Termination | | | | Material | Te on | Bendix | High Temperature | Custom Capacities | | | | PVC | Amphenol | Cryogenic | Magnetic Effect | | | | Polyurethane | Lemo | Wash-Down / Submergible | Shunt Calibration | | | | Silicone | Microtech | ID Chip/ Auto Recognition | Special/ Custom Calibration | | | | • Length • Number of Conductors • AWG • Shielded • Twisted • Straight • Coil | Hirose | Matched, Normalized, Standardized or Trimmed Output | Metric Thread | | | | Molex | | | | D Sub 9, 15, 25 | Higher Bridge Resistance for Battery Operation | Special Mounting/ Packaging | | | | CALIBRATION OPTIONS | Quick Disconnect | Customized Software | | | | • Additional Direction • System Calibration • NIST Calibration | Built-in Amplifier | System Integration | | | | | | | | | | | | |
| | | |
