1 in-lb=16 in-oz=0.0833 ft-lb=0.113 N-m=0.01153 Kg-m

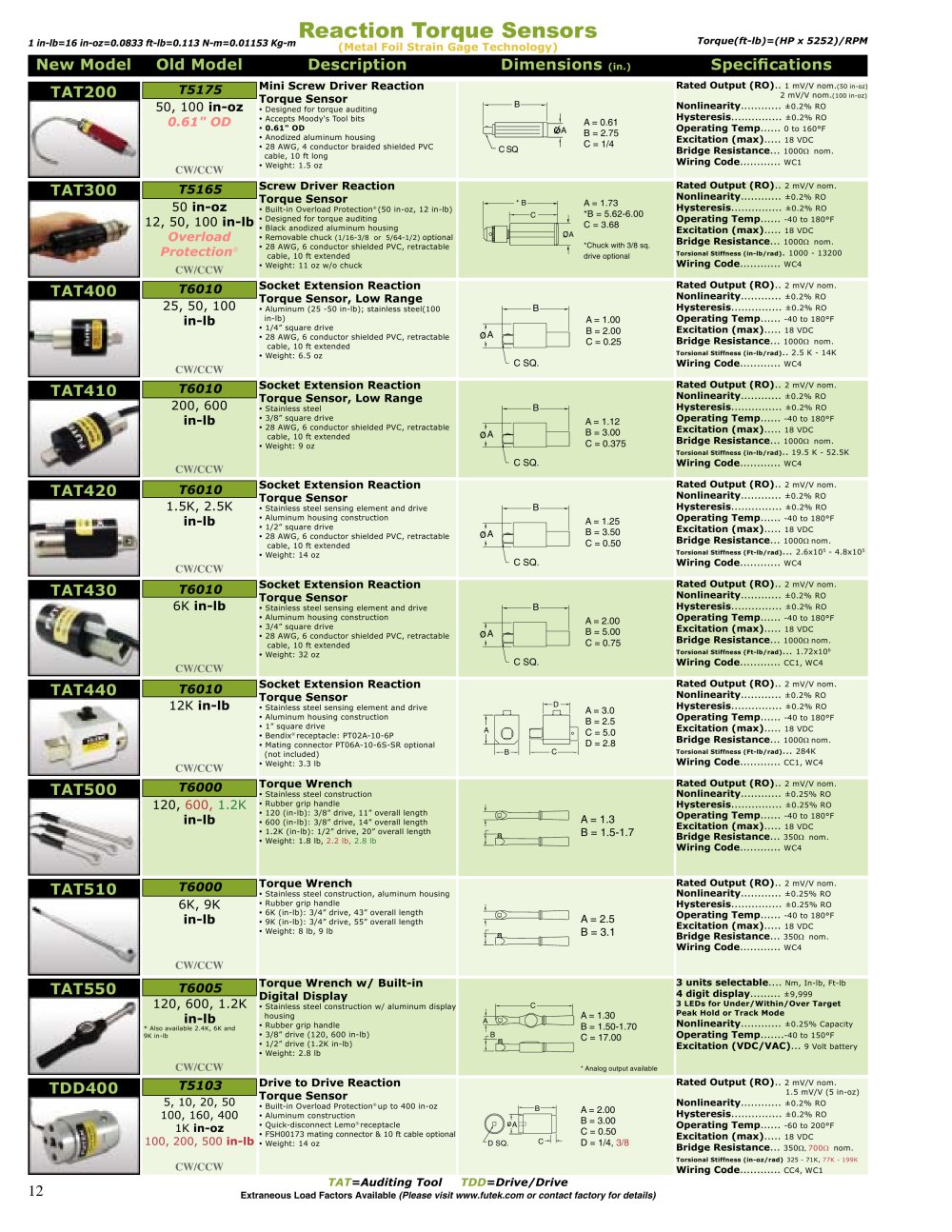

Reaction Torque sensors

(Metal Foil Strain gage Technology)

Torque(ft-lb)=(HP x 5252)/RPM

New ModelOld ModelDescriptionDimensions

(in.)

Specifications TAT200 T5175

Mini Screw Driver Reaction Torque Sensor

Rated Output (RO) ..

1 mV/V nom.
(50 in-oz) 2 mV/V nom.
(100 in-oz)

50, 100 in-oz

Designed for torque auditing

Nonlinearity ............

±0.2% RO

0.61" OD

Accepts Moody's Tool bits

Hysteresis ...............

±0.2% RO 0.61" OD

A = 0.61B = 2.75 C = 1/4

Operating Temp ......

0 to 160°F Anodized aluminum housing 18 VDC 28 AWG, 4 conductor braided shielded PVC cable, 10 ft long Weight: 1.5 oz

Excitation (max) .....

C SQBA

Industrial bridge Resistance ...

1000 Ω nom.

Wiring Code ............

WC1

CW/CCWCW/CCWCW/CCW CW/CCW CW/CCWCW/CCW

TAT300 T5165

Screw Driver Reaction Torque Sensor

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

50 in-oz

Built-in Overload Protection
 (50 in-oz, 12 in-lb)

A = 1.73*B = 5.62-6.00 C = 3.68 Hysteresis ...............

±0.2% RO

12, 50, 100 in-lb

Designed for torque auditing

Operating Temp ......

-40 to 180°F Black anodized aluminum housing

Overload Protection

18 VDC Removable chuck
(1/16-3/8 or 5/64-1/2) optional

Excitation (max) ..... Bridge Resistance ...

1000 Ω nom.
 28 AWG, 6 conductor shielded PVC, retractable cable, 10 ft extended Weight: 11 oz w/o chuck
*Chuck with 3/8 sq.drive optional* BCA Torsional Stiffness (in-lb/rad)

.

1000 - 13200

Wiring Code ............

WC4

TAT400 T6010

Socket Extension Reaction Torque Sensor, Low Range

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

25, 50, 100

Aluminum (25 -50 in-lb); stainless steel(100 in-lb) 1/4”

Hysteresis ...............

±0.2% RO

in-lb

A = 1.00B = 2.00C = 0.25BAC SQ.

Operating Temp ......

-40 to 180°F square drive 18 VDC 28 AWG, 6 conductor shielded PVC, retractable cable, 10 ft extended Weight: 6.5 oz

Excitation (max) ..... Bridge Resistance ...

1000 Ω nom.
Torsional Stiffness (in-lb/rad)

..

2.5 K - 14K

Wiring Code ............

WC4

TAT410 T6010

Socket Extension Reaction Torque Sensor, Low Range

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

200, 600

Stainless steel

Hysteresis ...............

±0.2% RO

in-lb

3/8” square drive

A = 1.12B = 3.00C = 0.375BAC SQ.

Operating Temp ......

-40 to 180°F 28 AWG, 6 conductor shielded PVC, retractable cable, 10 ft extended Weight: 9 oz

Excitation (max) .....

18 VDC

Bridge Resistance ...

1000 Ω nom.
Torsional Stiffness (in-lb/rad)

..

19.5 K - 52.5K

CW/CCW

Wiring Code ............

WC4

TAT420 T6010

Socket Extension Reaction Torque Sensor

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

1.5K, 2.5K

Stainless steel sensing element and drive

Hysteresis ...............

±0.2% RO

in-lb

Aluminum housing construction

A = 1.25B = 3.50C = 0.50BAC SQ.

Operating Temp ......

-40 to 180°F 1/2” square drive 18 VDC 28 AWG, 6 conductor shielded PVC, retractable cable, 10 ft extended Weight: 14 oz

Excitation (max) ..... Bridge Resistance ...

1000 Ω nom.
Torsional Stiffness (Ft-lb/rad)

...

2.6x10
5 - 4.8x10
5

Wiring Code ............

WC4

TAT430 T6010

Socket Extension Reaction Torque Sensor

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

6K in-lb

Stainless steel sensing element and drive

Hysteresis ...............

±0.2% RO Aluminum housing construction

A = 2.00B = 5.00C = 0.75BAC SQ.

Operating Temp ......

-40 to 180°F 3/4” square drive 18 VDC 28 AWG, 6 conductor shielded PVC, retractable cable, 10 ft extended Weight: 32 oz

Excitation (max) ..... Bridge Resistance ...

1000 Ω nom.
Torsional Stiffness (Ft-lb/rad)

...

1.72x10
6

CW/CCW

Wiring Code ............

CC1, WC4

TAT440 T6010

Socket Extension Reaction Torque Sensor

Rated Output (RO) ..

2 mV/V nom.

Nonlinearity ............

±0.2% RO

12K in-lb

Stainless steel sensing element and drive

A = 3.0B = 2.5 C = 5.0D = 2.8

Hysteresis ...............

±0.2% RO Aluminum housing construction

Operating Temp ......

-40 to 180°F 1” square drive

ABCD

18 VDC Bendix
 receptacle: PT02A-10-6P

Excitation (max) .....

Mating connector PT06A-10-6S-SR optional (not included) Weight: 3.3 lb

Bridge Resistance ...

1000 Ω nom.
Torsional Stiffness (Ft-lb/rad)

...

284K

CW/CCW

Wiring Code ............

CC1, WC4

TAT500 T6000

Torque wrench

Rated Output (RO) ..

2 mV/V nom. Stainless steel construction

Nonlinearity ............

±0.25% RO

120, 600, 1.2K

Rubber grip handle

Hysteresis ...............

±0.25% RO

in-lb

120 (in-lb): 3/8” drive, 11” overall length

AB

A = 1.3

-40 to 180°F 600 (in-lb): 3/8” drive, 14” overall length

Operating Temp ......

1.2K (in-lb): 1/2” drive, 20” overall length

B = 1.5-1.7

Excitation (max) .....

18 VDC Weight: 1.8 lb, 2.2 lb, 2.8 lb

Bridge Resistance ...

350 Ω nom.

Wiring Code ............

WC4

TAT510 T6000

Torque Wrench

Rated Output (RO) ..

2 mV/V nom. Stainless steel construction, aluminum housing

Nonlinearity ............

±0.25% RO

6K, 9K

Rubber grip handle

Hysteresis ...............

±0.25% RO

in-lb

6K (in-lb): 3/4” drive, 43” overall length

AB

A = 2.5

-40 to 180°F 9K (in-lb): 3/4” drive, 55” overall length

Operating Temp ......

Weight: 8 lb, 9 lb

B = 3.1

Excitation (max) .....

18 VDC

Bridge Resistance ...

350 Ω nom.

Wiring Code ............

WC4

CW/CCW

TAT550 T6005

Torque Wrench w/ Built-in Digital Display

3 units selectable ....

Nm, In-lb, Ft-lb

4 digit display .........

±9,999

120, 600, 1.2K

Stainless steel construction w/ aluminum display housing Rubber grip handle

CAB

3 LEDs for Under/Within/Over Target Peak Hold or Track Mode 3/8” drive (120, 600 in-lb)
* Also available 2.4K, 6K and 9K in-lb

in-lb

A = 1.30B = 1.50-1.70C = 17.00

1/2” drive (1.2K in-lb)

Nonlinearity ............

±0.25% Capacity Weight: 2.8 lb

Operating Temp .......

-40 to 150°F

Excitation (VDC/VAC) ...

9 Volt battery
* Analog output available

TDD400 T5103

Drive to Drive Reaction Torque Sensor

Rated Output (RO) ..

2 mV/V nom. 1.5 mV/V (5 in-oz)

5, 10, 20, 50100, 160, 4001K

Built-in Overload Protection
 up to 400 in-oz

BACD SQ.

Nonlinearity ............

±0.2% RO Aluminum construction

A = 2.00B = 3.00C = 0.50D = 1/4, 3/8

Hysteresis ...............

±0.2% RO

in-oz

Quick-disconnect Lemo
 receptacle

Operating Temp ......

-60 to 200°F FSH00173 mating connector & 10 ft cable optional

100, 200, 500 in-lb

18 VDC Weight: 14 oz

Excitation (max) ..... Bridge Resistance ...

350 Ω, 700 Ω nom.
Torsional Stiffness (in-oz/rad) 325 - 71K, 77K - 199K

Wiring Code ............

CC4, WC1

12

TAT =Auditing Tool TDD =Drive/Drive

Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
