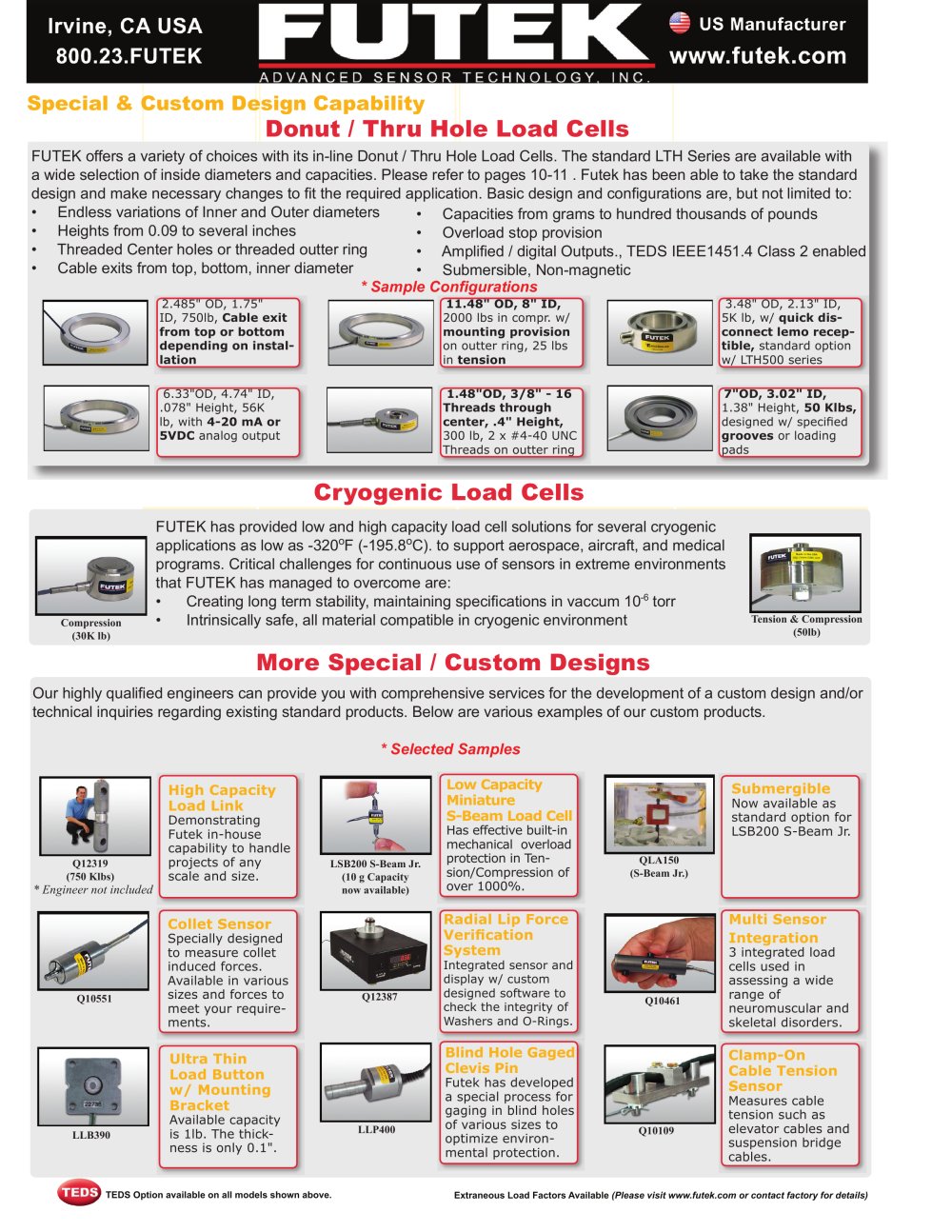

Special & Custom Design Capability

Special and custom - 14287 Donut / Thru Hole Load Cells

• Capacities from grams to hundred thousands of pounds • Overload stop provision • Amplified / digital Outputs., TEDS IEEE1451.4 Class 2 enabled • Submersible, Non-magneticFUTEK offers a variety of choices with its in-line Donut / Thru Hole Load Cells. The standard LTH Series are available with a wide selection of inside diameters and capacities. Please refer to pages 10-11 . Futek has been able to take the standard design and make necessary changes to fit the required application. Basic design and configurations are, but not limited to: • Endless variations of Inner and Outer diameters • Heights from 0.09 to several inches • Threaded Center holes or threaded outter ring • Cable exits from top, bottom, inner diameter

tension

* Sample Configurations

on outter ring, 25 lbs in 2.485" OD, 1.75" ID, 750lb, mounting provision 11.48" OD, 8" ID, 3.48" OD, 2.13" ID, 5K lb, w/ Cable exit from top or bottom depending on instal- lation 2000 lbs in compr. w/ standard option w/ LTH500 series quick dis-connect lemo recep- tible, 300 lb, 2 x #4-40 UNC Threads on outter ring 6.33"OD, 4.74" ID, .078" Height, 56K lb, with 4-20 mA or 5VDC 1.48"OD, 3/8" - 16 Threads through center, .4" Height, 7"OD, 3.02" ID, analog output 1.38" Height, grooves or loading pads 50 Klbs, designed w/ specified

Cryogenic Load Cells

FUTEK has provided low and high capacity load cell solutions for several cryogenic applications as low as -320

o

F (-195.8

o

C). to support aerospace, aircraft, and medical programs. Critical challenges for continuous use of sensors in extreme environments that FUTEK has managed to overcome are: • Creating long term stability, maintaining specifications in vaccum 10

-6

torr • Intrinsically safe, all material compatible in cryogenic environment

Compression (30K lb) Tension & Compression(50lb)

More Special / Custom Designs

Our highly qualified engineers can provide you with comprehensive services for the development of a custom design and/or technical inquiries regarding existing standard products. Below are various examples of our custom products. * Selected Samples

High Capacity Load Link Low Capacity Miniature S-Beam Load Cell Submergible

Now available as standard option for LSB200 S-Beam Jr. Demonstrating Futek in-house capability to handle projects of any scale and size. Has effective built-in mechanical overload protection in Ten- sion/Compression of over 1000%.

Q12319(750 Klbs) LSB200 S-Beam Jr.(10 g Capacity now available) QLA150(S-Beam Jr.)

* Engineer not included

Collet Sensor Radial Lip Force Verification System Multi Sensor Integration

Specially designed to measure collet induced forces. Available in various sizes and forces to meet your require- ments. 3 integrated load cells used in assessing a wide range of neuromuscular and skeletal disorders.

Integrated sensor and display w/ custom designed software to check the integrity of Washers and O-Rings.
Q10551 Q12387 Q10461

Ultra Thin Load Button w/ Mounting Bracket Blind Hole Gaged Clevis Pin Clamp-OnCable Tension Sensor

Futek has developed a special process for gaging in blind holes of various sizes to optimize environ- mental protection. Measures cable tension such as elevator cables and suspension bridge cables. Available capacity is 1lb. The thick- ness is only 0.1".

LLB390 LLP400 Q10109 TEDS Option available on all models shown above. Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
