(Metal Foil Strain Gage Technology)

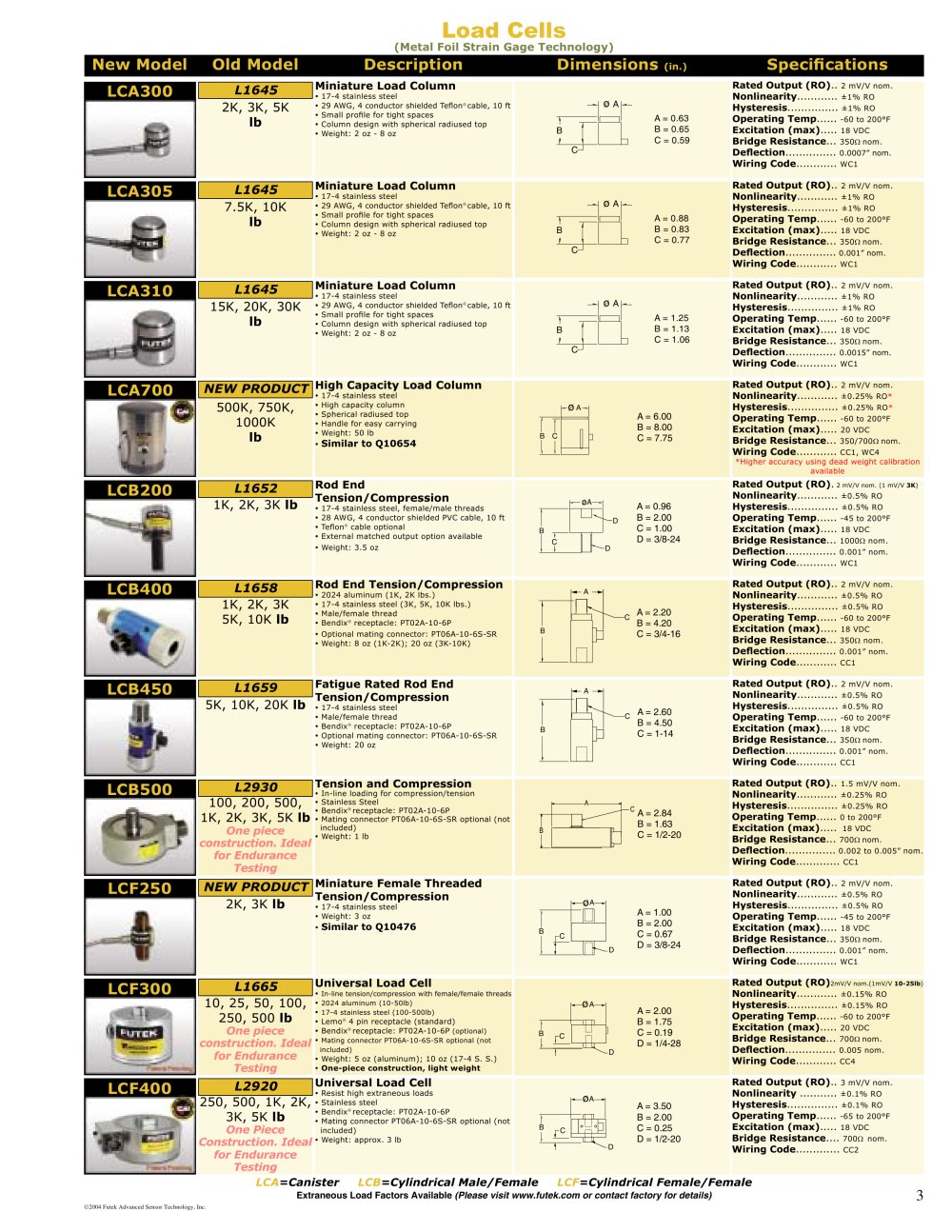

FUTEK 2005 Catalog - 14287 Load Cells

New ModelOld ModelDescriptionDimensions

(in.)

Specifications LCA300

L1645

Miniature Load Column

Rated Output (RO) ..
2 mV/V nom. 17-4 stainless steel Nonlinearity ............
±1% RO

2K, 3K, 5K

29 AWG, 4 conductor shielded Teflon  cable, 10 ft ABC Hysteresis ...............
±1% RO

lb

Small profile for tight spaces Column design with spherical radiused top A = 0.63B = 0.65 C = 0.59 Operating Temp ......
-60 to 200°F Weight: 2 oz - 8 oz Excitation (max) .....
18 VDC Bridge Resistance ...
350 Ω nom. Deflection ...............
0.0007” nom. Wiring Code ............
WC1

LCA305

L1645

Miniature Load Column

Rated Output (RO) ..
2 mV/V nom. 17-4 stainless steel Nonlinearity ............
±1% RO

7.5K, 10K

29 AWG, 4 conductor shielded Teflon  cable, 10 ft ABC Hysteresis ...............
±1% RO

lb

Small profile for tight spaces Column design with spherical radiused top A = 0.88B = 0.83C = 0.77 Operating Temp ......
-60 to 200°F Weight: 2 oz - 8 oz Excitation (max) .....
18 VDC Bridge Resistance ...
350 Ω nom. Deflection ...............
0.001” nom. Wiring Code ............
WC1

LCA310

L1645

Miniature Load Column

Rated Output (RO) ..
2 mV/V nom. 17-4 stainless steel Nonlinearity ............
±1% RO

15K, 20K, 30K

29 AWG, 4 conductor shielded Teflon  cable, 10 ft ABC Hysteresis ...............
±1% RO

lb

Small profile for tight spaces Column design with spherical radiused top A = 1.25B = 1.13C = 1.06 Operating Temp ......
-60 to 200°F Weight: 2 oz - 8 oz Excitation (max) .....
18 VDC Bridge Resistance ...
350 Ω nom. Deflection ...............
0.0015” nom. Wiring Code ............
WC1

FR1075P LCA700

NEW PRODUCT

High Capacity Load Column

Rated Output (RO) ..
2 mV/V nom. 17-4 stainless steel Nonlinearity ............
±0.25% RO *

500K, 750K, 1000K

High capacity column ABC ±0.25% RO * Spherical radiused top Hysteresis ...............
Handle for easy carrying

A = 6.00B = 8.00C = 7.75

Operating Temp ......
-60 to 200°F

lb

Weight: 50 lb Excitation (max) .....
20 VDC Similar to Q10654 Bridge Resistance ...
350/700 Ω nom. Wiring Code ............
CC1, WC4 *Higher accuracy using dead weight calibration available

LCB200

L1652

Rod End Tension/Compression

Rated Output (RO) .
2 mV/V nom. (1 mV/V 3K ) ABCDD Nonlinearity ............
±0.5% RO

1K, 2K, 3K lb

17-4 stainless steel, female/male threads

A = 0.96B = 2.00C = 1.00D = 3/8-24

Hysteresis ...............
±0.5% RO 28 AWG, 4 conductor shielded PVC cable, 10 ft Operating Temp ......
-45 to 200°F Teflon  cable optional 18 VDC External matched output option available Excitation (max) .....
1000 Ω nom. Weight: 3.5 oz Bridge Resistance ... Deflection ...............
0.001” nom. Wiring Code ............
WC1

LCB400

L1658

Rod End Tension/Compression

Rated Output (RO) ..
2 mV/V nom. 2024 aluminum (1K, 2K lbs.) ABC Nonlinearity ............
±0.5% RO

1K, 2K, 3K5K, 10K

17-4 stainless steel (3K, 5K, 10K lbs.) Hysteresis ...............
±0.5% RO

lb

Male/female thread

A = 2.20B = 4.20 C = 3/4-16

Bendix  receptacle: PT02A-10-6P Operating Temp ......
-60 to 200°F Optional mating connector: PT06A-10-6S-SR Excitation (max) .....
18 VDC Weight: 8 oz (1K-2K); 20 oz (3K-10K) Bridge Resistance ...
350 Ω nom. Deflection ...............
0.001” nom. Wiring Code ............
CC1

LCB450

L1659

Fatigue Rated Rod EndTension/Compression

ABC Rated Output (RO) ..
2 mV/V nom. Nonlinearity ............
±0.5% RO

5K, 10K, 20K lb

17-4 stainless steel

A = 2.60B = 4.50C = 1-14

Hysteresis ...............
±0.5% RO Male/female thread Operating Temp ......
-60 to 200°F Bendix  receptacle: PT02A-10-6P 18 VDC Optional mating connector: PT06A-10-6S-SR Excitation (max) .....
Weight: 20 oz Bridge Resistance ...
350 Ω nom. Deflection ...............
0.001” nom. Wiring Code ............
CC1

LCB500

L2930

Tension and Compression

Rated Output (RO) ..
1.5 mV/V nom. In-line loading for compression/tension Nonlinearity ............
±0.25% RO

100, 200, 500, 1K, 2K, 3K, 5K

Stainless Steel  A Bendix receptacle: PT02A-10-6P C Hysteresis ...............
±0.25% RO

lb

Mating connector PT06A-10-6S-SR optional (not included) Weight: 1 lb A = 2.84B = 1.63 C = 1/2-20 Operating Temp ......
0 to 200°F

One piece construction. Ideal for Endurance Testing

B Excitation (max) .....
18 VDC Bridge Resistance ...
700 Ω nom. Deflection ...............
0.002 to 0.005” nom. Wiring Code .............
CC1

FR1075P LCF250

NEW PRODUCT

Miniature Female Threaded Tension/Compression

..
2 mV/V nom. Nonlinearity ............
±0.5% RO

2K, 3K lb

17-4 stainless steel ACB Hysteresis ...............
±0.5% RO Weight: 3 oz

A = 1.00B = 2.00C = 0.67D = 3/8-24

Operating Temp ......
-45 to 200°F Similar to Q10476Rated Output (RO) Excitation (max) .....
18 VDC Bridge Resistance ...
350 Ω nom. D Deflection ...............
0.001” nom. Wiring Code ............
WC1

LCF300

L1665

Universal Load Cell

Rated Output (RO)
2mV/V nom.(1mV/V 10-25lb ) In-line tension/compression with female/female threads Nonlinearity ............
±0.15% RO

10, 25, 50, 100, 250, 500

2024 aluminum (10-50lb) ABCD

A = 2.00B = 1.75 C = 0.19D = 1/4-28

Hysteresis ...............
±0.15% RO

lb

17-4 stainless steel (100-500lb) Lemo  4 pin receptacle (standard) Operating Temp ......
-60 to 200°F

One piece construction. Ideal for Endurance Testing

Bendix  receptacle: PT02A-10-6P (optional) Excitation (max) .....
20 VDC Mating connector PT06A-10-6S-SR optional (not included) Bridge Resistance ...
700 Ω nom. Deflection ...............
0.005 nom. Weight: 5 oz (aluminum); 10 oz (17-4 S. S.) CC4 One-piece construction, light weight Wiring Code ............

LCF400

L2920

Universal Load Cell

Rated Output (RO) ..
3 mV/V nom. Resist high extraneous loads Nonlinearity ...........
±0.1% RO

250, 500, 1K, 2K, 3K, 5K

Stainless steel

A = 3.50B = 2.00 C = 0.25D = 1/2-20

Hysteresis ...............
±0.1% RO

lb

Bendix  receptacle: PT02A-10-6P Mating connector PT06A-10-6S-SR optional (not included) Weight: approx. 3 lb Operating Temp ......
-65 to 200°F

One Piece Construction. Ideal for Endurance Testing

BCAD Excitation (max) .....
18 VDC Bridge Resistance ....
700 Ω nom. Wiring Code .............
CC2

LCA =Canister LCB =Cylindrical Male/Female LCF =Cylindrical Female/Female

Extraneous Load Factors Available (Please visit www.futek.com or contact factory for details)
ï›™ 2004 Futek Advanced Sensor Technology, Inc.

3
