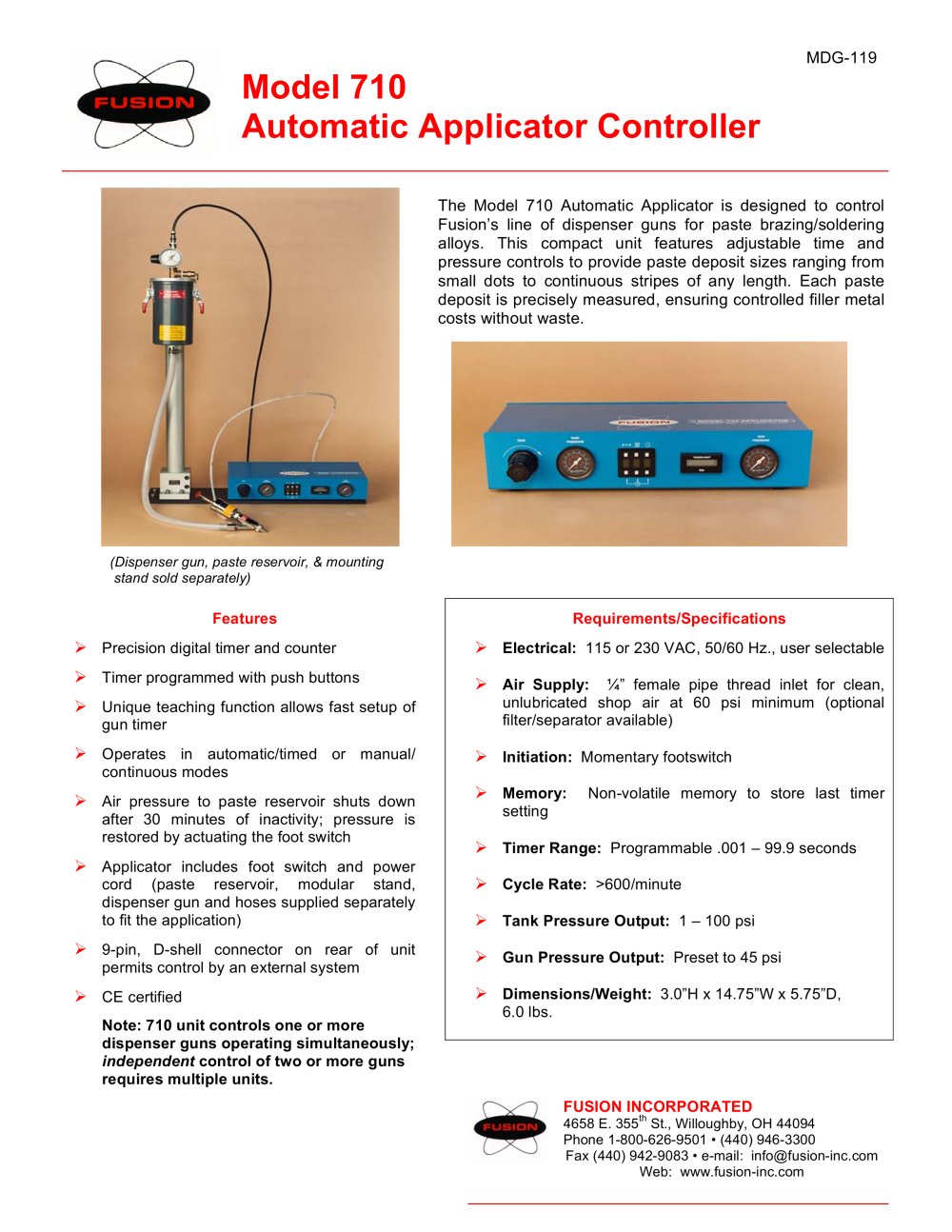

MDG-119

Automatic Applicator Controller - 53329 Model 710Automatic Applicator Controller

The Model 710 Automatic Applicator is designed to control Fusion’s line of dispenser guns for paste brazing/soldering alloys. This compact unit features adjustable time and pressure controls to provide paste deposit sizes ranging from small dots to continuous stripes of any length. Each paste deposit is precisely measured, ensuring controlled filler metal costs without waste.

(Dispenser gun, paste reservoir, & mounting stand sold separately) Features Requirements/Specifications Precision digital timer and counter Electrical: 115 or 230 VAC, 50/60 Hz., user selectable Timer programmed with push buttons Air Supply: ¼” female pipe thread inlet for clean, unlubricated shop air at 60 psi minimum (optional filter/separator available) Unique teaching function allows fast setup of gun timer Operates in automatic/timed or manual/ continuous modes Initiation: Momentary footswitch Air pressure to paste reservoir shuts down after 30 minutes of inactivity; pressure is restored by actuating the foot switch Memory: Non-volatile memory to store last timer setting Timer Range: Programmable .001 – 99.9 seconds Applicator includes foot switch and power cord (paste reservoir, modular stand, dispenser gun and hoses supplied separately to fit the application) Cycle Rate: >600/minute Tank Pressure Output: 1 – 100 psi 9-pin, D-shell connector on rear of unit permits control by an external system Gun Pressure Output: Preset to 45 psi CE certified Dimensions/Weight: 3.0”H x 14.75”W x 5.75”D, 6.0 lbs. Note: 710 unit controls one or more dispenser guns operating simultaneously; independent control of two or more guns requires multiple units. FUSION INCORPORATED
4658 E. 355 th St., Willoughby, OH 44094 Phone 1-800-626-9501• (440) 946-3300 Fax (440) 942-9083 ?e-mail: info@fusion-inc.com Web: www.fusion-inc.com
