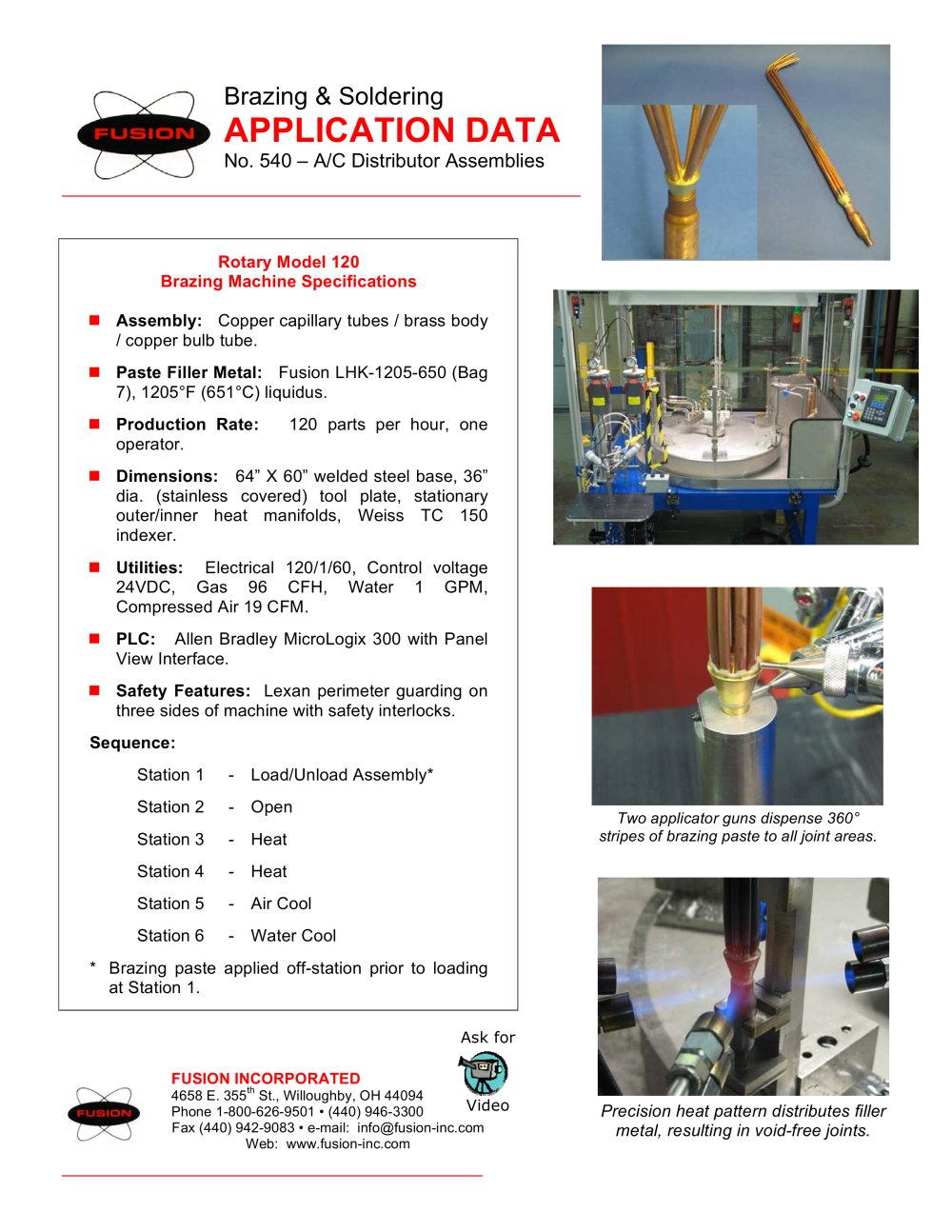

Brazing & Soldering APPLICATION DATA No. 540 – A/C Distributor Assemblies FUSION INCORPORATED 4658 E. 355th St., Willoughby, OH 44094 Phone 1-800-626-9501 • (440) 946-3300 Fax (440) 942-9083 • e-mail: info@fusion-inc.com Web: www.fusion-inc.com Ask for Video Rotary Model 120 Brazing Machine Specifications .. Assembly: Copper capillary tubes / brass body / copper bulb tube. .. Paste Filler Metal: Fusion LHK-1205-650 (Bag 7), 1205°F (651°C) liquidus. .. Production Rate: 120 parts per hour, one operator. .. Dimensions: 64” X 60” welded steel base, 36” dia. (stainless covered) tool plate, stationary outer/inner heat manifolds, Weiss TC 150 indexer. .. Utilities: Electrical 120/1/60, Control voltage 24VDC, Gas 96 CFH, Water 1 GPM, Compressed Air 19 CFM. .. PLC: Allen Bradley MicroLogix 300 with Panel View Interface. .. Safety Features: Lexan perimeter guarding on three sides of machine with safety interlocks. Sequence: Station 1 - Load/Unload Assembly* Station 2 - Open Station 3 - Heat Station 4 - Heat Station 5 - Air Cool Station 6 - Water Cool * Brazing paste applied off-station prior to loading at Station 1. Precision heat pattern distributes filler metal, resulting in void-free joints. Two applicator guns dispense 360° stripes of brazing paste to all joint areas.
