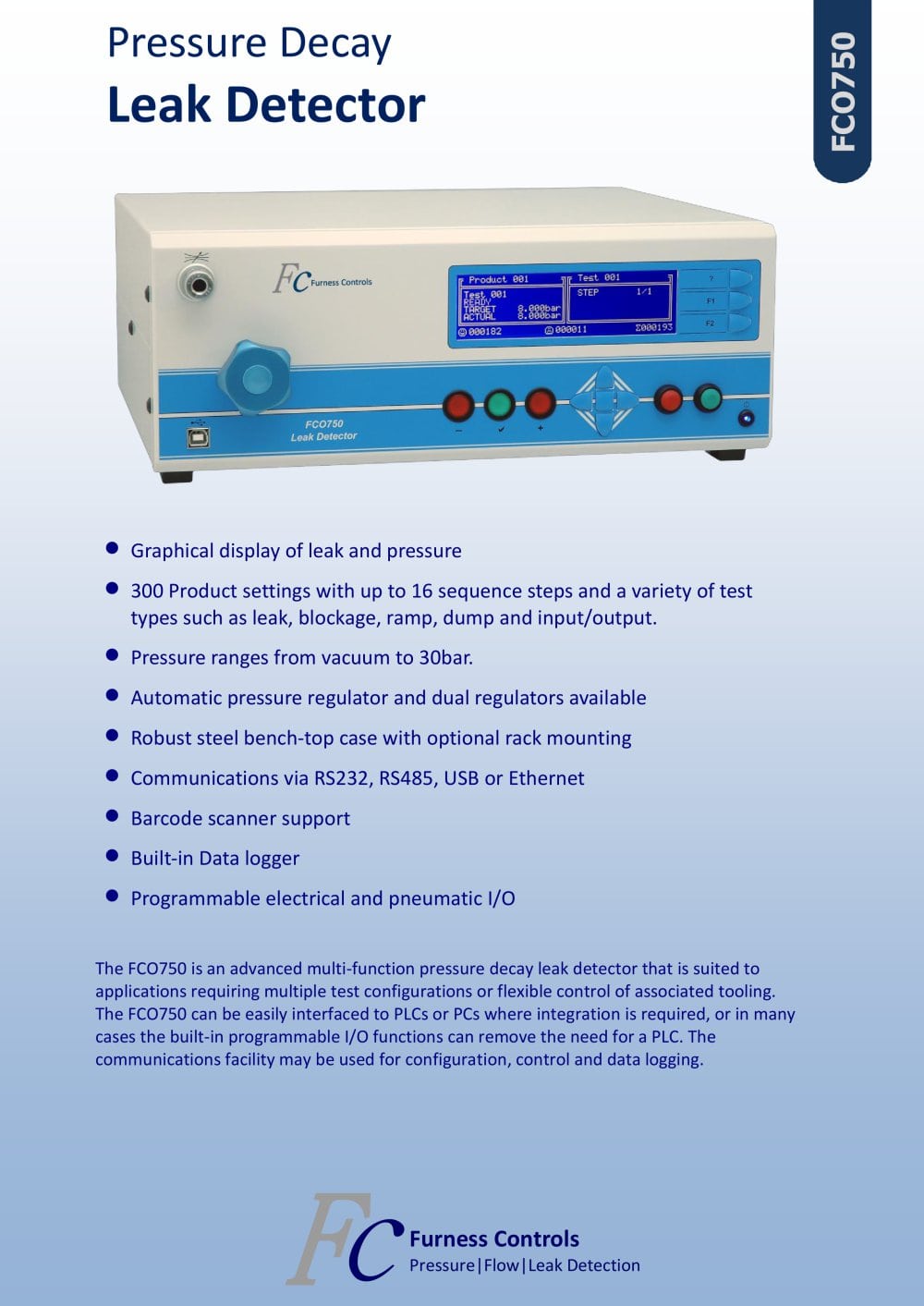

Pressure Decay Leak Detector • Graphical display of leak and pressure • 300 Product settings with up to 16 séquence steps and a variety of test types such as leak, blockage, ramp, dump and input/output. • Pressure ranges from vacuum to 30bar. • Automatic pressure regulator and dual regulators available • Robust steel bench-top case with optional rack mounting • Communications via RS232, RS485, USB or Ethernet • Barcode scanner support • Built-in Data logger with USB memory stick connection • Programmable electrical and pneumatic I/O The FCO750 is an advanced multi-function pressure decay leak detector that is suited to applications requiring multiple test configurations or flexible control of associated tooling. The FCO750 can be easily interfaced to PLCs or PCs where integration is required, or in many cases the built-in programmable I/O functions can remove the need for a PLC. The communications facility may be used for configuration, control and data logging.
