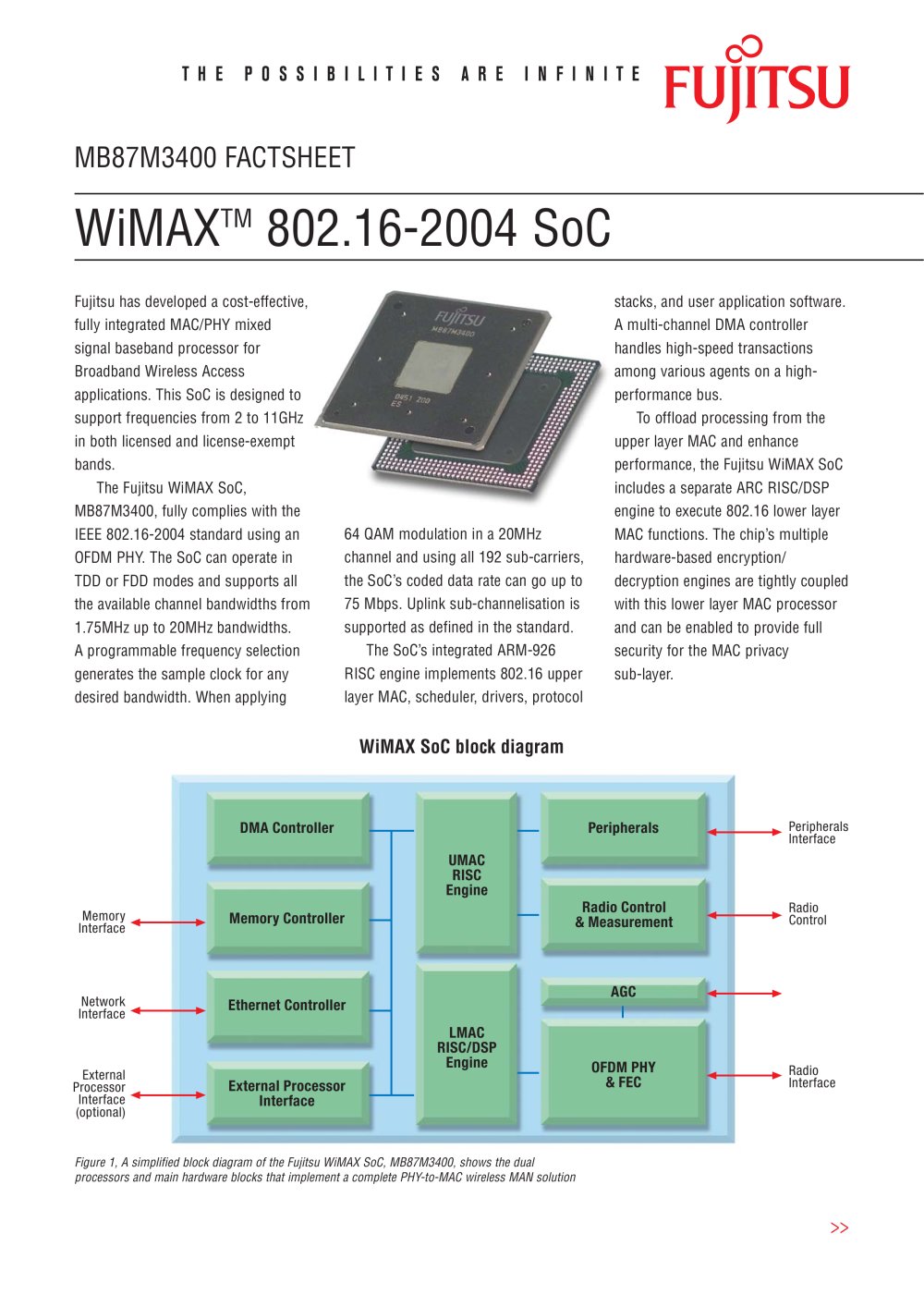

| THE POSSIBILITIES ARE INFINITE | FUJITSU | ||||||||||||||||||||||||||
| MB87M3400 FACTSHEET | |||||||||||||||||||||||||||
| WMAX™ 802.16-2004 SoC | |||||||||||||||||||||||||||
| Fujitsu has developed a cost-effective, fully integrated MAC/PHY mixed signal baseband processor for Broadband Wireless Access applications. This SoC is designed to support frequencies from 2 to 11GHz in both licensed and license-exempt bands. The Fujitsu WiMAX SoC, MB87M3400, fully complies with the IEEE 802.16-2004 standard using an OFDM PHY. The SoC can operate in TDD or FDD modes and supports att the available channel bandwidths from 1.75MHz up to 20MHz bandwidths. A programmable frequency selection generates the sample clock for any desired bandwidth. When applying | stacks, and user application software. A multi-channel DMA controller handles high-speed transactions among various agents on a highperformance bus. To offload processing from the upper layer MAC and enhance performance, the Fujitsu WiMAX SoC includes a separate ARC RISC/DSP engine to execute 802.16 lower layer MAC functions. The chip's multiple hardware-based encryption/ decryption engines are tightly coupled with this lower layer MAC processor and can be enabled to provide full security for the MAC privacy sub-layer. | ||||||||||||||||||||||||||
| 64 QAM modulation in a 20MHz channel and using all 192 sub-carriers, the SoCs coded data rate can go up to 75 Mbps. Uplink sub-channelisation is supported as defined in the standard. The SoCs integrated ARM-926 RISC engine implements 802.16 upper layer MAC, scheduler, drivers, protocol | |||||||||||||||||||||||||||
| WiMAX SoC block diagram | |||||||||||||||||||||||||||
| Peripherals Interface | |||||||||||||||||||||||||||
| Radio Control | |||||||||||||||||||||||||||
| Memory Interface | |||||||||||||||||||||||||||
| Network Interface | |||||||||||||||||||||||||||
| Radio Interface | |||||||||||||||||||||||||||
| External Processor Interface * (optional) | |||||||||||||||||||||||||||
| Figure 1, A simplified bttock diagram of the Fujitsu WiMAX SoC, MB87M3400, shows the duatt processors and main hardware bttocks that impttement a compttete PHY-to-MAC wirettess MAN sottution | |||||||||||||||||||||||||||
