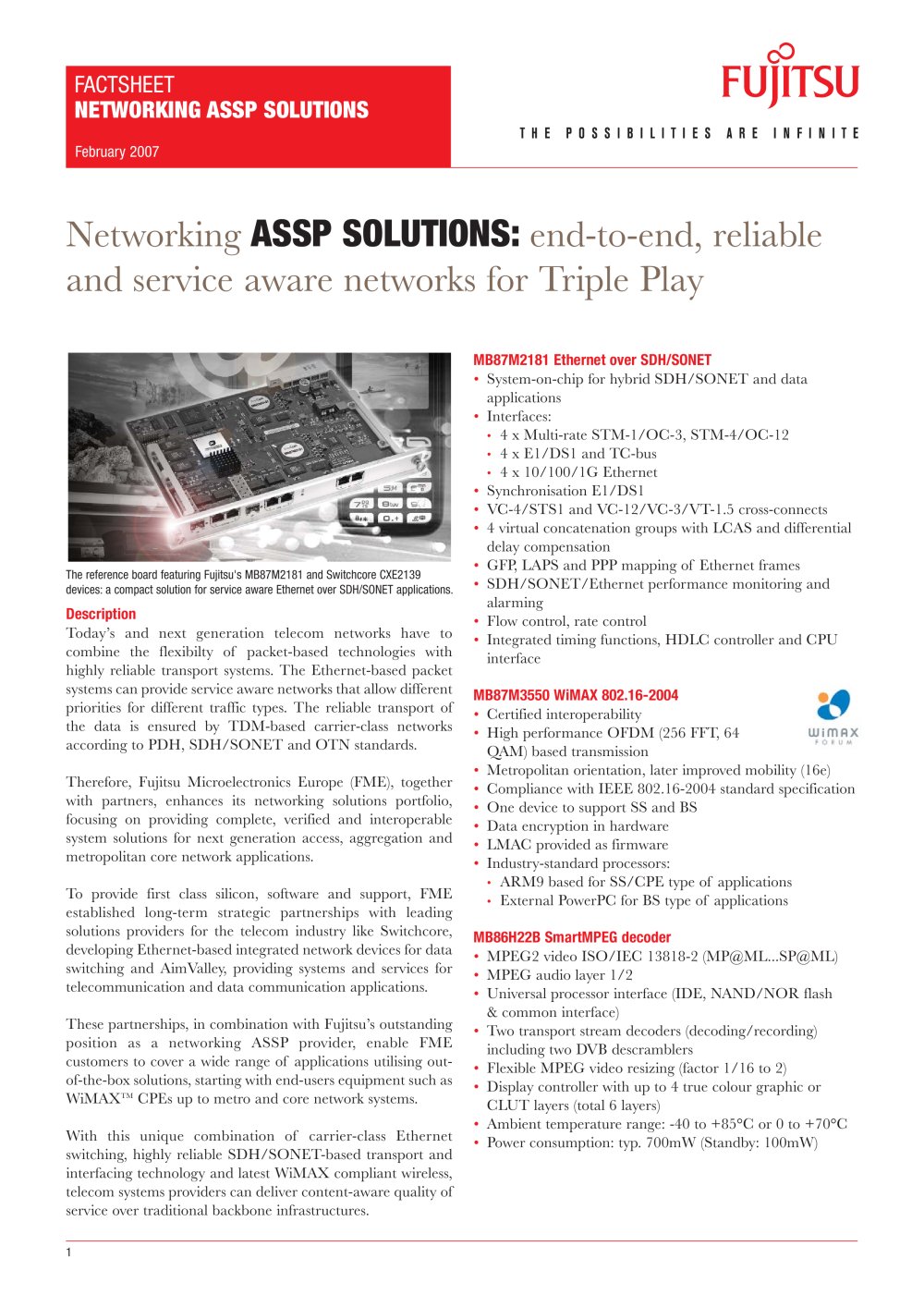

FACTSHEET NETWORKING ASSP SOLUTIONS

February 2007

Networking ASSP Solutions - 34295 Networking ASSP SOLUTIONS:

MB87M2181 Ethernet over SDH/SONET •System-on-chip for hybrid SDH/SONET and data applications•Interfaces:

end-to-end,reliableand service aware networks for Triple Play

• 4 x Multi-rate STM-1/OC-3,STM-4/OC-12
• 4 x E1/DS1 and TC-bus
• 4 x 10/100/1G Ethernet•Synchronisation E1/DS1•VC-4/STS1 and VC-12/VC-3/VT-1.5 cross-connects•4 virtual concatenation groups with LCAS and differential delay compensation•GFP,LAPS and PPP mapping ofEthernet frames•SDH/SONET/Ethernet performance monitoring and alarming•Flow control,rate control•Integrated timing functions,HDLC controller and CPU interface
The reference board featuring Fujitsu's MB87M2181 and Switchcore CXE2139 devices:a compact solution for service aware Ethernet over SDH/SONET applications. Description Today’s and next generation telecom networks have to combine the flexibilty ofpacket-based technologies with highly reliable transport systems.The Ethernet-based packet systems can provide service aware networks that allow different priorities for different traffic types.The reliable transport of the data is ensured by TDM-based carrier-class networks according to PDH,SDH/SONET and OTN standards.Therefore,Fujitsu Microelectronics Europe (FME),togetherwith partners,enhances its networking solutions portfolio, focusing on providing complete,verified and interoperable system solutions for next generation access,aggregation and metropolitan core network applications.To provide first class silicon,software and support,FMEestablished long-term strategic partnerships with leading solutions providers for the telecom industry like Switchcore, developing Ethernet-based integrated network devices for data switching and AimValley,providing systems and services for telecommunication and data communication applications.These partnerships,in combination with Fujitsu’s outstandingposition as a networking ASSP provider,enable FME customers to cover a wide range ofapplications utilising out- of-the-box solutions,starting with end-users equipment such as WiMAX MB87M3550 WiMAX 802.16-2004 •Certified interoperability•High performance OFDM (256 FFT,64 QAM) based transmission•Metropolitan orientation,later improved mobility (16e)•Compliance with IEEE 802.16-2004 standard specification•One device to support SS and BS•Data encryption in hardware•LMAC provided as firmware•Industry-standard processors:
• ARM9 based for SS/CPE type ofapplications
• External PowerPC for BS type ofapplications MB86H22B SmartMPEG decoder •MPEG2 video ISO/IEC 13818-2 (MP@ML...SP@ML)•MPEG audio layer 1/2•Universal processor interface (IDE,NAND/NOR flash & common interface)•Two transport stream decoders (decoding/recording) including two DVB descramblers•Flexible MPEG video resizing (factor 1/16 to 2)•Display controller with up to 4 true colour graphic or CLUT layers (total 6 layers)•Ambient temperature range:-40 to +85°C or 0 to +70°C•Power consumption:typ.700mW (Standby:100mW)
TM CPEs up to metro and core network systems.With this unique combination ofcarrier-class Ethernetswitching,highly reliable SDH/SONET-based transport and interfacing technology and latest WiMAX compliant wireless, telecom systems providers can deliver content-aware quality of service over traditional backbone infrastructures.
