Features •3.0 – 5.5 volt supply range•544kB Flash memory•Flash security:Read-out protection•32kB RAM•Max.100MHz operating frequency•Hardware watchdog•1 FlexRay interface with 2 channels•CAN:2 channels with 32 message buffers each•LIN-UART:3 channels including FIFO function•10-bit ADC:17 channels •PPG:12 channels•Output Compare Unit:6 channels•Input Capture:8 channels•Stop Watch Function:1 channel •I

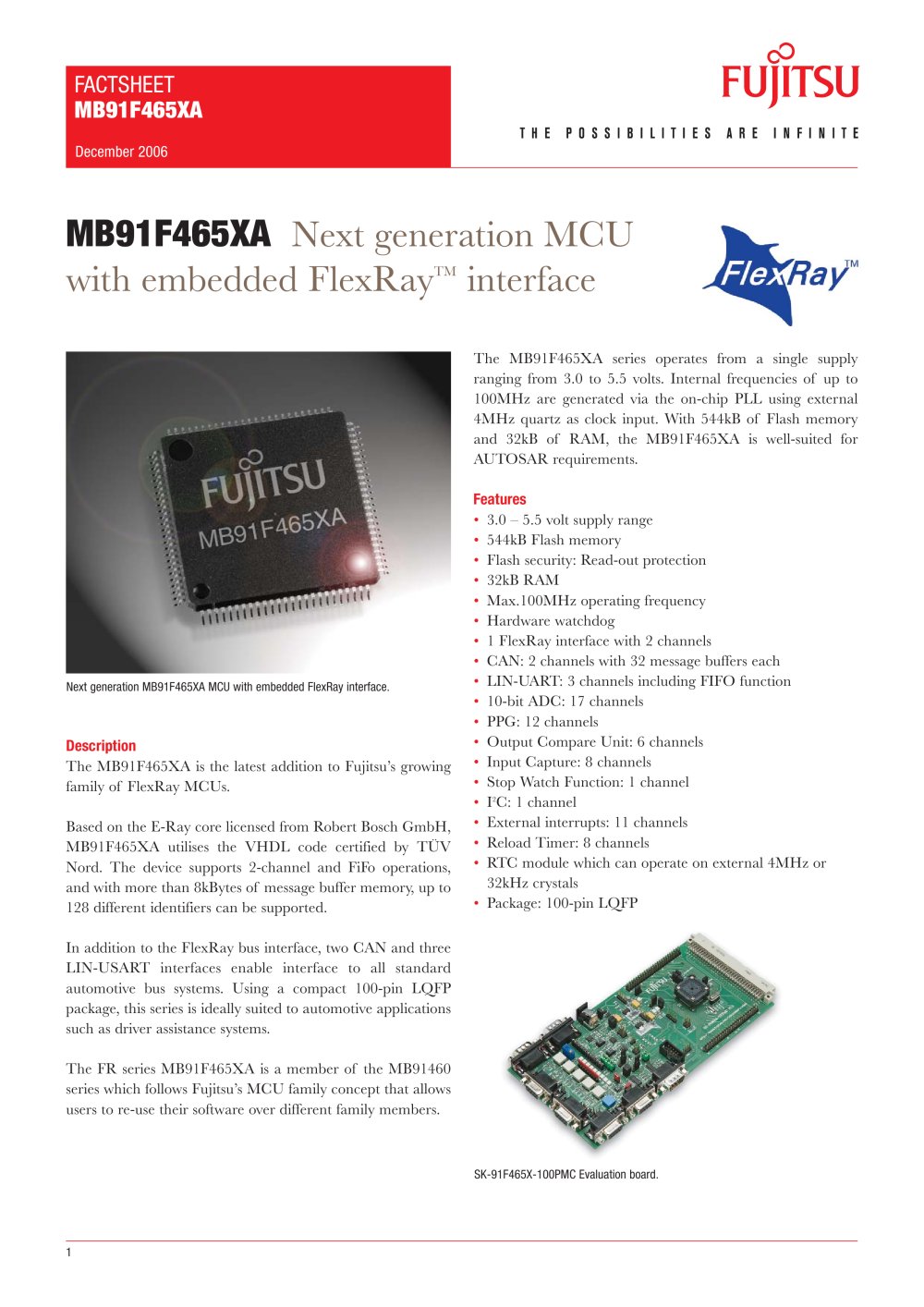

FACTSHEET MB91F465XA

December 2006

MB91F465XA-factsheet - 34295 MB91F465XA Next generation MCU with embedded FlexRay

TM

interface

Next generation MB91F465XA MCU with embedded FlexRay interface. Description The MB91F465XA is the latest addition to Fujitsu’s growing family ofFlexRay MCUs.Based on the E-Ray core licensed from Robert Bosch GmbH,MB91F465XA utilises the VHDL code certified by TÜV Nord.The device supports 2-channel and FiFo operations, and with more than 8kBytes ofmessage buffer memory,up to 128 different identifiers can be supported.In addition to the FlexRay bus interface,two CAN and threeLIN-USART interfaces enable interface to all standard automotive bus systems.Using a compact 100-pin LQFP package,this series is ideally suited to automotive applications such as driver assistance systems.The FR series MB91F465XA is a member ofthe MB91460series which follows Fujitsu’s MCU family concept that allows users to re-use their software over different family members. The MB91F465XA series operates from a single supplyranging from 3.0 to 5.5 volts.Internal frequencies ofup to 100MHz are generated via the on-chip PLL using external 4MHz quartz as clock input.With 544kB ofFlash memory and 32kB ofRAM,the MB91F465XA is well-suited for AUTOSAR requirements.
2 C:1 channel •External interrupts:11 channels•Reload Timer:8 channels•RTC module which can operate on external 4MHz or32kHz crystals•Package:100-pin LQFP
SK-91F465X-100PMC Evaluation board. 1
