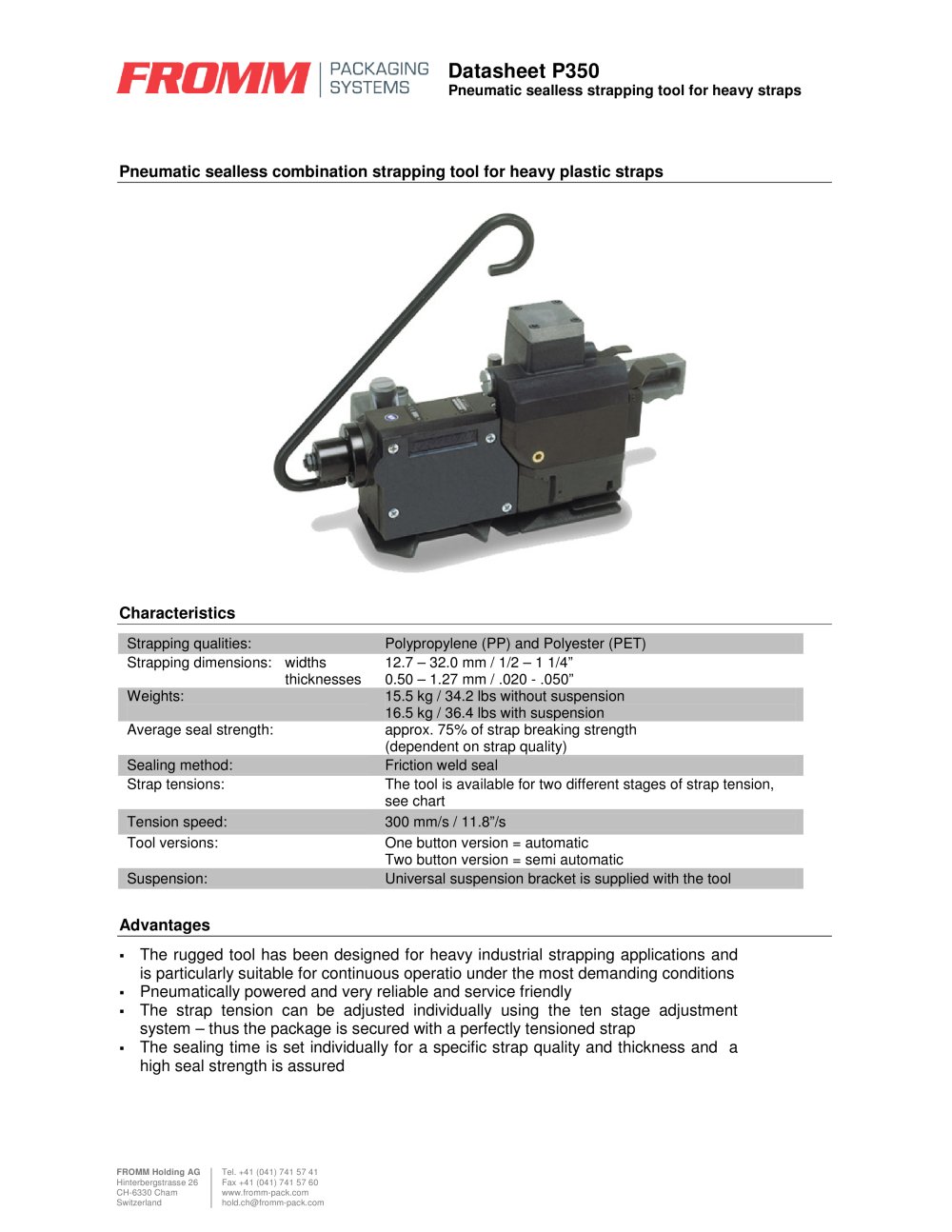

Datasheet P350

Pneumatic sealless strapping tool for heavy straps

Pneumatic sealless combination strapping tool for heavy plastic straps Characteristics

Strapping qualities: Polypropylene (PP) and Polyester (PET) Strapping dimensions: widths thicknesses 12.7 – 32.0 mm / 1/2 – 1 1/4” 0.50 – 1.27 mm / .020 - .050” Weights: 15.5 kg / 34.2 lbs without suspension 16.5 kg / 36.4 lbs with suspension Average seal strength: approx. 75% of strap breaking strength (dependent on strap quality) Sealing method: Friction weld seal Strap tensions: The tool is available for two different stages of strap tension, see chart Tension speed: 300 mm/s / 11.8”/s Tool versions: One button version = automatic Two button version = semi automatic Suspension: Universal suspension bracket is supplied with the tool

Advantages The rugged tool has been designed for heavy industrial strapping applications and is particularly suitable for continuous operatio under the most demanding conditions Pneumatically powered and very reliable and service friendly The strap tension can be adjusted individually using the ten stage adjustment system – thus the package is secured with a perfectly tensioned strap The sealing time is set individually for a specific strap quality and thickness and a high seal strength is assured

FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
