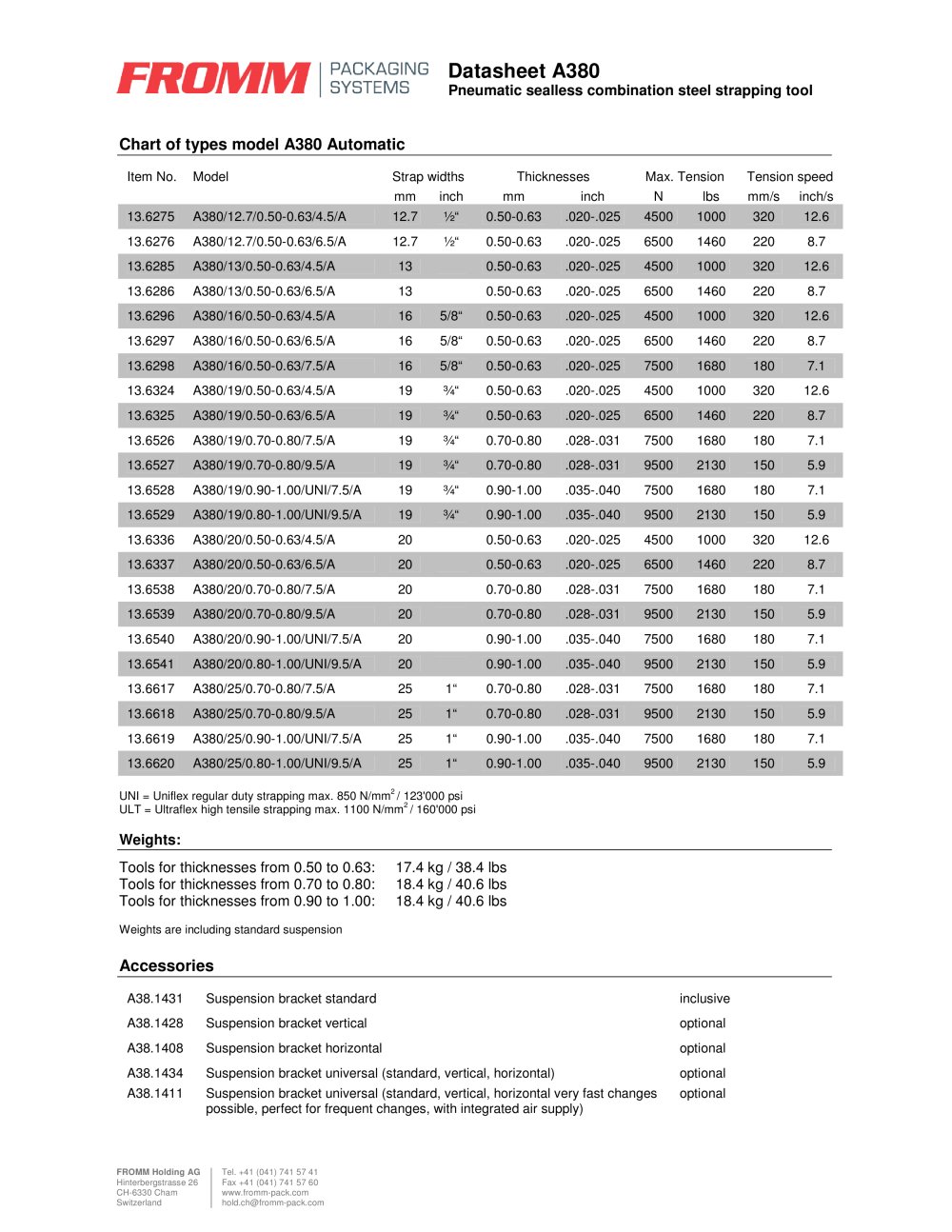

Datasheet A380

Pneumatic sealless combination steel strapping tool

Chart of types model A380 Automatic

Item No. Model Strap widths Thicknesses Max. Tension Tension speed mm inch mm inch N lbs mm/s inch/s 13.6275 A380/12.7/0.50-0.63/4.5/A 12.7 ½“ 0.50-0.63 .020-.025 4500 1000 320 12.6 13.6276 A380/12.7/0.50-0.63/6.5/A 12.7 ½“ 0.50-0.63 .020-.025 6500 1460 220 8.7 13.6285 A380/13/0.50-0.63/4.5/A 13 0.50-0.63 .020-.025 4500 1000 320 12.6 13.6286 A380/13/0.50-0.63/6.5/A 13 0.50-0.63 .020-.025 6500 1460 220 8.7 13.6296 A380/16/0.50-0.63/4.5/A 16 5/8“ 0.50-0.63 .020-.025 4500 1000 320 12.6 13.6297 A380/16/0.50-0.63/6.5/A 16 5/8“ 0.50-0.63 .020-.025 6500 1460 220 8.7 13.6298 A380/16/0.50-0.63/7.5/A 16 5/8“ 0.50-0.63 .020-.025 7500 1680 180 7.1 13.6324 A380/19/0.50-0.63/4.5/A 19 ¾“ 0.50-0.63 .020-.025 4500 1000 320 12.6 13.6325 A380/19/0.50-0.63/6.5/A 19 ¾“ 0.50-0.63 .020-.025 6500 1460 220 8.7 13.6526 A380/19/0.70-0.80/7.5/A 19 ¾“ 0.70-0.80 .028-.031 7500 1680 180 7.1 13.6527 A380/19/0.70-0.80/9.5/A 19 ¾“ 0.70-0.80 .028-.031 9500 2130 150 5.9 13.6528 A380/19/0.90-1.00/UNI/7.5/A 19 ¾“ 0.90-1.00 .035-.040 7500 1680 180 7.1 13.6529 A380/19/0.80-1.00/UNI/9.5/A 19 ¾“ 0.90-1.00 .035-.040 9500 2130 150 5.9 13.6336 A380/20/0.50-0.63/4.5/A 20 0.50-0.63 .020-.025 4500 1000 320 12.6 13.6337 A380/20/0.50-0.63/6.5/A 20 0.50-0.63 .020-.025 6500 1460 220 8.7 13.6538 A380/20/0.70-0.80/7.5/A 20 0.70-0.80 .028-.031 7500 1680 180 7.1 13.6539 A380/20/0.70-0.80/9.5/A 20 0.70-0.80 .028-.031 9500 2130 150 5.9 13.6540 A380/20/0.90-1.00/UNI/7.5/A 20 0.90-1.00 .035-.040 7500 1680 180 7.1 13.6541 A380/20/0.80-1.00/UNI/9.5/A 20 0.90-1.00 .035-.040 9500 2130 150 5.9 13.6617 A380/25/0.70-0.80/7.5/A 25 1“ 0.70-0.80 .028-.031 7500 1680 180 7.1 13.6618 A380/25/0.70-0.80/9.5/A 25 1“ 0.70-0.80 .028-.031 9500 2130 150 5.9 13.6619 A380/25/0.90-1.00/UNI/7.5/A 25 1“ 0.90-1.00 .035-.040 7500 1680 180 7.1 13.6620 A380/25/0.80-1.00/UNI/9.5/A 25 1“ 0.90-1.00 .035-.040 9500 2130 150 5.9
UNI = Uniflex regular duty strapping max. 850 N/mm 2 / 123'000 psi ULT = Ultraflex high tensile strapping max. 1100 N/mm 2 / 160'000 psi

Weights: Tools for thicknesses from 0.50 to 0.63: 17.4 kg / 38.4 lbs Tools for thicknesses from 0.70 to 0.80: 18.4 kg / 40.6 lbs Tools for thicknesses from 0.90 to 1.00: 18.4 kg / 40.6 lbs

Weights are including standard suspension

Accessories

A38.1431 Suspension bracket standard inclusive A38.1428 Suspension bracket vertical optional A38.1408 Suspension bracket horizontal optional A38.1434 Suspension bracket universal (standard, vertical, horizontal) optional A38.1411 Suspension bracket universal (standard, vertical, horizontal very fast changes possible, perfect for frequent changes, with integrated air supply) optional
FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
