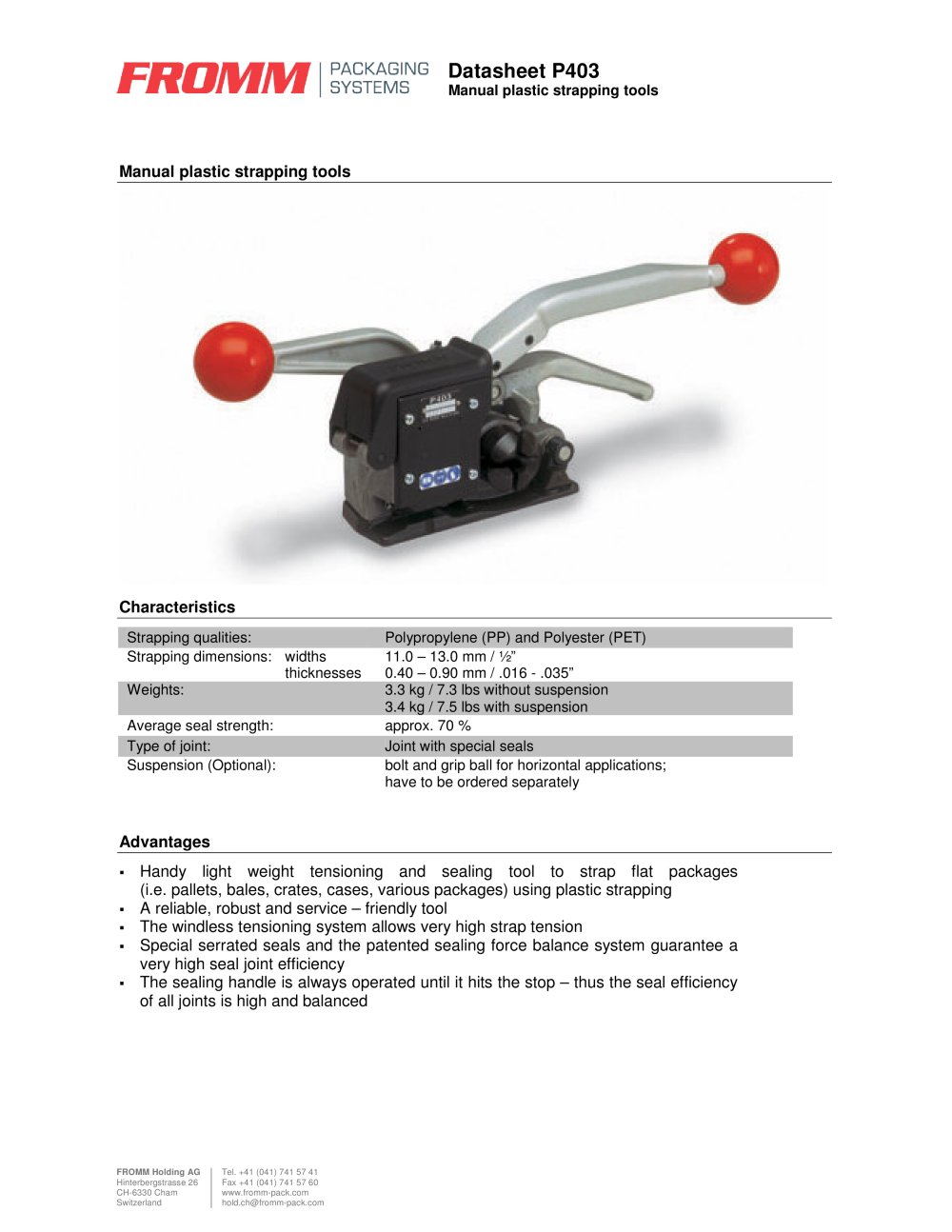

Datasheet P403

Manual plastic strapping tools Manual plastic strapping tools Characteristics
Strapping qualities: Polypropylene (PP) and Polyester (PET) Strapping dimensions: widths thicknesses 11.0 – 13.0 mm / ½” 0.40 – 0.90 mm / .016 - .035” Weights: 3.3 kg / 7.3 lbs without suspension 3.4 kg / 7.5 lbs with suspension Average seal strength: approx. 70 % Type of joint: Joint with special seals Suspension (Optional): bolt and grip ball for horizontal applications; have to be ordered separately Advantages Handy light weight tensioning and sealing tool to strap flat packages (i.e. pallets, bales, crates, cases, various packages) using plastic strapping A reliable, robust and service – friendly tool The windless tensioning system allows very high strap tension Special serrated seals and the patented sealing force balance system guarantee a very high seal joint efficiency The sealing handle is always operated until it hits the stop – thus the seal efficiency of all joints is high and balanced
FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
