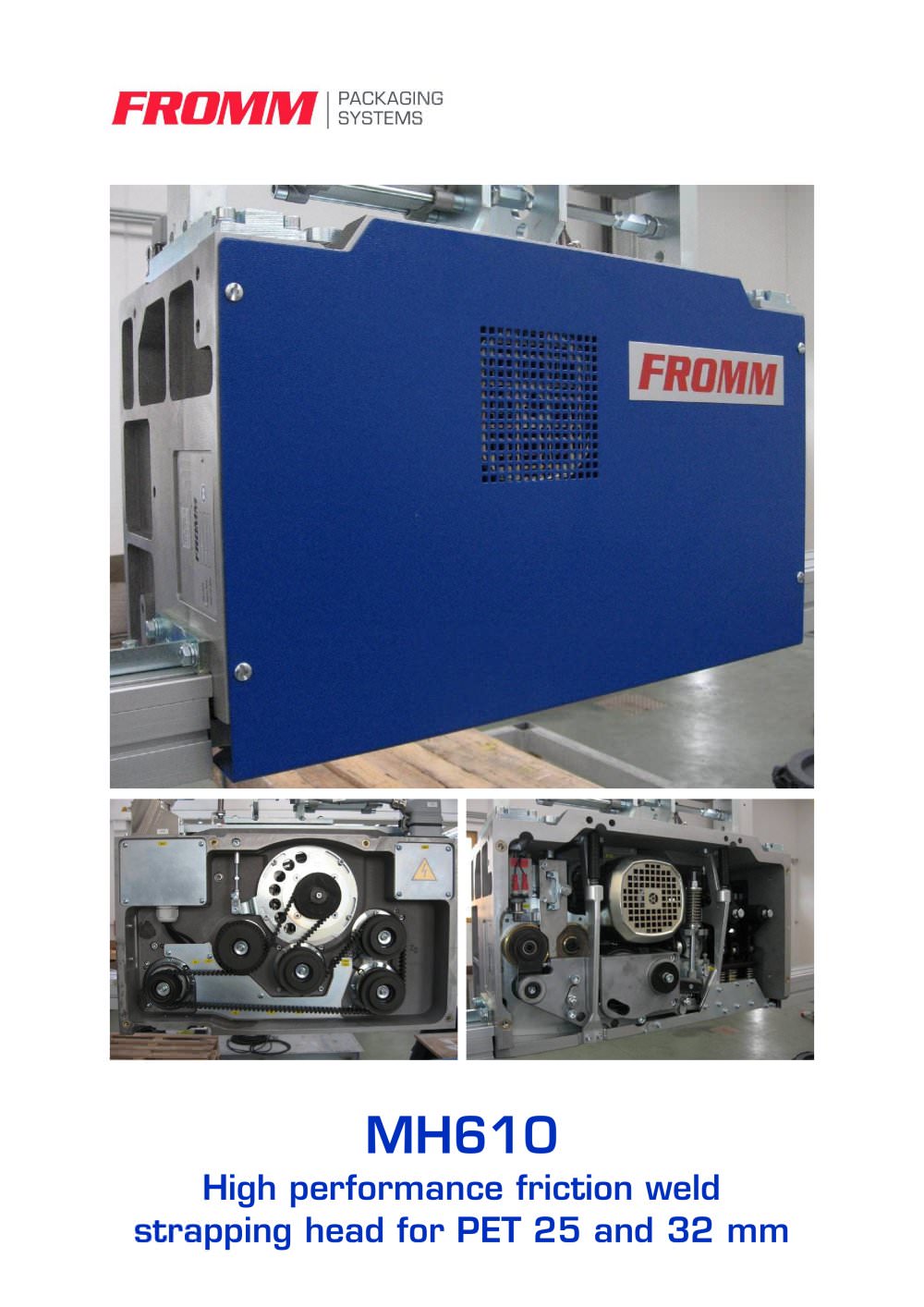

Datasheet MH610

Plastic friction weld strapping head

All electric high tension plastic friction weld strapping head The MH610 strapping head has been designed for automatic, heavy duty industrial PET strapping applications. The head can process PET strapping from widths 25.0 to 32.0 mm without any modifications. Very high strap tension settings of up to 7000N allows the application of PET strapping with break strengths up to 12000N (2700lbs). It is the ideal system for transport securing of heavy, unitized goods in the Aluminium and Steel industry. Technical data for strapping head MH610

Suitable strapping qualities: Polyester (PET) Strapping dimensions: widths thicknesses 25.0 – 32.0 mm / 1 – 1 ¼” 0.40 – 1.35 mm / 0.016 – 0.053” Average seal strength: up to 80% of strap breaking strength (dependent on strap quality) Sealing method: friction welding Strap tension: 7000N / 1570 lbs adjustable Feed/retract speed: 5.3 m/s / 17.3 ft/s Tension speed: 105 mm/s / 0.34 ft/s Package size: min. W150 x H180 mm max. W3000 x H3000 mm Power supply: 400V – 3PE – 50Hz 230V – 3PE – 60Hz Consumption: 1.1KW Control Voltage: 24V DC Dimension: L 615 x W 332 x H 446 mm Weight: 118 kg / 260 lbs
FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
