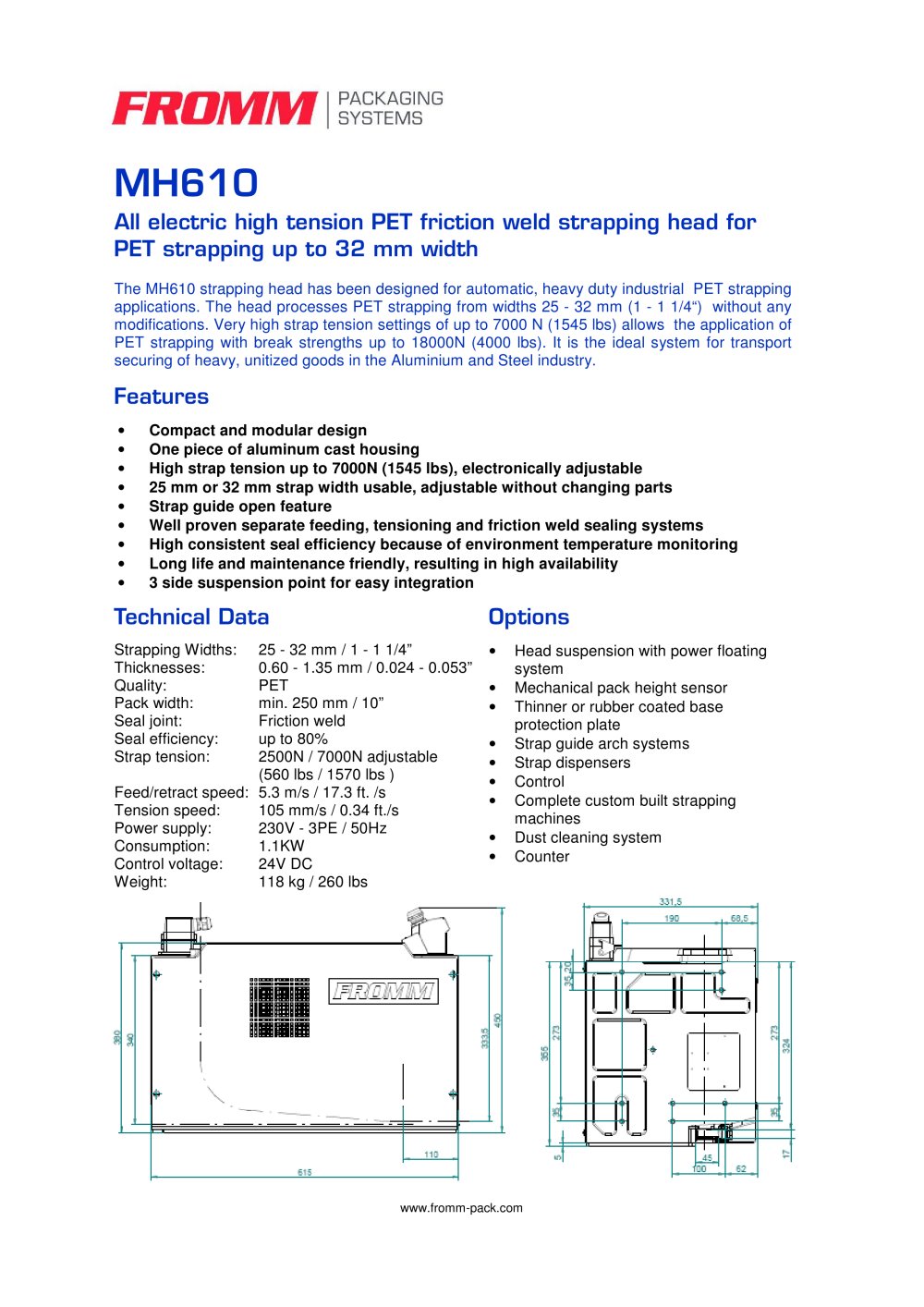

Datasheet MH610

Plastic friction weld strapping head Chart of types strapping head MH610
Item No. Model Strap widths Strap thicknesses Max. Tension mm inch mm inch N lbs 47.5610 MH610/25-32/0.40-0.59/7.0/PET 25-32 1-1¼ 0.40-0.59 .016-.023 7000 1570 47.5611 MH610/25-32/0.60-0.75/7.0/PET 25-32 1-1¼ 0.60-0.75 .024-.030 7000 1570 47.5612 MH610/25-32/0.80-1.35/7.0/PET 25-32 1-1¼ 0.80-1.35 .031-.053 7000 1570 47.5613 MH610/25-32/0.40-0.59/2.5/PET 25-32 1-1¼ 0.40.-0.59 .016-.023 2500 560 47.5614 MH610/25-32/0.60-0.75/2.5/PET 25-32 1-1¼ 0.60-0.75 .024-.030 2500 560 Features Compact and modular design One piece of aluminium cast housing High strap tension up to 7000N (1570 lbs) adjustable 25mm or 32mm strap width usable, without changing parts Strap guide open feature Well proven separate feeding, tensioning and friction weld sealing systems High consistent seal efficiency because of environment temperature monitoring Use of state-of-the-art manufacturing, controlling and material technology Three side suspension points and plug connections for easy integration Long life and maintenance friendly, resulting in high availabiltiy Options De-coiler for jumbo-coils Sword Telescopic insertion frame Movable machine Side sealing machine Head suspension with power floating system Edge protection feed systems top and bottom Timber press system with various magazines Vertical and lateral press systems up to 80 KN Conveying systems Turntable for cross strapping Mechanical pack height sensor Re-inforced base plate Strap guide arch systems Control
FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
