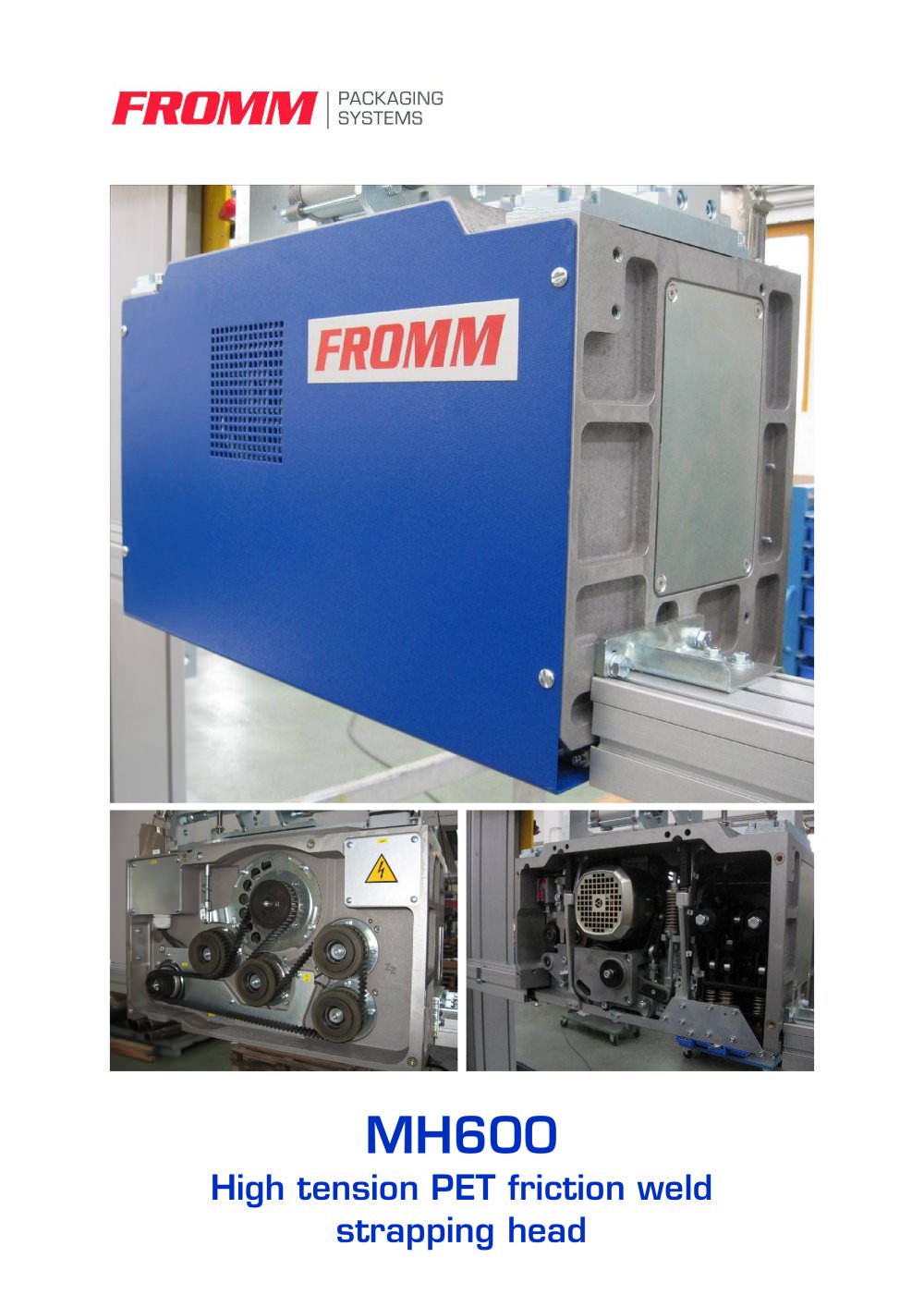

Datasheet MH600

Plastic friction weld strapping head

All electric high tension plastic friction weld strapping head The MH600 strapping head has been designed for automatic heavy duty industrial PET strapping installations. The head processes strapping from 13 – 19mm of various thicknesses and qualities. The high strap tension feature (up to 7000N) allows applications of PET strapping with break strength up to 12000N (2700 lbs). Technical data for strapping head MH600

Suitable strapping qualities: Polyester (PET) Strapping dimensions: widths thicknesses 13.0 – 19.0 mm / ½ - ¾” 0.64 – 1.53 mm / 0.025 – 0.060” Average seal strength: up to 85% of strap breaking strength (dependent on strap quality) Sealing method: friction welding Strap tension: 7000N / 1570 lbs adjustable Feed/retract speed: 5.3 m/s / 17.3 ft/s Tension speed: 105 mm/s / 0.34 ft/s Package size: min. W150 x H180 mm max. W3000 x H3000 mm Power supply: 400V – 3PE – 50Hz 230V – 3PE – 60Hz Consumption: 1.1KW Control Voltage: 24V DC Dimension: L 615 x W 307 x H 446 mm Weight: 115 kg / 253 lbs
