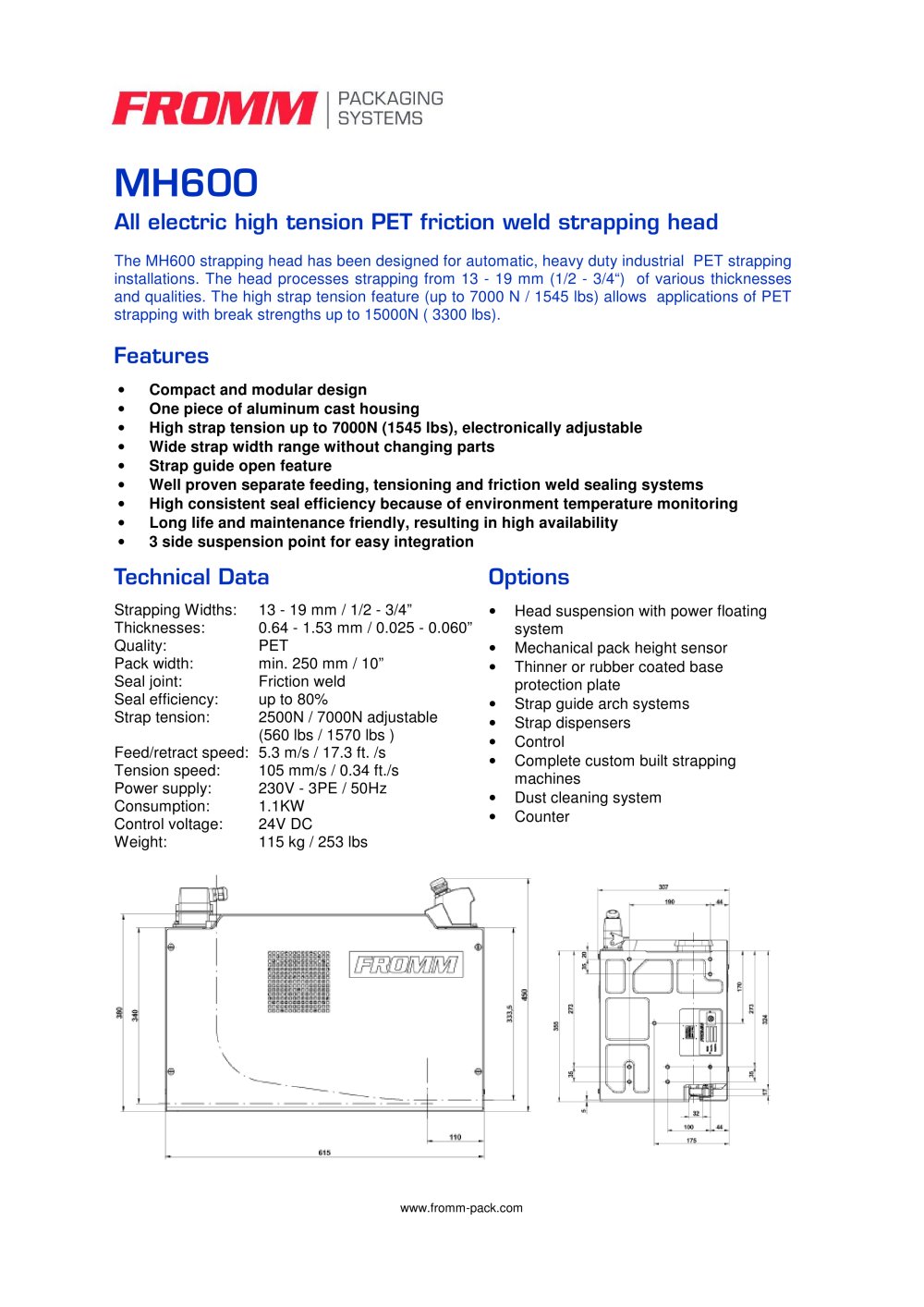

Datasheet MH600

Plastic friction weld strapping head Chart of types strapping head MH600
Item No. Model Strap widths Strap thicknesses Max. Tension mm inch mm inch N lbs 47.5601 MH600/13-19/0.64-0.75/7.0/PET 13-19 ½-¾ 0.64-0.75 .025-.030 7000 1570 47.5602 MH600/13-19/0.80-1.35/7.0/PET 13-19 ½-¾ 0.80-1.35 .031-.053 7000 1570 47.5603 MH600/13-19/0.64-0.75/2.5/PET 13-19 ½-¾ 0.64-0.75 .025-.030 2500 560 47.5605 MH600/19/1.53/7.0/PET 19 ¾ 1.53 .060 7000 1570 Features Compact and modular design One piece of aluminium cast housing High strap tension up to 7000N (1570 lbs) adjustable Wide strap width range without changing parts Strap guide open feature Well proven friction weld sealing system High consistent seal efficiency because of environment temperature monitoring Dust cleaning system Three side suspension points for easy integration Options De-coiler for jumbo-coils Sword Telescopic insertion frame Movable machine Side sealing machine Head suspension with floating system Edge protection feed systems top and bottom Timber press system with various magazines Vertical and lateral press systems up to 80 KN Conveying systems Turntable for cross strapping Mechanical pack height sensor Re-inforced base plate
FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
