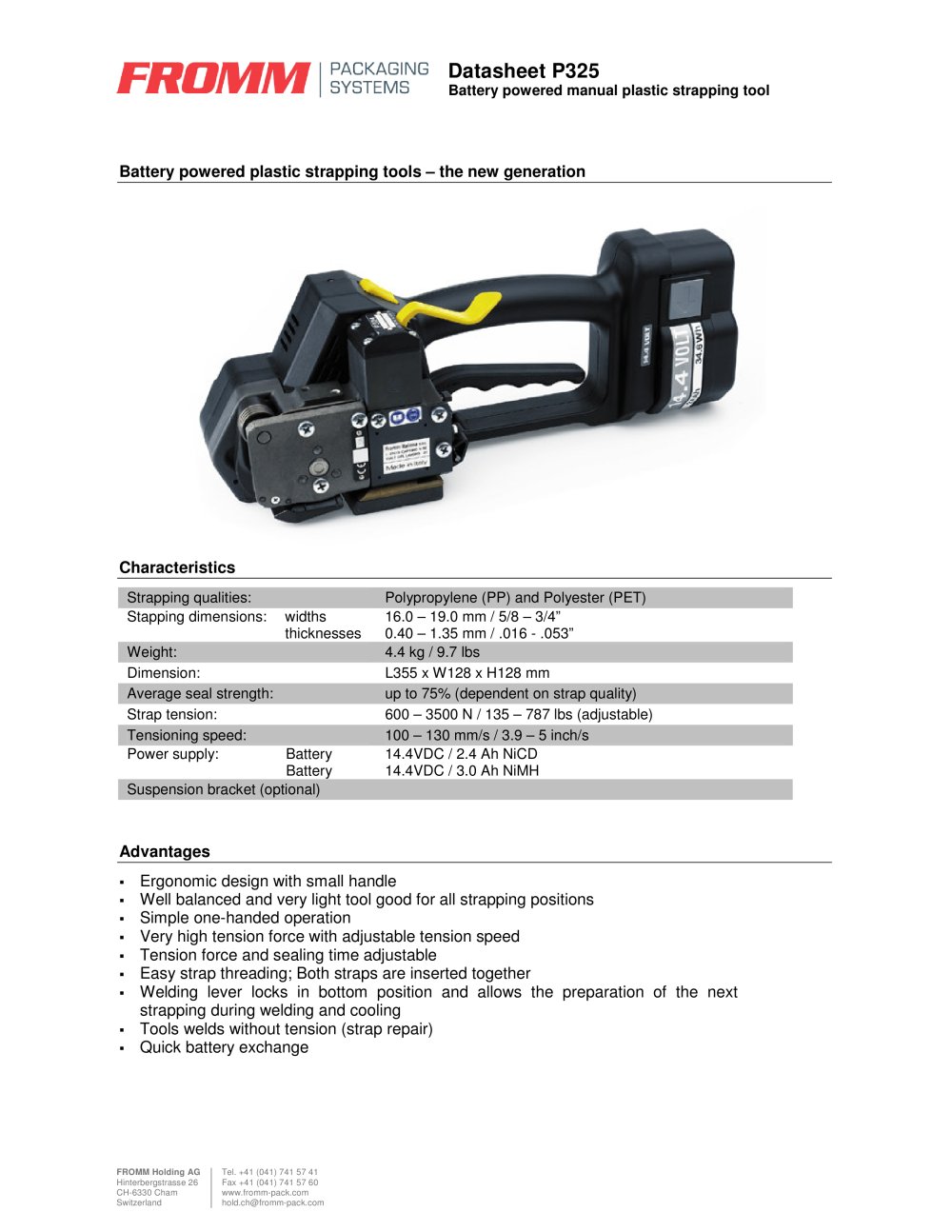

Datasheet P325

Battery powered manual plastic strapping tool Battery powered plastic strapping tools – the new generation Characteristics
Strapping qualities: Polypropylene (PP) and Polyester (PET) Stapping dimensions: widths thicknesses 16.0 – 19.0 mm / 5/8 – 3/4” 0.40 – 1.35 mm / .016 - .053” Weight: 4.4 kg / 9.7 lbs Dimension: L355 x W128 x H128 mm Average seal strength: up to 75% (dependent on strap quality) Strap tension: 600 – 3500 N / 135 – 787 lbs (adjustable) Tensioning speed: 100 – 130 mm/s / 3.9 – 5 inch/s Power supply: Battery Battery 14.4VDC / 2.4 Ah NiCD 14.4VDC / 3.0 Ah NiMH Suspension bracket (optional) Advantages Ergonomic design with small handle Well balanced and very light tool good for all strapping positions Simple one-handed operation Very high tension force with adjustable tension speed Tension force and sealing time adjustable Easy strap threading; Both straps are inserted together Welding lever locks in bottom position and allows the preparation of the next strapping during welding and cooling Tools welds without tension (strap repair) Quick battery exchange
