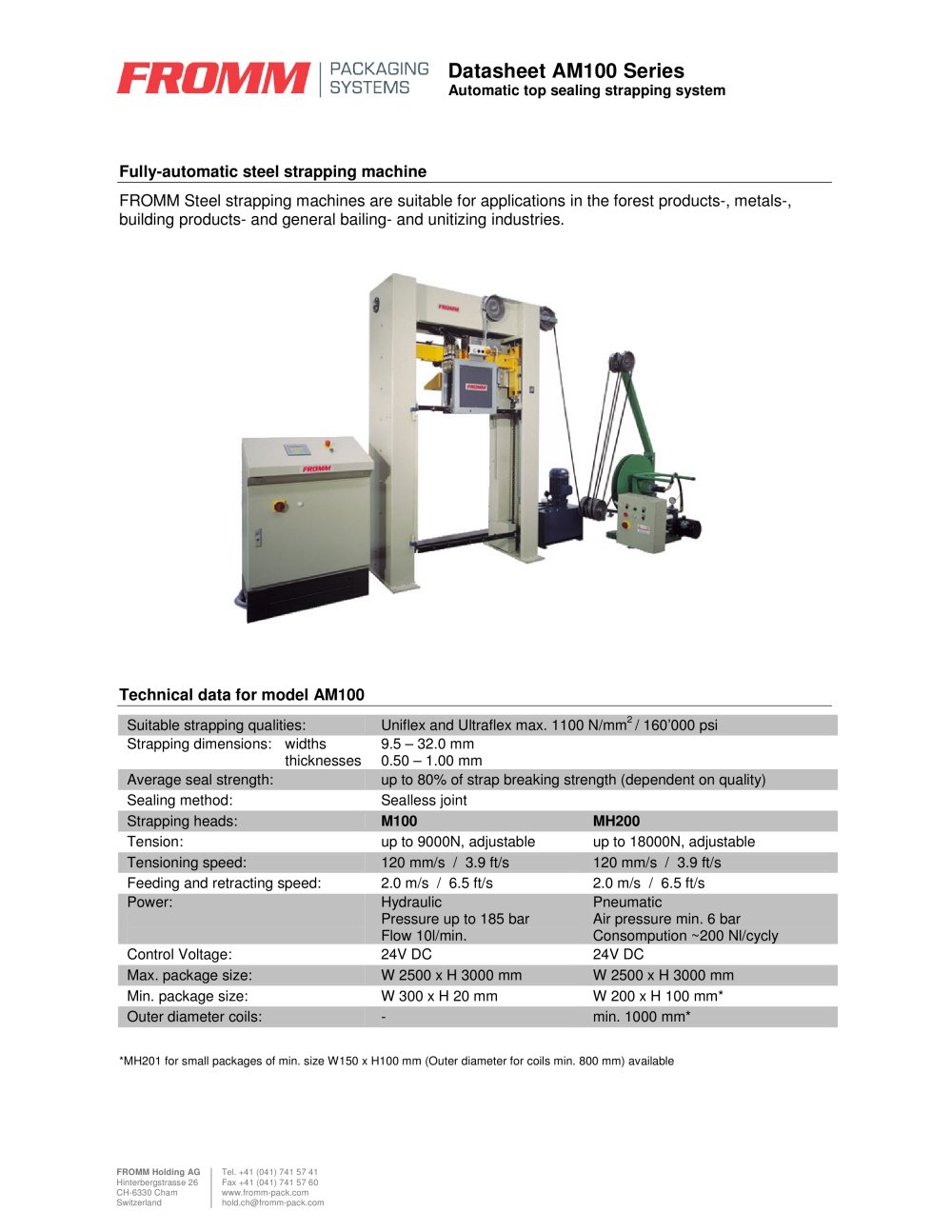

Datasheet AM100 Series

Automatic top sealing strapping system

Fully-automatic steel strapping machine FROMM Steel strapping machines are suitable for applications in the forest products-, metals-, building products- and general bailing- and unitizing industries. Technical data for model AM100

Suitable strapping qualities: Uniflex and Ultraflex max. 1100 N/mm
2 / 160’000 psi Strapping dimensions: widths thicknesses 9.5 – 32.0 mm 0.50 – 1.00 mm Average seal strength: up to 80% of strap breaking strength (dependent on quality) Sealing method: Sealless joint Strapping heads: M100 MH200 Tension: up to 9000N, adjustable up to 18000N, adjustable Tensioning speed: 120 mm/s / 3.9 ft/s 120 mm/s / 3.9 ft/s Feeding and retracting speed: 2.0 m/s / 6.5 ft/s 2.0 m/s / 6.5 ft/s Power: Hydraulic Pneumatic Pressure up to 185 bar Air pressure min. 6 bar Flow 10l/min. Consompution ~200 Nl/cycly Control Voltage: 24V DC 24V DC Max. package size: W 2500 x H 3000 mm W 2500 x H 3000 mm Min. package size: W 300 x H 20 mm W 200 x H 100 mm* Outer diameter coils: - min. 1000 mm*
*MH201 for small packages of min. size W150 x H100 mm (Outer diameter for coils min. 800 mm) available FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
