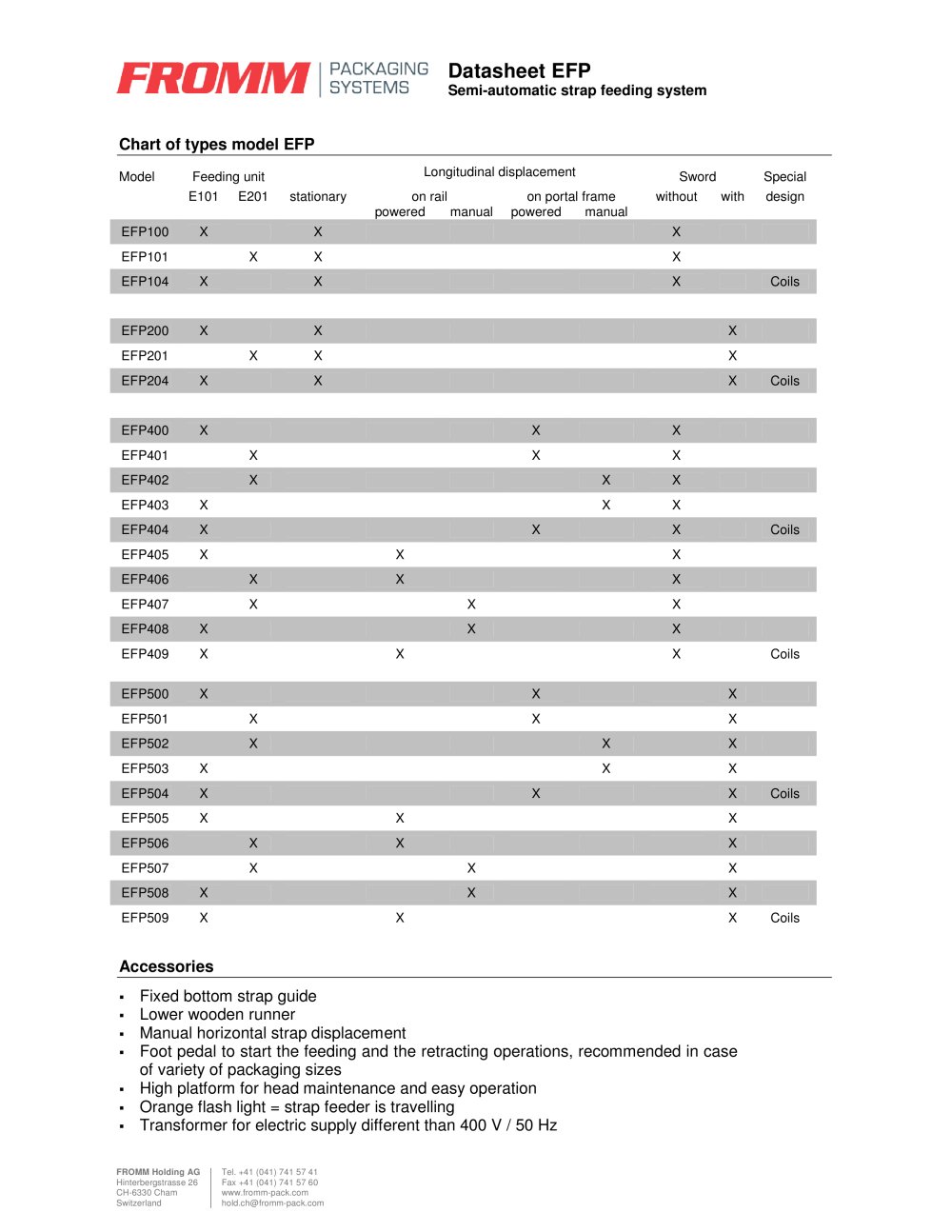

Datasheet EFP

Semi-automatic strap feeding system

Chart of types model EFP

Model Feeding unit Longitudinal displacement Sword Special E101 E201 stationary on rail on portal frame without with design powered manual powered manual EFP100 X X X EFP101 X X X EFP104 X X X Coils EFP200 X X X EFP201 X X X EFP204 X X X Coils EFP400 X X X EFP401 X X X EFP402 X X X EFP403 X X X EFP404 X X X Coils EFP405 X X X EFP406 X X X EFP407 X X X EFP408 X X X EFP409 X X X Coils EFP500 X X X EFP501 X X X EFP502 X X X EFP503 X X X EFP504 X X X Coils EFP505 X X X EFP506 X X X EFP507 X X X EFP508 X X X EFP509 X X X Coils

Accessories Fixed bottom strap guide Lower wooden runner Manual horizontal strap displacement Foot pedal to start the feeding and the retracting operations, recommended in case of variety of packaging sizes High platform for head maintenance and easy operation Orange flash light = strap feeder is travelling Transformer for electric supply different than 400 V / 50 Hz

FROMM Holding AG Tel. +41 (041) 741 57 41 Hinterbergstrasse 26 Fax +41 (041) 741 57 60 CH-6330 Cham www.fromm-pack.com Switzerland hold.ch@fromm-pack.com
