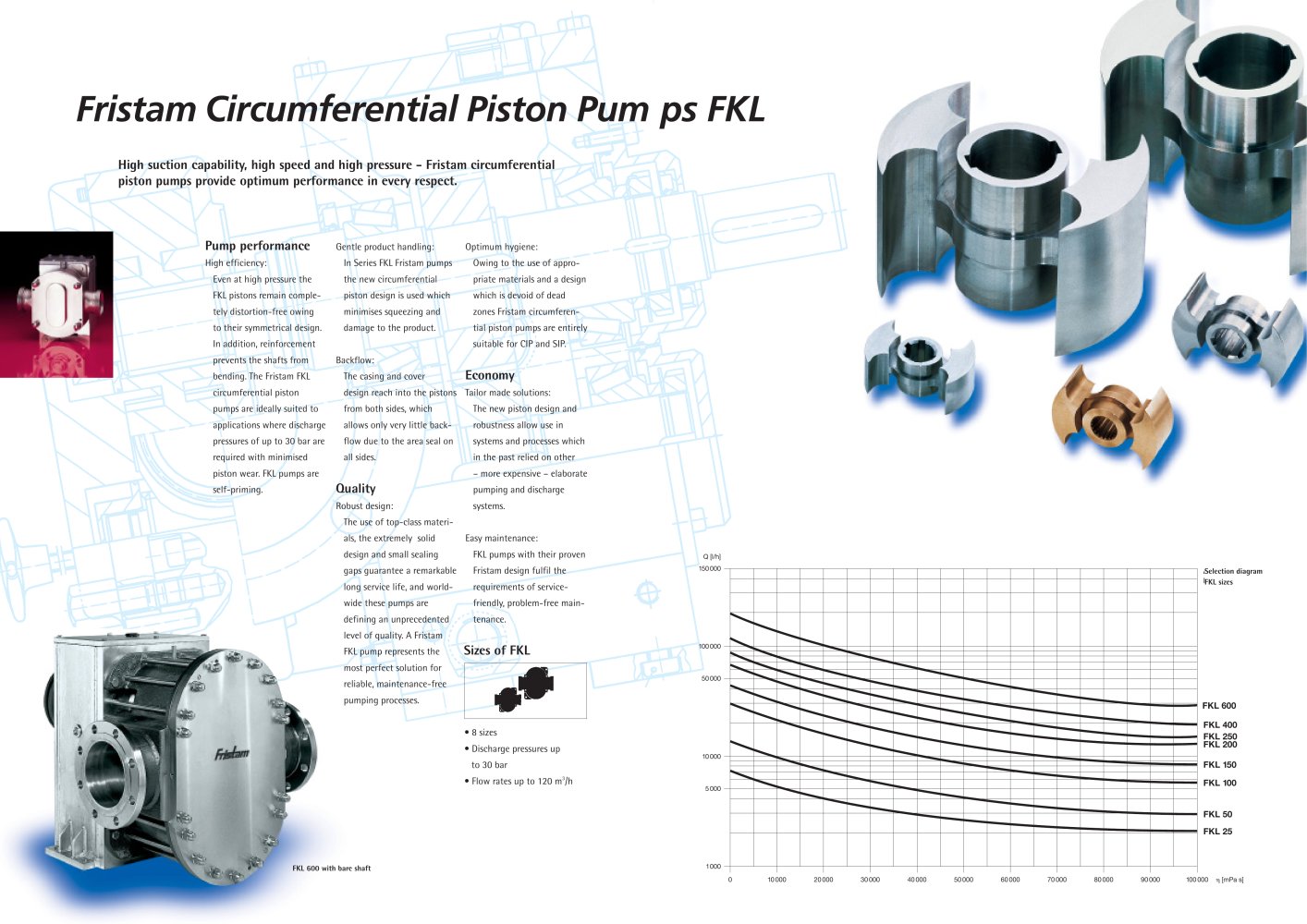

| Fristam Circumferential Piston Pum ps FKL | ||||||||||||||||
| | ||||||||||||||||
| High suction capability, high speed and high pressure - Fristam circumferential piston pumps provide optimum performance in every respect. | ||||||||||||||||
| | ||||||||||||||||
| Pump performance High efficiency: Even at high pressure the FKL pistons remain completely distortion-free owing to their symmetrical design. In addition, reinforcement prevents the shafts from bending. The Fristam FKL circumferential piston pumps are ideally suited to applications where discharge pressures of up to 30 bar are required with minimised piston wear. FKL pumps are self-priming. | Gentle product handling: In Series FKL Fristam pumps the new circumferential piston design is used which minimises squeezing and damage to the product. Backflow: The casing and cover design reach into the pistons from both sides, which allows only very little back-flow due to the area seal on all sides. Quality /---Robust design: The use of top-class materials, the extremely solid design and small sealing gaps guarantee a remarkable long service life, and worldwide these pumps are defining an unprecedented level of quality. A Fristam FKL pump represents the most perfect solution for reliable, maintenance-free pumping processes. | Optimum hygiene: Owing to the use of appropriate materials and a design which is devoid of dead zones Fristam circumferential piston pumps are entirely suitable for CIP and SIP. Economy Tailor made solutions: The new piston design and robustness allow use in systems and processes which in the past relied on other - more expensive - elaborate pumping and discharge systems. Easy maintenance: FKL pumps with their proven Fristam design fulfil the requirements of service-friendly, problem-free maintenance. Sizes of FKL | Q [l/hj | iSelection diagram FKL sizes | ||||||||||||
| 150000 | ||||||||||||||||
| 100000 | ||||||||||||||||
| 50 000 | FKL 600 | |||||||||||||||
| | ||||||||||||||||
| • 8 sizes • Discharge pressures up to 30 bar • Flow rates up to 120 m3/h | 10 000 | FKL 400 FKL 250 FKL 200 | ||||||||||||||
| FKL 150 FKL 100 FKL 50 FKL 25 | ||||||||||||||||
| 5 000 | ||||||||||||||||
| | ||||||||||||||||
| FKL 600 with bare shaft | 1000 | |||||||||||||||
| | ||||||||||||||||
| 0 | 10 000 | 20 000 | 30 000 | 40 000 | 50 000 | 60 000 | 70 000 | 80 000 | 90 000 | 100 000 t| [mPa s] | ||||||
| | ||||||||||||||||
