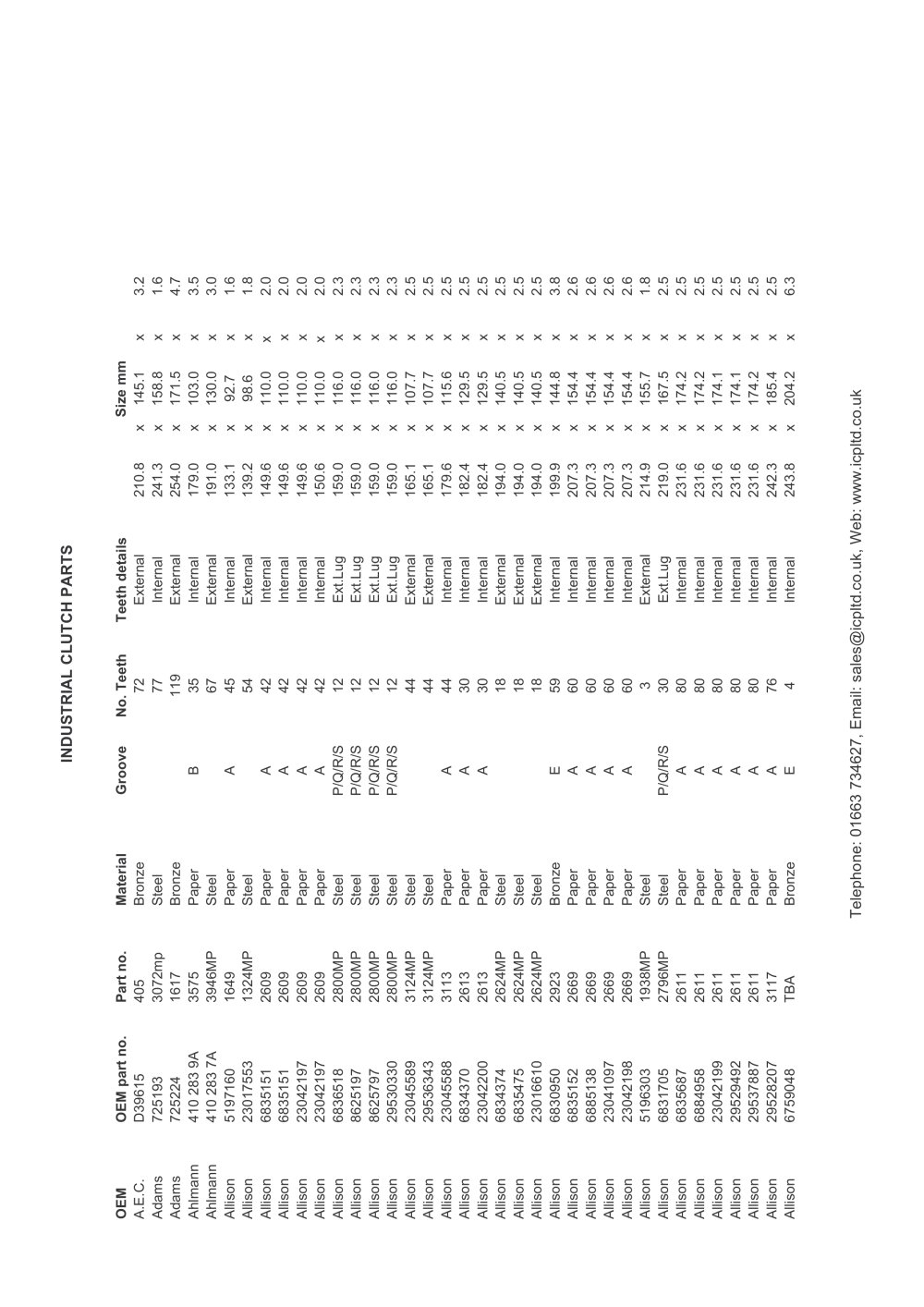

OEM	OEM part no.	Part no.	Material	Groove	No. Teeth	Teeth details			Size mm
A.E.C.	D39615	405	Bronze		72	External	210.8	x	145.1	X	3.2
Adams	725193	3072mp	Steel		77	Internal	241.3	x	158.8	X	1.6
Adams	725224	1617	Bronze		119	External	254.0	X	171.5	X	4.7
Ahlmann	410 283 9A	3575	Paper	B	35	Internal	179.0	X	103.0	X	3.5
Ahlmann	410 283 7A	3946MP	Steel		67	External	191.0	X	130.0	X	3.0
Allison	5197160	1649	Paper	A	45	Internal	133.1	X	92.7	X	1.6
Allison	23017553	1324MP	Steel		54	External	139.2	X	98.6	X	1.8
Allison	6835151	2609	Paper	A	42	Internal	149.6	X	110.0	X	2.0
Allison	6835151	2609	Paper	A	42	Internal	149.6	X	110.0	X	2.0
Allison	23042197	2609	Paper	A	42	Internal	149.6	X	110.0	X	2.0
Allison	23042197	2609	Paper	A	42	Internal	150.6	X	110.0	X	2.0
Allison	6836518	2800MP	Steel	P/Q/R/S	12	Ext. Lug	159.0	X	116.0	X	2.3
Allison	8625197	2800MP	Steel	P/Q/R/S	12	Ext. Lug	159.0	X	116.0	X	2.3
Allison	8625797	2800MP	Steel	P/Q/R/S	12	Ext. Lug	159.0	X	116.0	X	2.3
Allison	29530330	2800MP	Steel	P/Q/R/S	12	Ext. Lug	159.0	X	116.0	X	2.3
Allison	23045589	3124MP	Steel		44	External	165.1	X	107.7	X	2.5
Allison	29536343	3124MP	Steel		44	External	165.1	X	107.7	X	2.5
Allison	23045588	3113	Paper	A	44	Internal	179.6	X	115.6	X	2.5
Allison	6834370	2613	Paper	A	30	Internal	182.4	X	129.5	X	2.5
Allison	23042200	2613	Paper	A	30	Internal	182.4	X	129.5	X	2.5
Allison	6834374	2624MP	Steel		18	External	194.0	X	140.5	X	2.5
Allison	6835475	2624MP	Steel		18	External	194.0	X	140.5	X	2.5
Allison	23016610	2624MP	Steel		18	External	194.0	X	140.5	X	2.5
Allison	6830950	2923	Bronze	E	59	Internal	199.9	X	144.8	X	3.8
Allison	6835152	2669	Paper	A	60	Internal	207.3	X	154.4	X	2.6
Allison	6885138	2669	Paper	A	60	Internal	207.3	X	154.4	X	2.6
Allison	23041097	2669	Paper	A	60	Internal	207.3	X	154.4	X	2.6
Allison	23042198	2669	Paper	A	60	Internal	207.3	X	154.4	X	2.6
Allison	5196303	1938MP	Steel		3	External	214.9	X	155.7	X	1.8
Allison	6831705	2796MP	Steel	P/Q/R/S	30	Ext. Lug	219.0	X	167.5	X	2.5
Allison	6835687	2611	Paper	A	80	Internal	231.6	X	174.2	X	2.5
Allison	6884958	2611	Paper	A	80	Internal	231.6	X	174.2	X	2.5
Allison	23042199	2611	Paper	A	80	Internal	231.6	X	174.1	X	2.5
Allison	29529492	2611	Paper	A	80	Internal	231.6	X	174.1	X	2.5
Allison	29537887	2611	Paper	A	80	Internal	231.6	X	174.2	X	2.5
Allison	29528207	3117	Paper	A	76	Internal	242.3	X	185.4	X	2.5
Allison	6759048	TBA	Bronze	E	4	Internal	243.8	X	204.2	X	6.3
