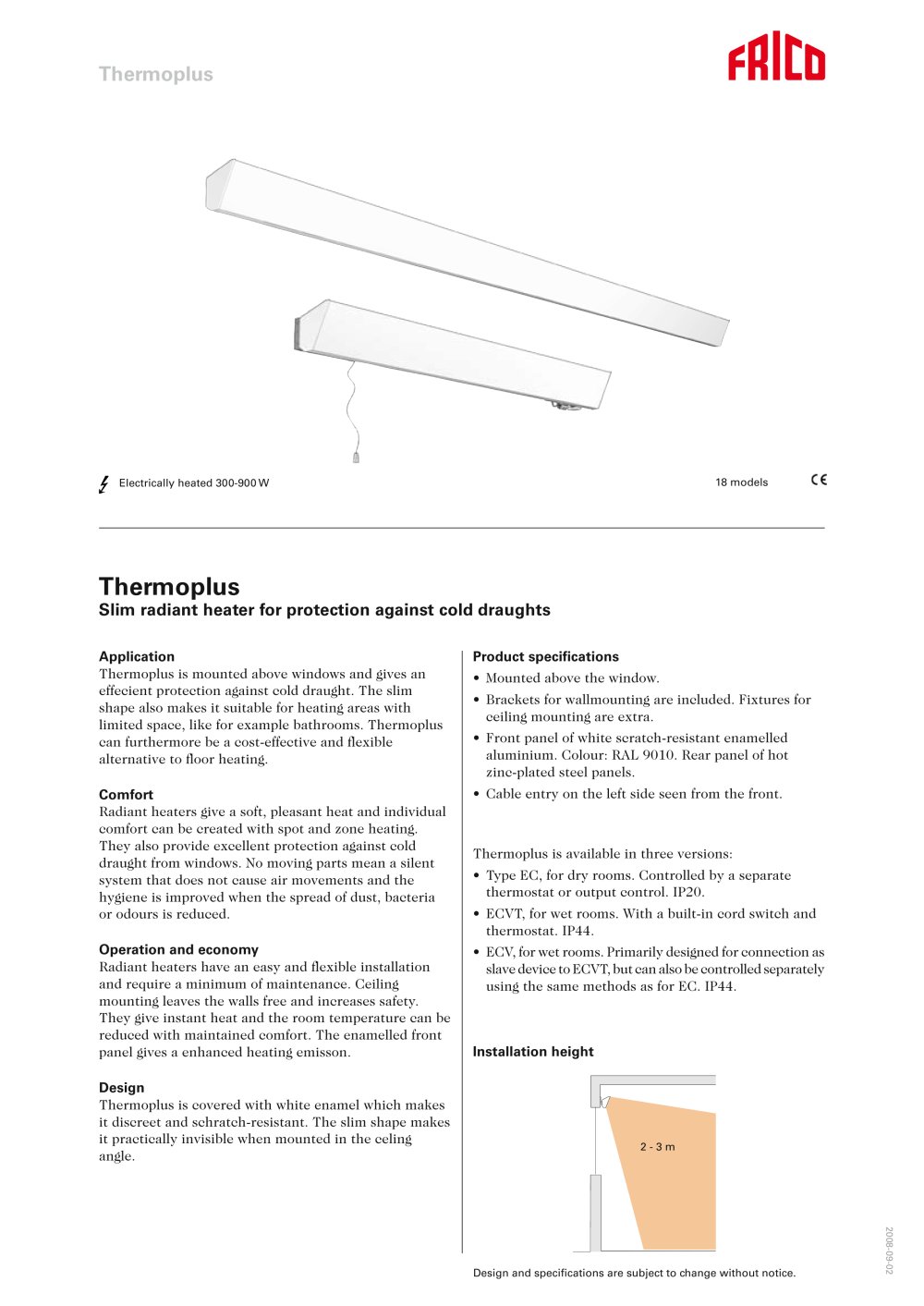

Thermoplus - FRICO - #1

Thermoplus is mounted above windows and gives an effecient protection against cold draught. The slim shape also makes it suitable for heating areas with limited space, like for example bathrooms. Thermoplus can furthermore be a cost-effective and flexible alternative to floor heating.

Radiant heaters give a soft, pleasant heat and individual comfort can be created with spot and zone heating. They also provide excellent protection against cold draught from windows. No moving parts mean a silent system that does not cause air movements and the hygiene is improved when the spread of dust, bacteria or odours is reduced.

Radiant heaters have an easy and flexible installation and require a minimum of maintenance. Ceiling mounting leaves the walls free and increases safety. They give instant heat and the room temperature can be reduced with maintained comfort. The enamelled front panel gives a enhanced heating emisson.

Thermoplus is covered with white enamel which makes it discreet and schratch-resistant. The slim shape makes it practically invisible when mounted in the celing angle.

• Mounted above the window.

• Brackets for wallmounting are included. Fixtures for ceiling mounting are extra.

• Front panel of white scratch-resistant enamelled aluminium. Colour: RAL 9010. Rear panel of hot zinc-plated steel panels.

• Gable entry on the left side seen from the front.

Thermoplus is available in three versions:

• Type EG, for dry rooms. Controlled by a separate thermostat or output control. IP20.

• EGVT, for wet rooms. With a built-in cord switch and thermostat. IP44.

• EGV, for wet rooms. Primarily designed for connection as slave device to EGVT, but can also be controlled separately using the same methods as for EG. IP44.

2 - 3 m

Design and specifications are subject to change without notice.
