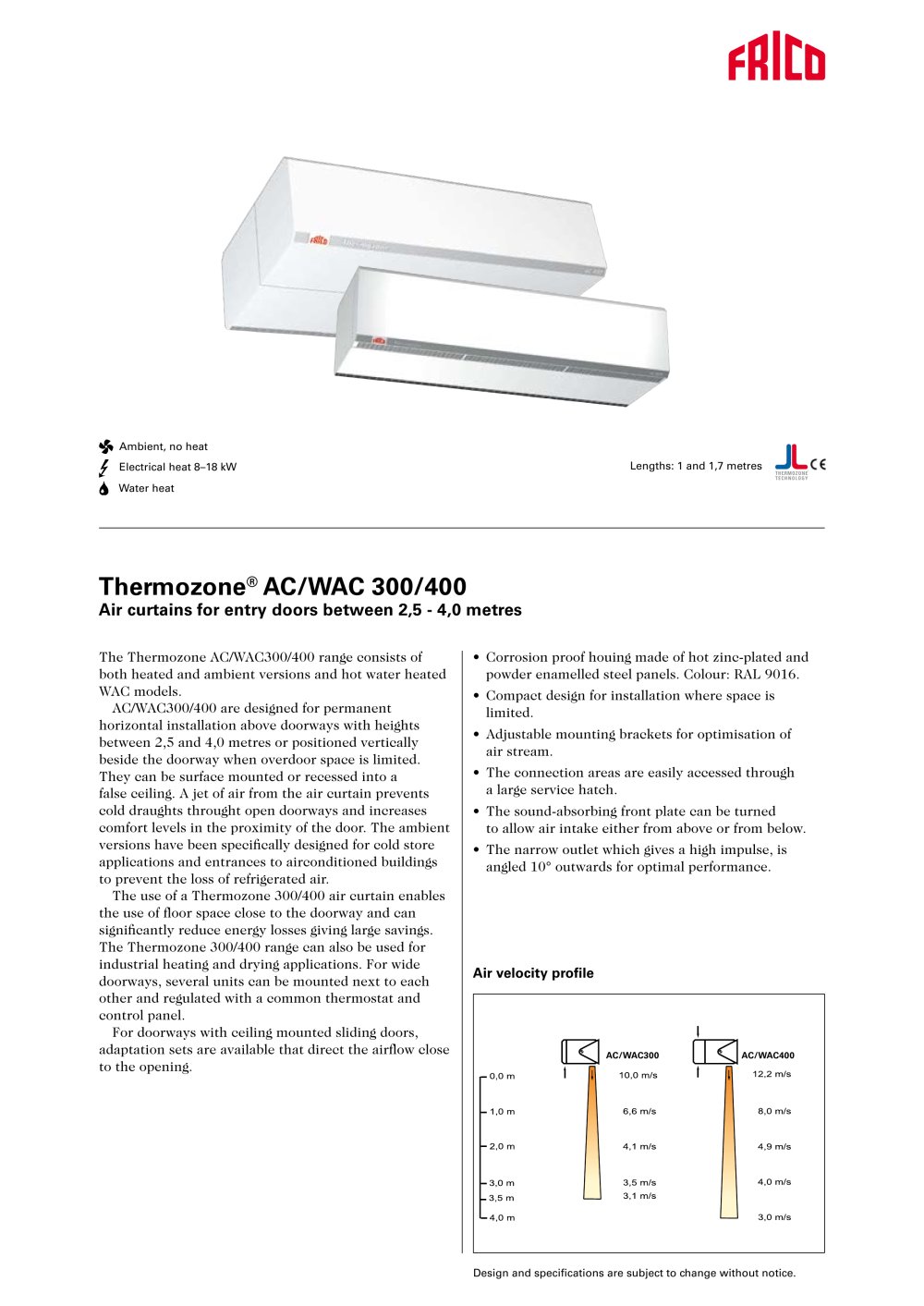

Air curtain WAC 400 - FRICO - #1

*j* Ambient, no heat

/Electrical heat 8-18 kW Lengths: 1 and 1,7 metres J ^ C €

£ Water heat

The Thermozone AC/WAC300/400 range consists of both heated and ambient versions and hot water heated WAC models.

AC/WAC300/400 are designed for permanent horizontal installation above doorways with heights between 2,5 and 4,0 metres or positioned vertically beside the doorway when overdoor space is limited. They can be surface mounted or recessed into a false ceiling. A jet of air from the air curtain prevents cold draughts throught open doorways and increases comfort levels in the proximity of the door. The ambient versions have been specifically designed for cold store applications and entrances to airconditioned buildings to prevent the loss of refrigerated air.

The use of a Thermozone 300/400 air curtain enables the use of floor space close to the doorway and can significantly reduce energy losses giving large savings. The Thermozone 300/400 range can also be used for industrial heating and drying applications. For wide doorways, several units can be mounted next to each other and regulated with a common thermostat and control panel.

For doorways with ceiling mounted sliding doors, adaptation sets are available that direct the airflow close to the opening.

• Corrosion proof houing made of hot zinc-plated and powder enamelled steel panels. Colour: RAL 9016.

• Compact design for installation where space is limited.

• Adjustable mounting brackets for optimisation of air stream.

• The connection areas are easily accessed through a large service hatch.

• The sound-absorbing front plate can be turned

to allow air intake either from above or from below.

• The narrow outlet which gives a high impulse, is angled 10° outwards for optimal performance.

3

3

Design and specifications are subject to change without notice.
